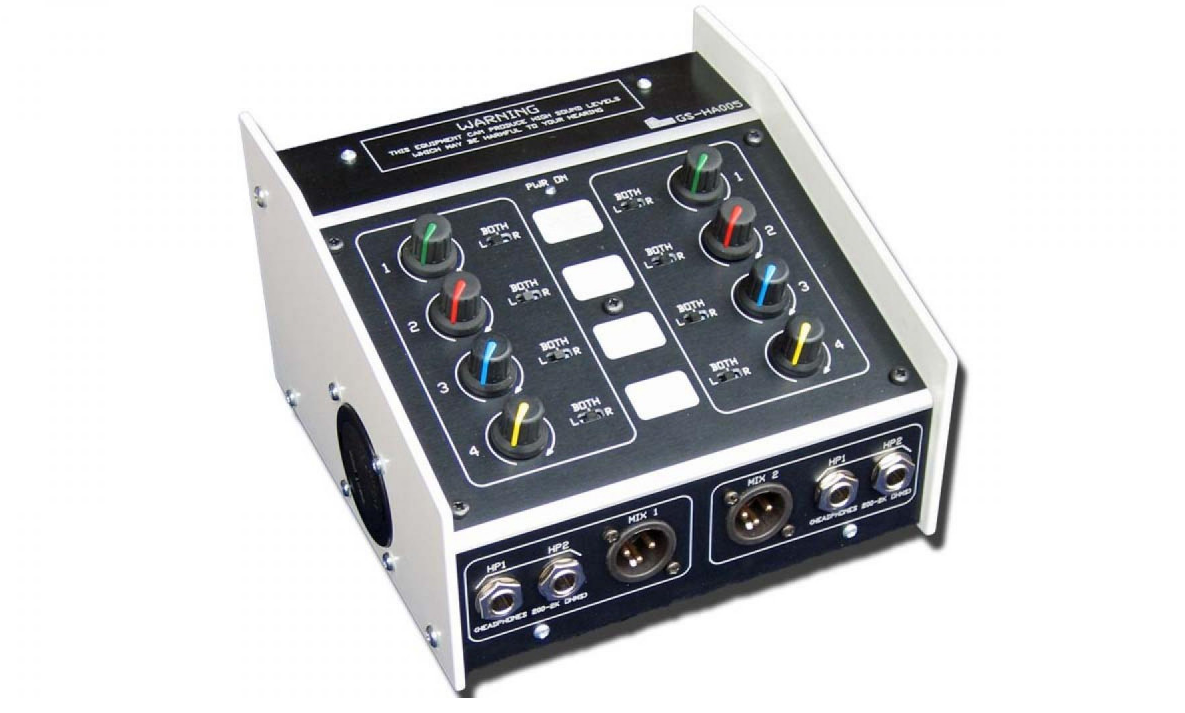

Glensound GS-HA005 Twin Headphone Amplifier With Four Inputs
Model: GS-HA005
About: Glensound GS-HA005 Twin Headphone Amplifier With Four Inputs
Glensound GS-HA005 is a robust, twin headphone amplifier specifically designed for outside broadcast and demanding live environments. Featuring two independent 4-channel mixers, it allows up to four transformer-balanced inputs to be routed and mixed separately to two headphone outputs, with dedicated volume and pan controls, making it ideal for monitoring in complex audio setups.
Features
- Two independent headphone amplifiers with four inputs each
- Transformer-balanced audio inputs for reliable signal integrity
- Loop-through XLR connectors for chaining multiple units
- Flexible input routing: switchable to left, right, or both headphone ears
- Two headphone outputs per amplifier (A/B gauge 6.35mm jacks)
- Balanced mix outputs of each 4-channel mixer for external routing
- Designed for headphone impedances from 200 Ω to 2 kΩ (supports 80 Ω with reduced battery life)
- Power via 2 x D-cell batteries or external 12–18V DC supply
- LED indicators for battery and external power sources
- Low battery warning indicator
- Compact and rugged for field or studio use
Specifications

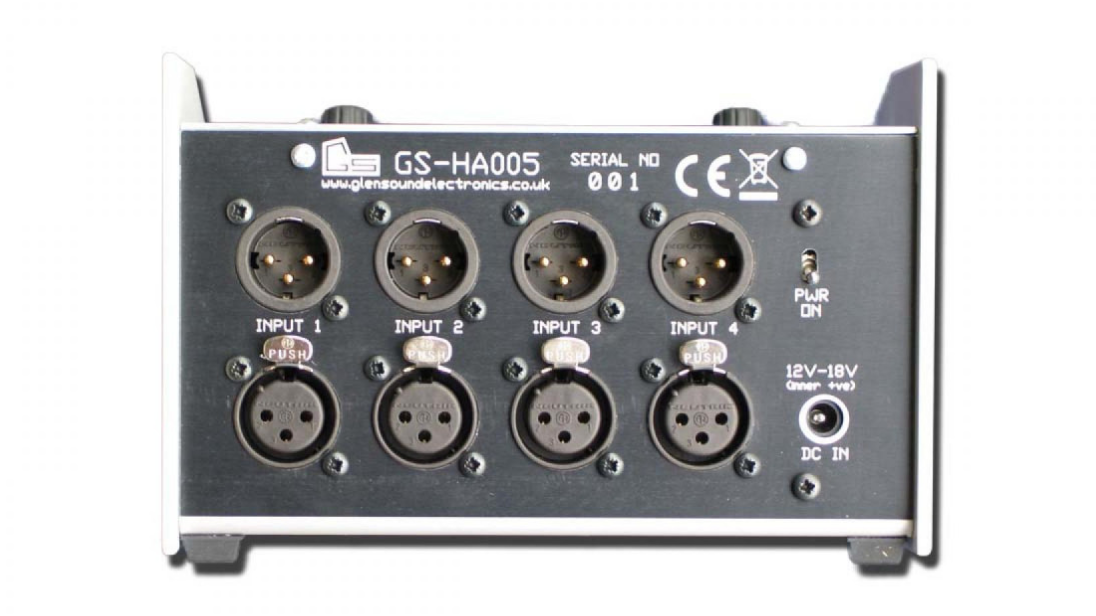

| Audio Inputs | 4 x XLR, transformer balanced, with loop-through |
|---|---|
| Headphone Outputs | 2 x independent stereo amps, each with 2 x A/B gauge 6.35mm jacks |
| Input Routing | Each input can be assigned to left, right, or both sides of headphone output |
| Mix Outputs | Balanced outputs for each 4-channel mixer |
| Headphone Impedance Range | 200 – 2000 Ohms (supports 80 Ohm with shorter battery life) |
| Power | 2 x D-cell batteries or 12–18V DC external input |
| Power Indicators | LED for external DC, LED for battery; low battery indicator |
| Dimensions | 160 mm (W) x 165 mm (D) x 104 mm (H) |
