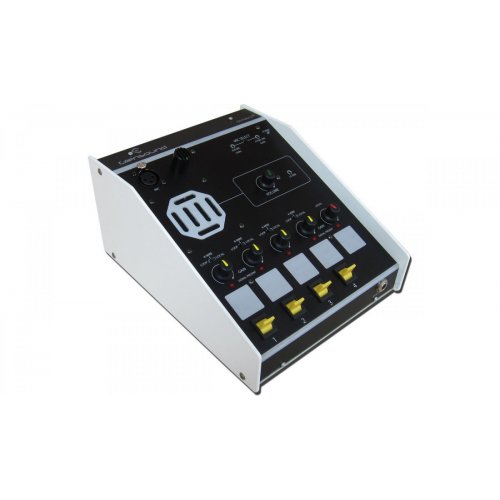

Glensound GS-FW012 ip 4 Circuit 4 Wire With Dante
Model: GS-FW012 IP
About: Glensound GS-FW012 ip 4 Circuit 4 Wire With Dante
Glensound GS-FW012 ip is a 4-circuit 4-wire audio interface with integrated Dante network connectivity, designed for high-quality broadcast communications. Ideal for use in studios, offices, and OB trucks, it enables seamless integration of analogue audio circuits with modern IP-based infrastructures.
Features
- Four independent 4-wire circuits connected to and from a Dante network
- All I/O handled via a single Dante/AES67-compliant Neutricon RJ45/CAT5 port
- Four top-panel inputs for speaker/headphone monitoring with individual level controls
- Four talkback outputs routed directly to the Dante network
- Each output features a 3-position lever key: off, push-to-talk, or locked on
- Outputs can be configured to loop the Dante input or route the local cue input
- Local cue input via XLR, routable to any 4-wire output, with independent volume control
- Internal or external mic input options with separate gain controls
- Built-in mic preamp with adjustable gain and integrated compressor/limiter for consistent audio quality
- 48kHz / 24-bit audio converters for low-noise, high-fidelity performance
- Compatible with Dante Controller software for easy configuration and signal routing
- Powered via internal switch-mode PSU or Power-over-Ethernet (PoE), with automatic redundancy
Specifications
| Audio Interface | Dante/AES67 compliant (via CAT5) |
|---|---|
| 4-Wire Circuits | 4 channels input/output to/from Dante network |
| Monitoring | Speaker or headphone, 4 inputs with level controls |
| Talkback Control | 3-position lever switch (off / PTT / latch) |
| Local Cue Input | XLR, routable to any 4-wire output, level adjustable |
| Microphone Input | Internal or external mic with gain control and limiter |
| Audio Conversion | 48kHz / 24-bit, high-bandwidth, low-noise |
| Power Supply | Internal 100–240 VAC or PoE (redundant capable) |
