Glensound VIRGIL OB Dante/ AES67 Headphone Amplifier
Model: VIRGIL OB
About: Glensound VIRGIL OB Dante/ AES67 Headphone Amplifier

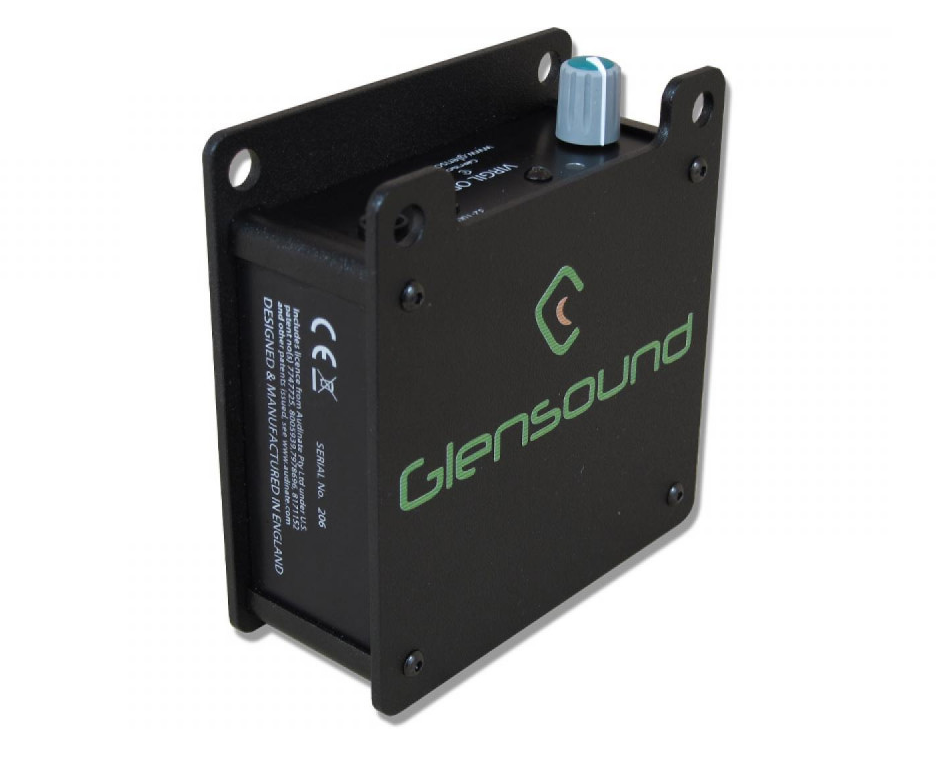

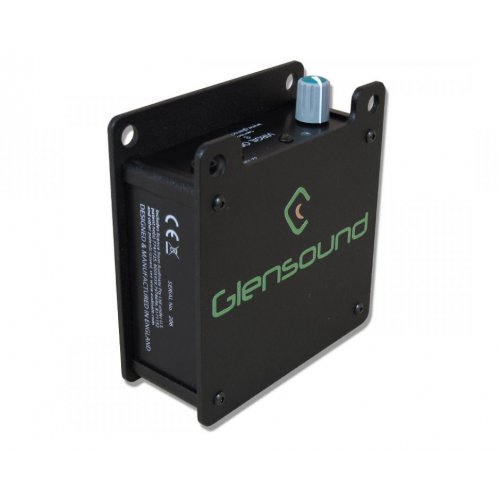

Glensound VIRGIL OB is a robust Dante®/AES67 network audio headphone amplifier designed for professional broadcast, live production, and studio applications. It receives two audio channels from a Dante or AES67 network, routing one to the left and the other to the right channel of the headphone amplifier, providing clear and reliable audio monitoring for users in demanding environments.
Features
- Dual Audio Channel Input: Receives two audio circuits from a Dante/AES67 network, routing one to the left and the other to the right headphone channel for effective stereo monitoring.

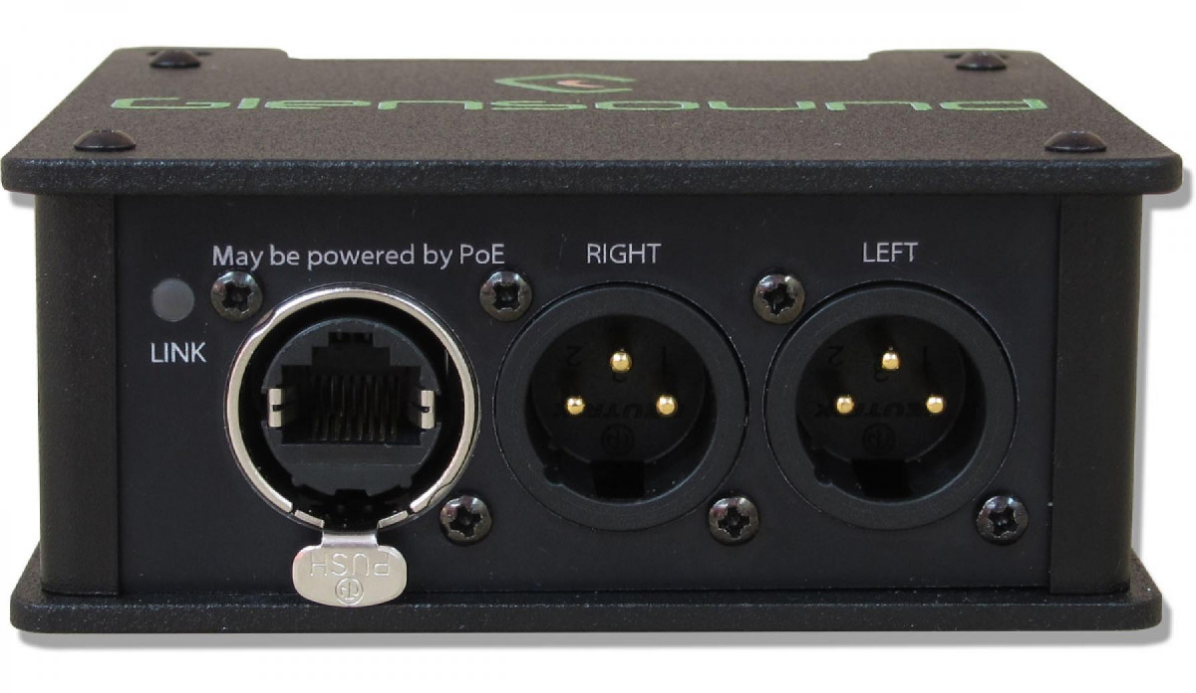

- Balanced Analog Outputs: Provides two balanced analog audio outputs via rear-panel XLR connectors, with a side-panel switch to select pre- or post-fade relative to the front panel volume control.
- Impedance Adaptive Headphone Amplifier: Automatically adjusts output levels to match headphone impedances ranging from 32 to 1000 ohms, ensuring consistent audio performance across various headphone types.
- Robust and Lightweight Design: Constructed with a durable yet lightweight aluminum casing, proven to withstand the rigors of on-the-road use, and includes a sturdy belt clip for secure attachment to personnel or infrastructure.

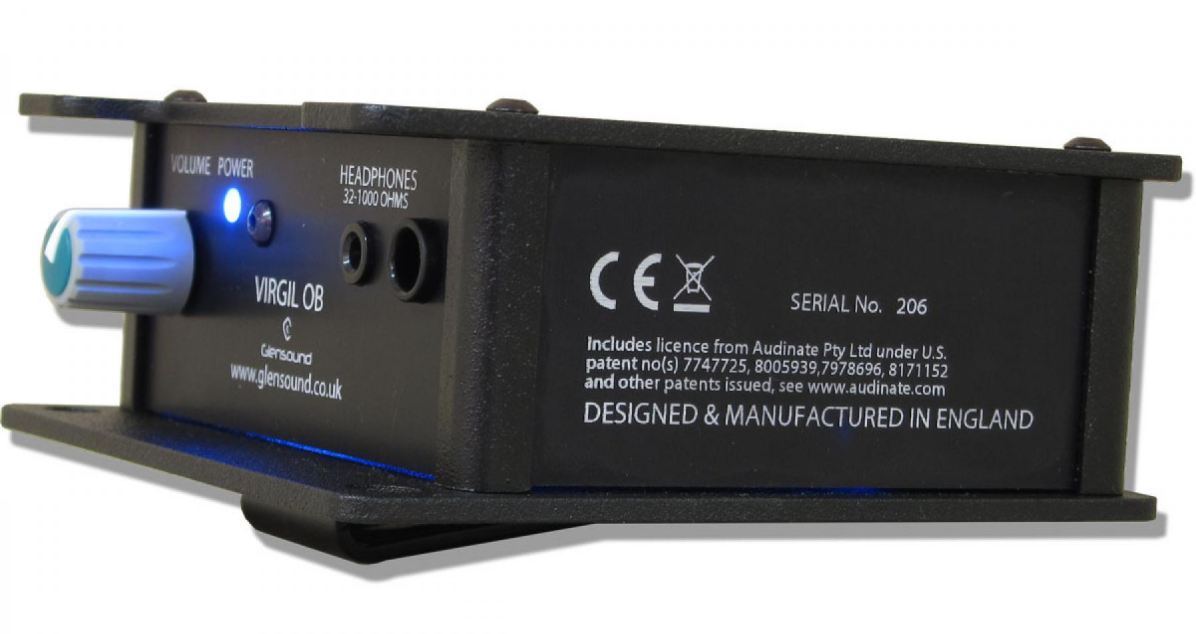

- Flexible Headphone Connectivity: Equipped with both 6.35mm (1/4") and 3.5mm stereo headphone jacks, accommodating a wide range of headphones and earpieces, including mono earpieces commonly used by television presenters.
- Power over Ethernet (PoE): Powered via PoE, simplifying deployment by eliminating the need for separate power supplies and reducing cable clutter.
- Firmware Upgradeable: Features a USB port dedicated to firmware upgrades, ensuring the device remains up-to-date with the latest features and improvements.
Specifications
| Headphone Impedance | 32 to 1000 Ohms (auto output level matching) |
|---|---|
| Maximum Headphone Output | +15.8dB into 600 Ohms |
| Headphone Frequency Response | ≥-0.1dB from 22Hz to 22kHz |
| Headphone Noise | -74dB at lineup (residual noise) |
| Headphone THD + Noise | 0.008% at 1kHz (ref = +8dBu) |
| Output Power | 1 Watt |
| Headphone Jacks | 1 x 6.35mm (1/4") and 1 x 3.5mm stereo sockets |
| Balanced Output Level | +18dBu |
| Power Input | Power over Ethernet (PoE) |
| Dimensions (H x W x D) | 42 x 101 x 103 mm |
| Weight | 200g |
