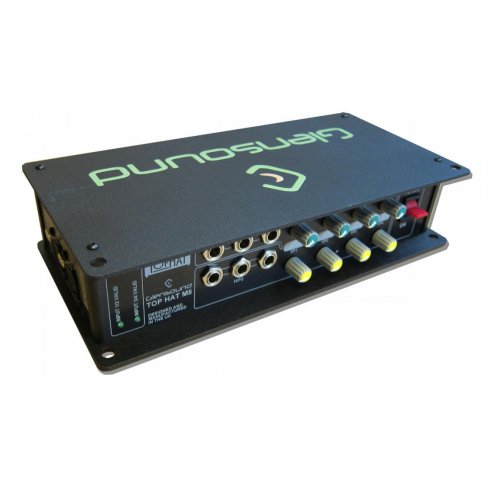

Glensound Top Hat M5 Battery Powered Headphone Amplifier with AES3 & Talkback
Model: Top Hat M5
About: Glensound Top Hat M5 Battery Powered Headphone Amplifier with AES3 & Talkback
Glensound Top Hat M5 is a compact and versatile mixing headphone amplifier designed for professional broadcast and live production environments. It offers flexible monitoring capabilities with dual headphone amplifiers, multiple inputs, and integrated talkback functionality, ensuring clear and reliable audio communication.
Features
- Dual Headphone Amplifiers: Two independent headphone amplifiers, each with three 6.35mm jack outputs, allowing simultaneous monitoring for up to six users.
- Four-Input Mixer: Each headphone amplifier can create a custom mix from four common inputs, with individual level controls for precise audio balancing.
- Analog and AES3 Inputs: Supports four balanced analog inputs and two stereo AES3 digital inputs, with selectable input sources for each headphone amplifier.
- Integrated Talkback Circuit: Features an XLR input for a talkback microphone with adjustable gain, compressor/limiter, and a robust front-panel lever switch for momentary or latching operation.
- Looping Capability: Equipped with RJ45 connections for looping audio between multiple units, facilitating scalable setups in complex environments.
- Flexible Power Options: Operates on three D-cell batteries or optional external DC power, with a low-power LED indicator to monitor battery status.
Specifications
| Headphone Outputs | 6 x 6.35mm jack sockets (3 per amplifier) |
|---|---|
| Analog Inputs | 4 x balanced XLR |
| AES3 Inputs | 2 x stereo |
| Talkback Mic Input | 1 x XLR with adjustable gain and compressor/limiter |
| Looping Connections | 2 x RJ45 for audio linking |
| Power Supply | 3 x D-cell batteries or external DC power |
