Glensound GS-CU004 Microphone & Headphone Amp

About: Glensound GS-CU004 Microphone & Headphone Amp

GS-CU004 Overview:

Inputs:

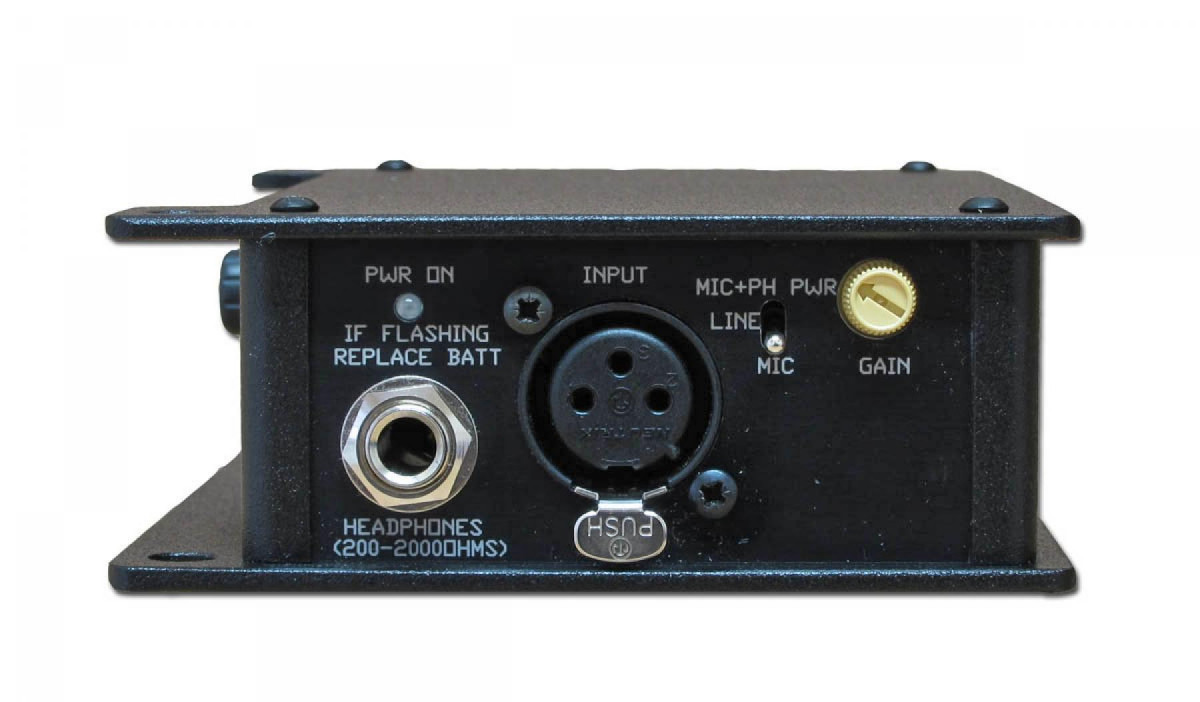

The main input is switchable between mic, mic+12v phantom power, and line. The input has an adjustable gain control to meet a wide range of dynamic, condenser, and ribbon microphones. The input passes through a broadcast quality compressor/limiter circuit designed to manage the peaks of excited commentary.

Outputs/Talkback:

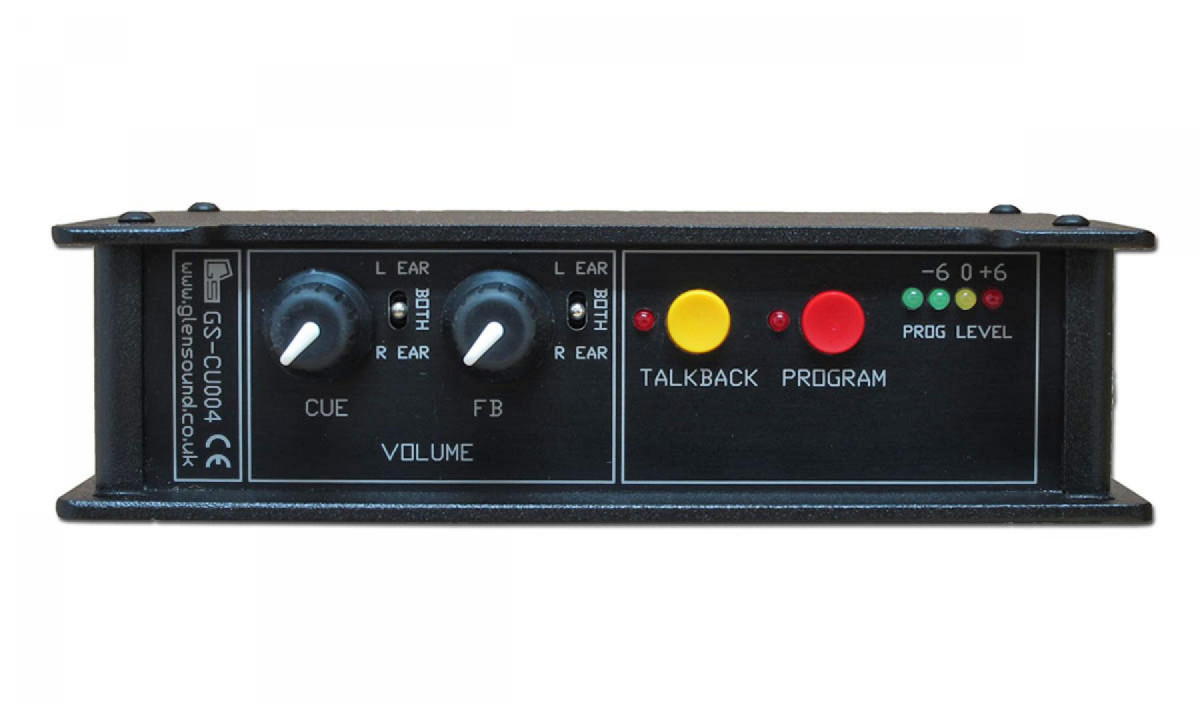

There are two output circuits. One is used as the main programme audio, the other as a talkback circuit. There are separate button controls for each of these using Config+. They can each be independently configured for latching or momentary, with the programme button also having a 'cough' feature. Both outputs are transformer balanced.

Monitoring:
There are two monitoring inputs each with independent level control. Each of these inputs can be switched from the left ear, right ear, or both ears. There is a 4 LED level meter from -6 to +6 dB.

Power:
Battery power is from 1 x 9v PP3, or an external DC power supply.The GS-CU004 is often used as a remote link to the main commentary unit. It is favoured by pitch side interviewers, and is popular in combination with wireless systems.

• Complete commentary functionality in a small belt pack format
• Main mic/line input is electronically balanced on XLR with adjustable gain control
• Input is switchable from line, mic, or mic + 12v phantom power
• Headphone output on 6.35mm jack socket

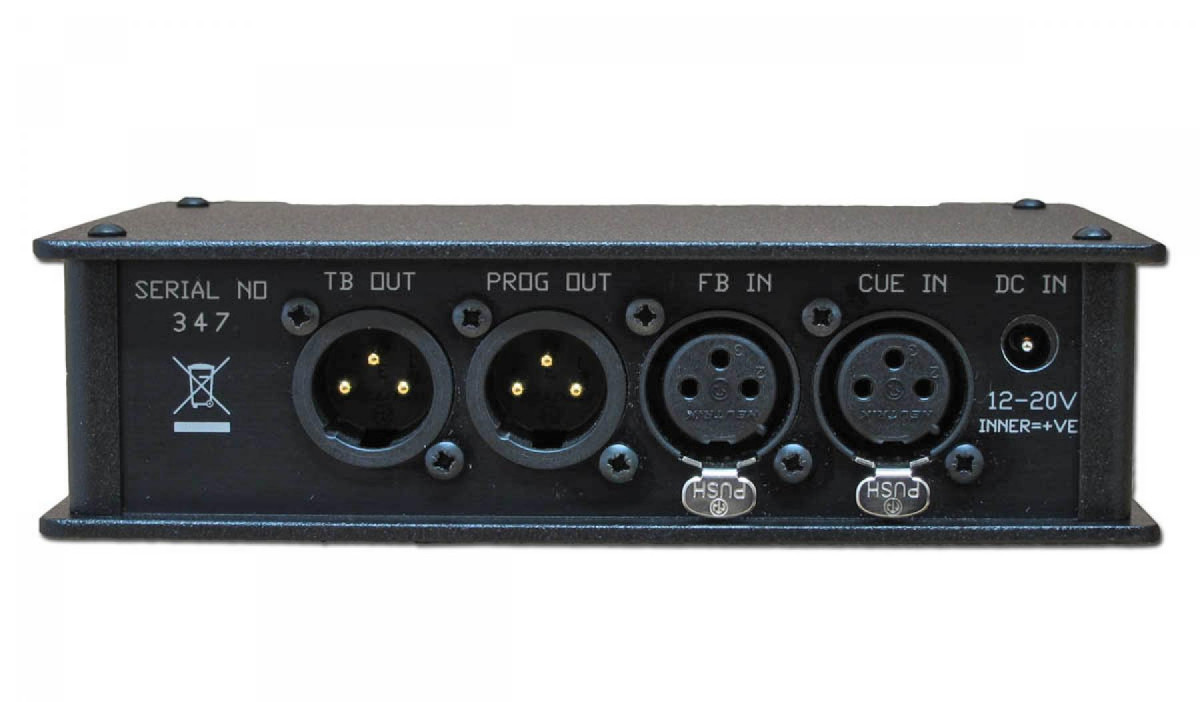

• Two outputs: one for main programme audio, one for talk back circuit; both are transformer balanced
• Independently configurable buttons for both outputs using Config+: latching, momentary or lazy
• Two inputs for headphone monitoring on XLR, both with adjustable level
• Headphone inputs have left/both/right switching
• Belt clip
• Battery powered via 1 x 9v PP3, or via external 12v DC
• Maximum Dimensions (excluding belt clip): 153 mm x 104 mm x 43mm
• Weight (excluding battery): 355g
