FiiO BTR13 Bluetooth DAC and Headphone Amplifier - Black

About: FiiO BTR13 Bluetooth DAC and Headphone Amplifier - Black

BTR13 Bluetooth DAC and Headphone Amplifier

• Acts as a computer sound card/Bluetooth decoder/sound dongle for phones
• Supports HD Bluetooth codec LDAC
• Dual CS43131 fully balanced
• Powerful 220mW output
• Global PEQ
• 3.5 + 4.4 headphone outs
• 0.96-inch large color IPS
• Patented car mode
• Supports mics and in-line control

Lightweight and high performance

• Dual high-res Bluetooth/USB sound card modes - Versatile portable DAC and headphone amp
• Seamless one-click switching between modes - Computer sound card/Bluetooth decoder/ sound dongle for phones in one device
• Dual CS43131 fully balanced - Each channel processed by one CS43131 DAC
• Patented car mode - Turns on and off with the car, enjoy high-quality music anywhere
• Global PEQ - Use it well to make it sound well
• Independent headphone amp power supply - Explosive power, balanced output power increased by 282% to 220mW
• 3.5mm+4.4mm headphone - outs Commonly seen connectors, making it easier to use
• 0.96-inch large color IPS display - English and Chinese support, to better fit you
• All-around in-line controls - Supports CTIA standard for in-line controls, conveniently control music/calls

Various use cases, all handled by one device - Computer sound card/Bluetooth decoder/sound dongle for phones

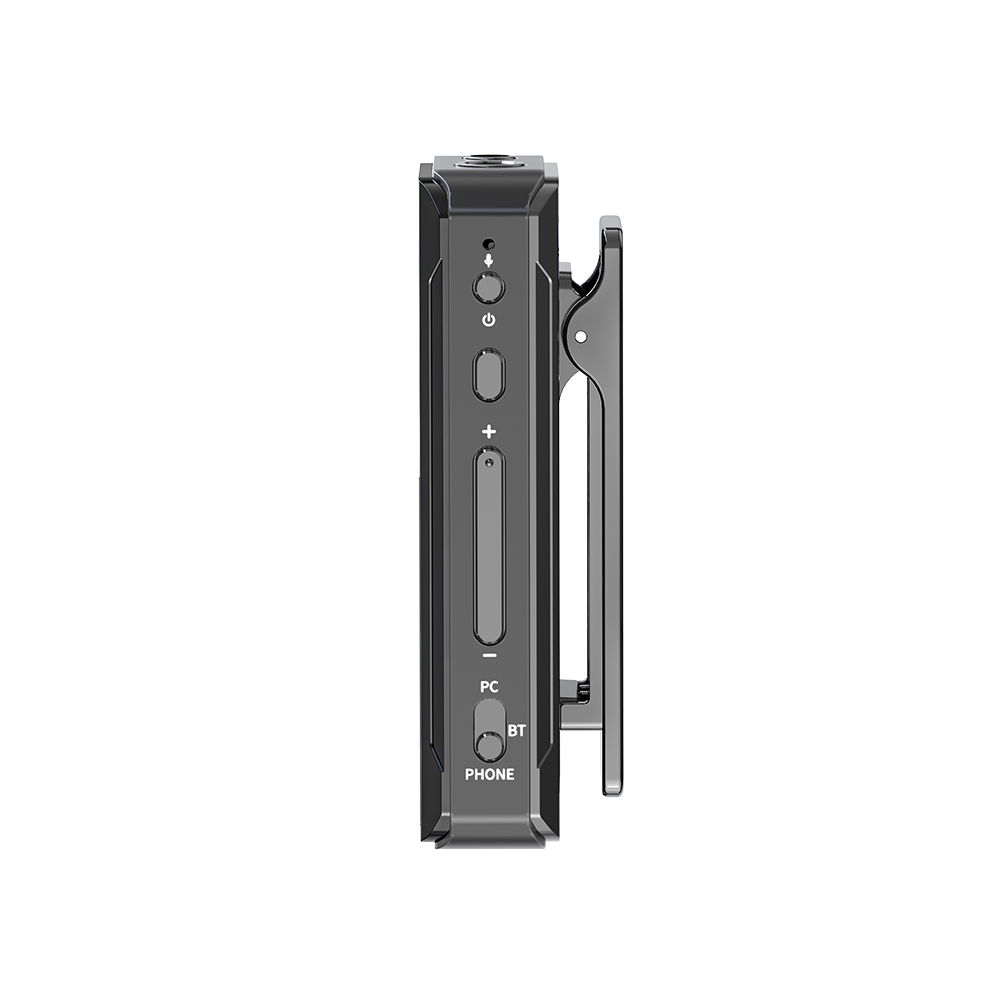

With the three-position toggle switch,conveniently switch between the PC/BT/PHONE modes for the BTR13 to work as a computer sound card, Bluetooth decoder, and audio dongle, respectively. Simply use the BTR13 for various use cases.

• PC: Connect to a computer for use as a USB DAC and headphone amp, powered completely by the computer.
• BT: Bluetooth decoder and headphone amplifier, powered by the internal battery, can be charged by USB.
• PHONE: Connect to a phone as a USB DAC audio dongle, being powered by its internal battery.

Global PEQ - Use it well to make it sound well

Thanks to FIIO’s self-developed adjustment algorithm, get access to a high-quality PEQ easily adjustable through the app or the web*!

• Adjust the sound to suit your tastes
• Use FIIO presets or custom adjustments uploaded online
• One-click import of adjustments suited to headphones from various major brands
  • *PEQ adjustments when being used as a Bluetooth decoder or USB DAC are done by the QCC5125’s built-in DSP, allowing it to support codecs like LDAC and 96kHz PEQ adjustment. *To access the web version of the PEQ, please go to the BTR13 FAQ section of the official FIIO website and follow the setup instructions from there.

Supports sampling rates of 96k - Dual high-res Bluetooth/USB sound card modes

The BTR13 is a portable DAC/amp suitable for various use cases. It uses the Qualcomm QCC5125 Bluetooth chip and supports Bluetooth codecs like LDAC*, allowing it to support high- resolution audio transmission up to 96k in both Bluetooth and USB DAC modes, ensuring you can enjoy high-fidelity music across various devices.

• *Bluetooth 5.1, supports SBC/aptX/aptX LL/aptX Adaptive/ aptX HD/LDAC

3.5mm+4.4mm - Commonly used jacks, more convenience

The BTR13 has been upgraded to the more commonly-found 4.4mm balanced headphone jack, which offers more reliable and durable connections compared to the 2.5mm balanced headphone jack of the BTR3K. It also comes with a 3.5mm single-ended headphone jack, making it compatible with the various headphones you already have.

Fully balanced audio - Dual high-end CS43131

Each channel is separately handled by a dedicated high-end Cirrus Logic CS43131 DAC. This effectively reduces crosstalk and allows for higher quality and purer sound.

Independent headphone amplifier power supply - Unleashing immense force

An independent power supply system, with low noise and capable of high current output, was designed specifically for the built-in amplifier of the CS43131 DAC. This significantly boosts the balanced output power of the BTR13 by 282% compared to the BTR3K up to 220mW - making it easily capable of meeting any portable audio needs.

0.96-inch large color IPS display - Full of information, easy to operate

One major feature is the large bilingual (Chinese and English) display, which also features a newly upgraded colorful interface. This allows for the display of more detailed information, making it easier for you to intuitively understand the device’s status and adjust various functions.

Patented card mode High-quality music on the go

The car mode not only allows the BTR13 to conveniently turn on and off with your car, but it also allows you to easily improve the sound quality of your car’s audio – making every trip full of high-quality sound goodness.

All-around in-line controls - Total control at your fingertips

The 3.5mm jack supports the CTIA standard of in-line controls. Not only can you use the microphone on your headphones, you can also play/pause/adjust the volume using the controls on your headphones’ cable.

Vibrant, smart and convenient

• Double the color choices, double the excitement - Choose between black/blue, both calm and elegant
• Lightweight and comfortable, disappears like a shadow - At only 28.6g, it is even lighter than a pen

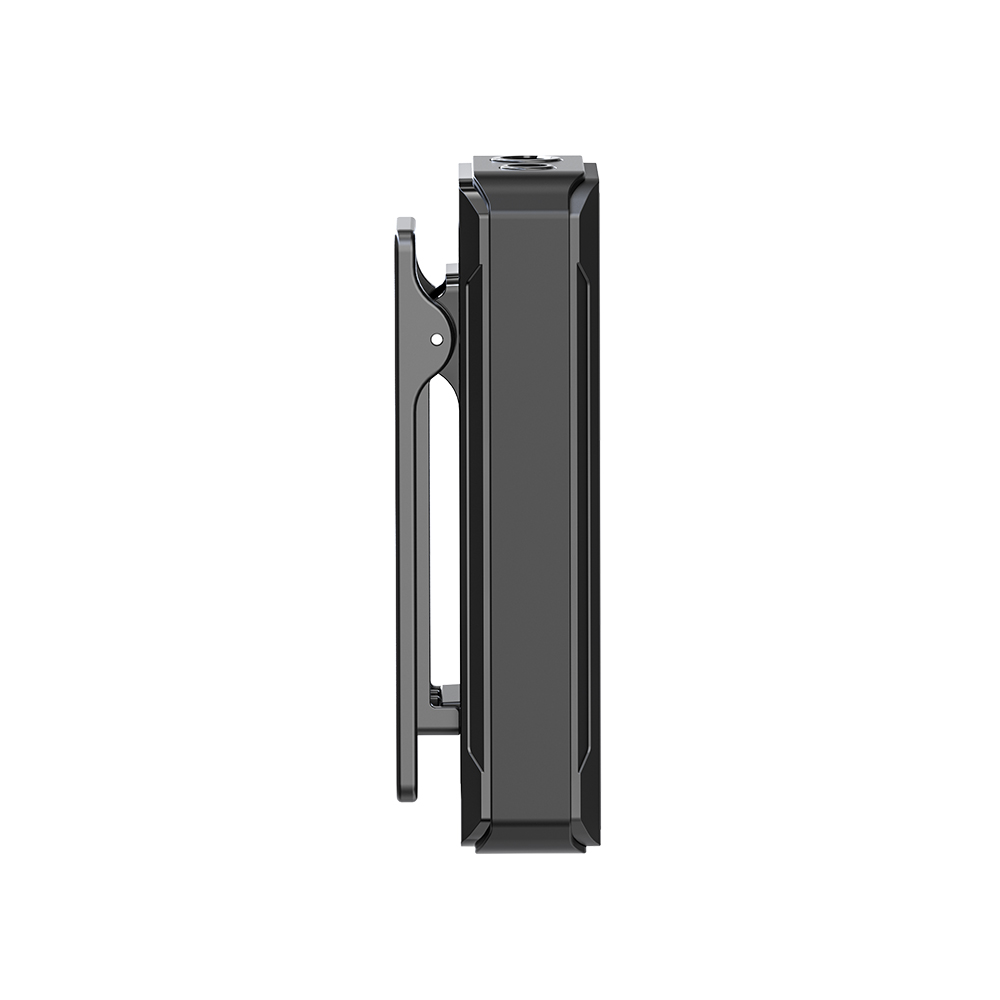

• Back-clip included, easier to carry around - The clip allows you to easily carry it, more freedom on the streets
• App control supports, feature upgrades - Quickly adjust various functions, OTA upgrades
• Acts as a computer sound card, noticeable sound upgrade - Supports high-resolution audio formats, for high-quality sound
• Driver-free mode, plug and play - Supports UAC1.0 mode, perfect for the PS5, Switch and other devices

Specifications

• Bluetooth chip: QCC5125 (CPU+DSP dual-core architecture)
• DAC: CS43131*2
• Bluetooth version: 5.1
• Bluetooth codecs supported: SBC/aptX/aptX, LL/aptX. Adaptive/aptX HD/LDAC
• USB DAC: Driver-free PCM 96k
• Display: 0.96-inch 80×160 color IPS
• Headphone outputs: Single-ended 3.5mm + balanced 4.4mm
• In-line controls: Supports CTIA standard; play/pause/volume controls supported
• Dimensions: About 63.2x30x18.8mm including back clip
• Weight: About 28.6g
• Charging time: ≤2 hours
• Battery life: About 8 hours
• Output power 1: L+R≥100mW+100mW (32Ω SE, THD+N＜1%)
• Output power 2: L+R≥10mW +10mW (300Ω SE, THD+N＜1%)
• Output power 3: L+R≥220mW+220mW (32Ω BAL, THD+N＜1%)
• Output power 4: L+R≥55mW+55mW (300Ω BAL, THD+N＜1%)
• Frequency response: 20Hz~40kHz（-3dB）
• Signal-to-noise ratio: ≥128dB(A-weighted)
• Noise floor: PO＜1μV (A-weighted); BAL＜1μV (A-weighted)
• Output impedance: <0.6Ω (32Ω load)
• THD+N: <0.0018%(1kHz/-4dB@32Ω)

What's in the Box

• 1x BTR13
• 1x Screen Protector (Pre-installed)
• 1x USB Type C to C data cable
• 1x Lanyard
• 1x Quick start guide
• 1x Warranty Card
