Glensound GS-FW023 Versatile Single Channel Four Wire Desktop Unit
Model: GS-FW023
About: Glensound GS-FW023 Versatile Single Channel Four Wire Desktop Unit

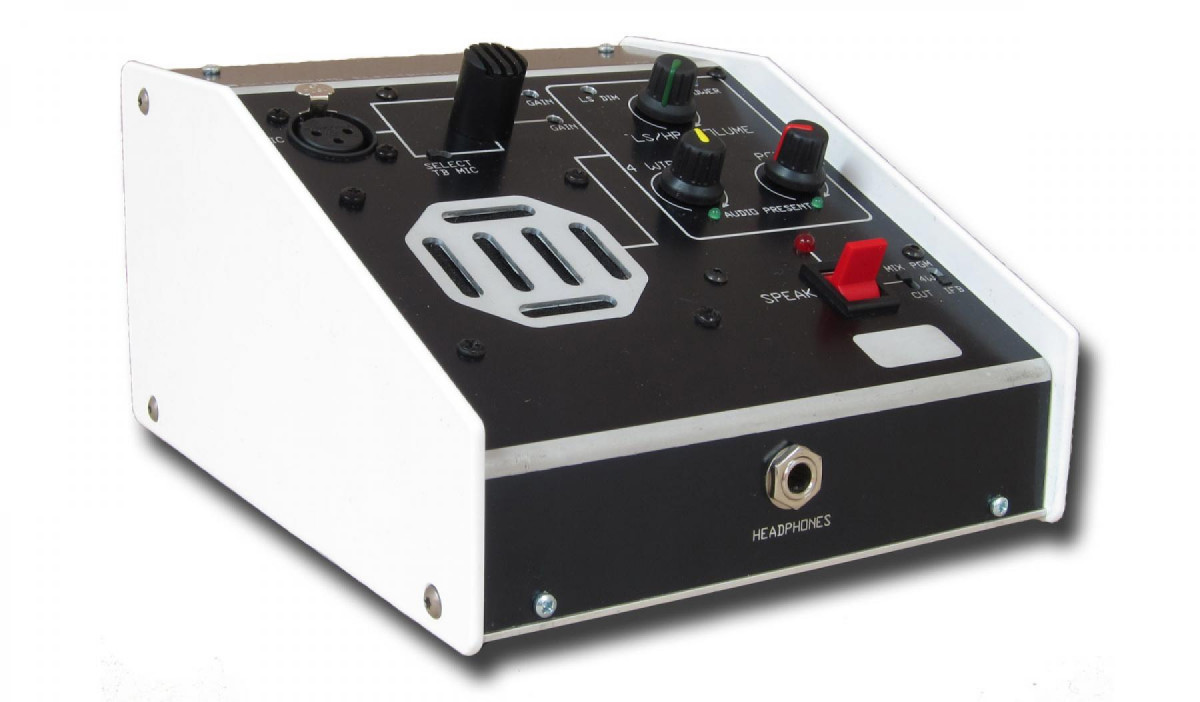

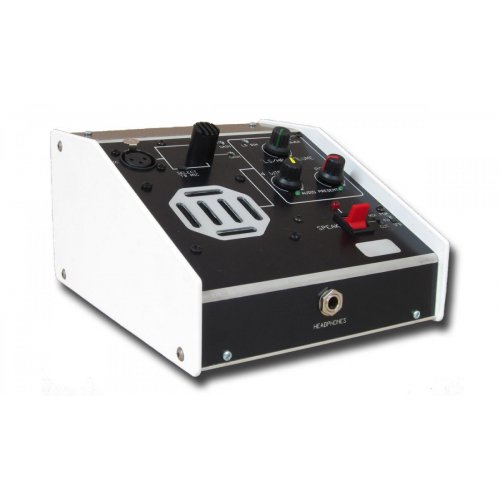

Glensound GS-FW023 is a compact, single-channel 4-wire desktop unit designed as a versatile replacement for the legacy GS-FW007. With transformer-balanced I/O, integrated program monitoring, and a dedicated mic channel with limiter, the GS-FW023 is ideal for modern broadcast communications setups requiring IFB routing, remote cueing, and flexible talkback control.
Features
- Single 4-wire circuit with transformer-balanced I/O
- Dedicated program audio input (transformer balanced)
- Front panel or external microphone input with gain control
- Built-in compressor/limiter on microphone input for consistent level control
- Lever key for mic activation with relay output when mic is live
- Audio presence LEDs for both 4-wire and program inputs
- Front panel loudspeaker for monitoring
- 6.35mm headphone jack mutes loudspeaker when connected
- Overall volume control for headphone and loudspeaker
- Adjustable loudspeaker dim level on mic activation
- Selectable routing: 4-wire and/or program inputs to 4-wire output
- Selectable mix or cut behavior of mic with 4-wire/program audio

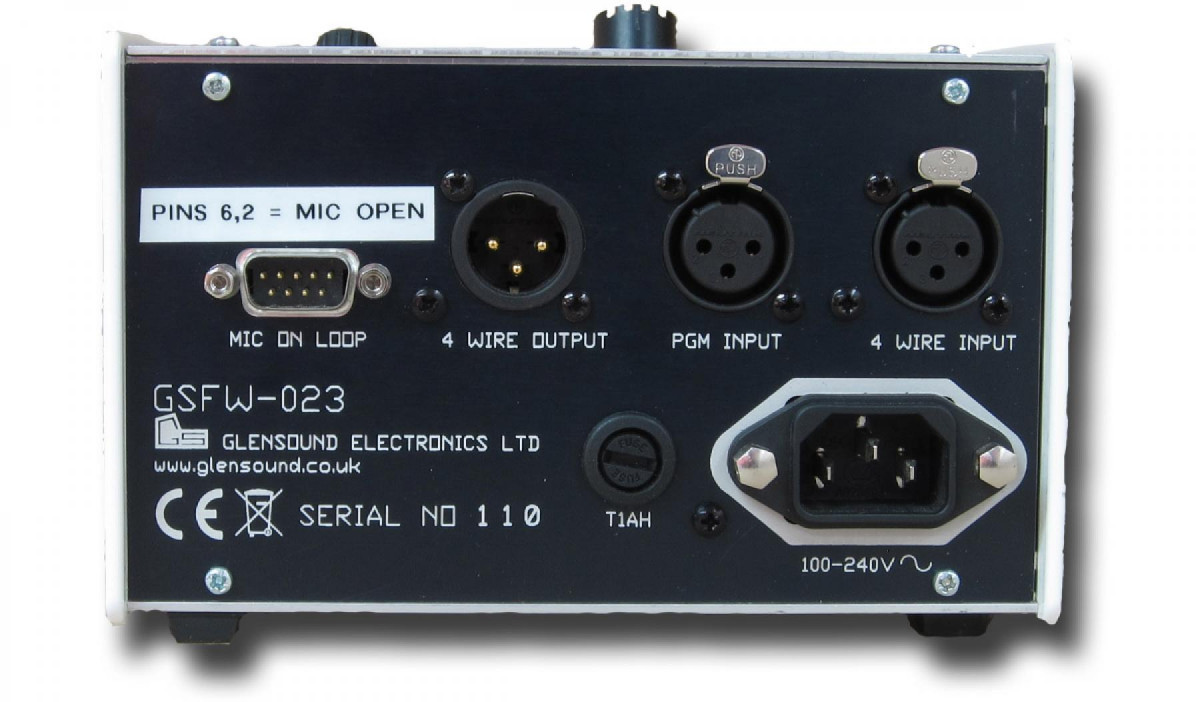

- Rear panel XLR connectors for all audio connections
- Internal switch-mode power supply (100–250 VAC)
Specifications
| 4-Wire Circuit | 1 x input/output, transformer balanced |
|---|---|
| Program Input | 1 x transformer-balanced input with gain control |
| Microphone Input | Front panel electret mic or rear XLR, both with gain and limiter |
| Monitoring | Front panel speaker and 6.35mm headphone jack (LS cut when HP connected) |
| Volume Controls | Separate gain controls for inputs; overall LS/HP volume control |
| Talkback Key | Lever-style switch with momentary/latching operation |
| Relay Output | Active when mic is live |
| Routing Options | Mix or cut mic with 4-wire and/or program feed to output |
| Power Supply | 100–250 VAC internal switch-mode PSU |
| Dimensions (W x H x D) | 190 x 98 x 180 mm |
