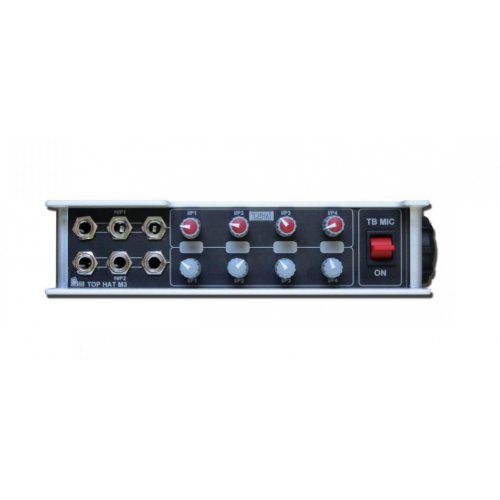

Glensound Top Hat M3 Compact 4-Input Headphone Amplifier w/ Monitoring
Model: Top Hat M3
About: Glensound Top Hat M3 Compact 4-Input Headphone Amplifier w/ Monitoring
Glensound Top Hat M3 is a compact mixing headphone amplifier designed to provide flexible monitoring solutions in professional broadcast and live production environments. It features dual headphone amplifiers, each capable of delivering custom mixes from four input sources, and includes integrated talkback functionality, ensuring clear and reliable audio communication.
Features
- Dual Headphone Amplifiers: Two independent headphone amplifiers, each with three 6.35mm jack outputs, allowing simultaneous monitoring for up to six users.
- Four-Input Mixer: Each headphone amplifier can create a custom mix from four balanced XLR inputs, with individual level controls for precise audio balancing.
- Master Output: Provides a master output on XLR, switchable between MIX 1 and MIX 2, facilitating integration with other audio equipment.
- Integrated Talkback Circuit: Features an XLR input for a talkback microphone with adjustable gain, compressor/limiter, and a sturdy front-panel lever switch offering both momentary and latching operation.
- Looping Capability: Equipped with two RJ45 connections for looping audio between multiple units, enabling scalable setups using standard CAT5 cables.

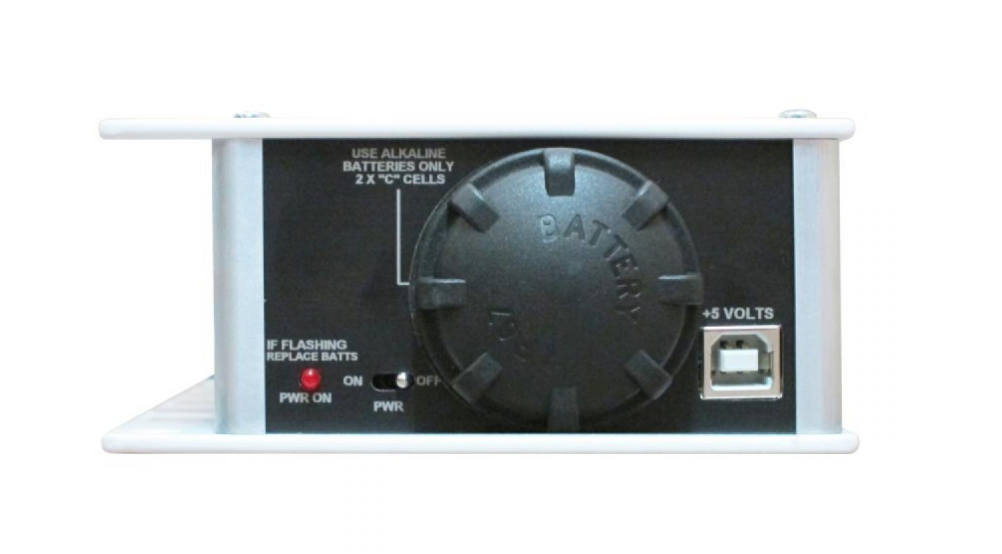

- Flexible Power Options: Operates on two C-cell batteries or optional external DC power, with a low-power LED indicator to monitor battery status.
Specifications
| Headphone Outputs | 6 x 6.35mm jack sockets (3 per amplifier) |
|---|---|
| Analog Inputs | 4 x balanced XLR |
| Master Output | 1 x XLR, switchable between MIX 1 and MIX 2 |
| Talkback Mic Input | 1 x XLR with adjustable gain and compressor/limiter |
| Looping Connections | 2 x RJ45 for audio linking |
| Power Supply | 2 x C-cell batteries or external DC power |
