Glensound GS-FW029 12 Channel Desktop Talkback Unit
Model: GS-FW029
About: Glensound GS-FW029 12 Channel Desktop Talkback Unit

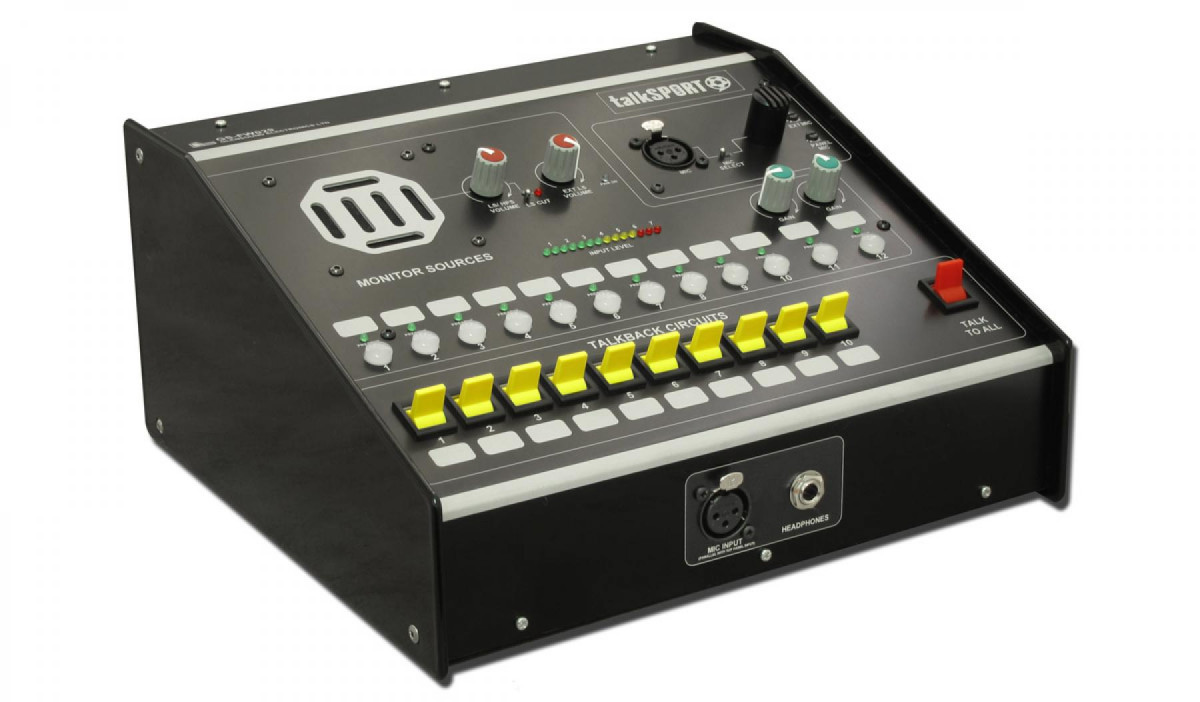

Glensound GS-FW029 is a 12-channel desktop talkback unit designed for professional broadcast environments. Originally developed for talkSPORT, it features 10 talkback channels, 2 dedicated monitoring channels, local and external loudspeaker outputs, and a versatile sidetone monitoring system—making it ideal for busy production communications.
Features
- 12 input channels via 2 x 25-way D connectors
- Channels 1–10 fixed at 0 dB; channels 11–12 adjustable (-20 dBu to +10 dBu)
- 10 talkback outputs with shared compressor/limiter
- 1 global talkback output
- 2 monitoring-only channels (11 and 12)
- LED signal present indicators on each channel
- Push-button routing from input to output per channel
- Selectable sidetone monitoring (-10 dB) via headphone output
- 14-segment LED PPM meter for audio level monitoring
- Selectable channel monitoring via latchable white buttons
- Integrated local loudspeaker with volume control
- Rear-panel XLR output for external loudspeaker monitoring
- Local and external loudspeakers can be set to dim or cut on talkback
- External loop closure for chaining multiple units
- Local panel mic or external gooseneck mic via 3-pin XLR with independent gain controls
- Mic selection toggle switch
- 100–240V AC mains powered
Specifications

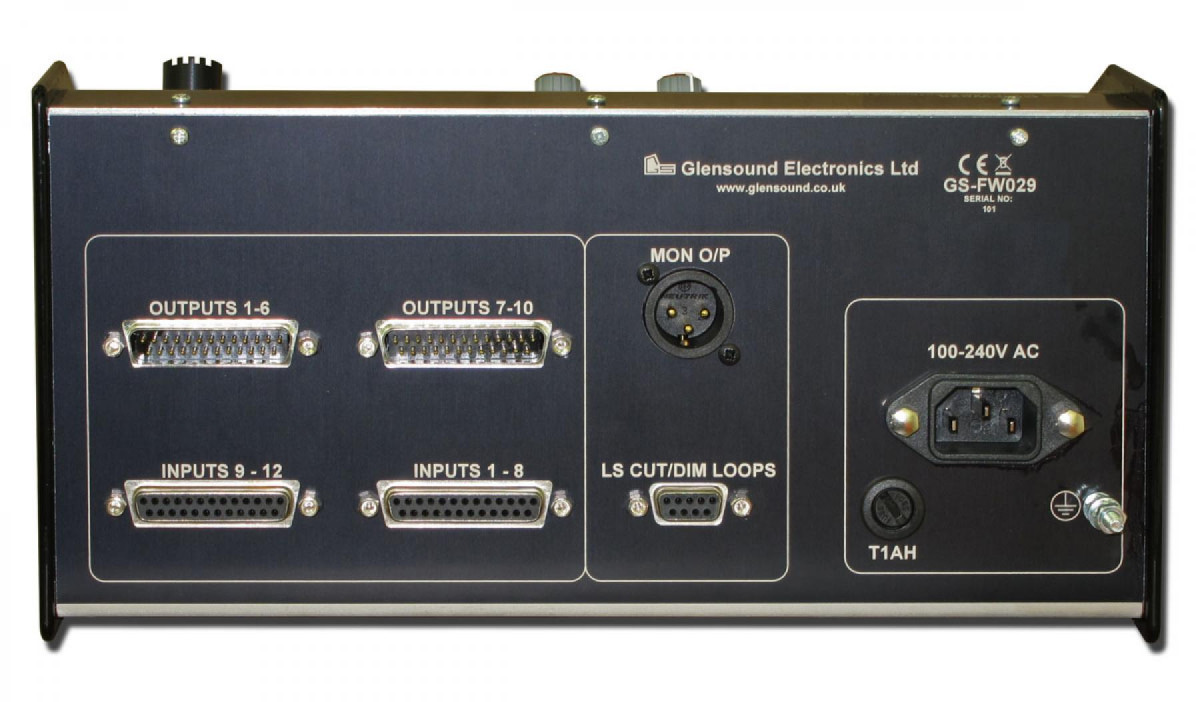

| Inputs | 12 (via 2 x 25-way D connectors) |
|---|---|
| Outputs | 10 talkback, 1 global talkback, 1 external speaker (XLR) |
| Mic Inputs | Panel mic and XLR gooseneck input, both with gain control |
| Monitoring | Headphone jack, internal loudspeaker, external speaker output |
| Metering | 14 LED PPM for incoming audio levels |
| Power | 100–240V AC |
| Loop Control | Loop closure output when talkback is activated |
| Monitoring Options | Individual/multiple channel monitoring via latching switches |
