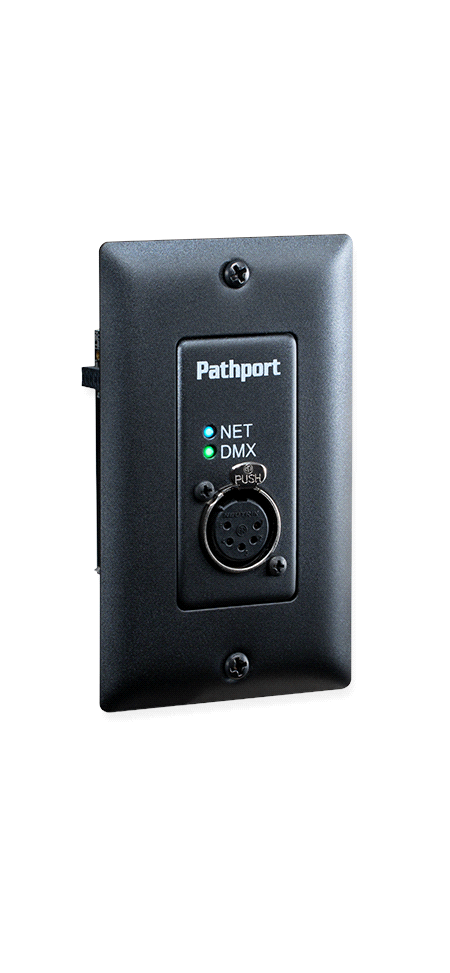

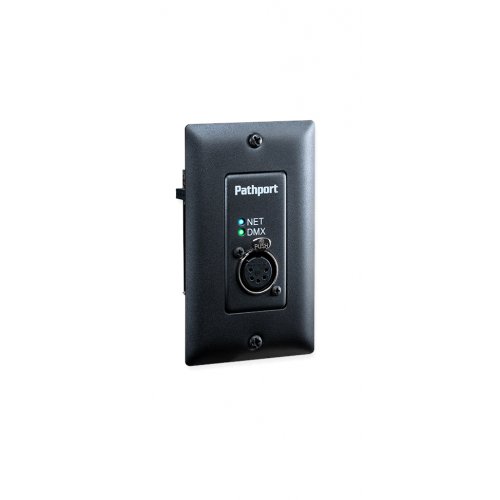

Pathway Connectivity Pathport 1 DMX 5-Pin Male Port Wall-Mount Gateway

About: Pathway Connectivity Pathport 1 DMX 5-Pin Male Port Wall-Mount Gateway

The Pathport series of DMX/RDM Ethernet Gateways are the heart of DMX distribution.

The Pathport Wall-mount 1-Port Gateway is ideal for venues and applications where a simple and inconspicuous single DMX Port is needed.

Connect DMX512 control devices and send data over an Ethernet network to DMX512- capable end devices such as intelligent lighting fixtures, LEDs, Dimmers, and more. The port can be configured as an Input or Output as needed.

Advanced features include extensive protocol support, slot-by-slot patching using multiple sources, cross-fading on priority change, and signal loss behavior. Different Ethernet protocols may be merged together and prioritized. Status LEDs provide instant confirmation of port activity.

Features

• Convert DMX512 to Ethernet protocol for distribution
• Convert Ethernet protocol back to DMX512 for end devices
• One configurable DMX port 10 Mbps Ethernet port (PoE)
• LED Indicators for DMX status and Ethernet link activity
• DMX output configured as whole universes or custom slot-by-slot patch
• Map up to eight control sources to each output slot, with merge and/or priority options for each source
• Acts as E1.20 RDM controller, when used with free Pathscape configuration software or ANSI E1.33 RDMnet compliant controllers
• User-configurable DMX output speed and signal loss behavior
• Supports the following DMX-over- Ethernet sending and receiving protocols:
  • Pathway ssACN (Secure sACN)
  • E1.31streamingACN(sACN)
  • Art-Net
  • PathportProtocol
  • ShowNet
• Elegant design suitable for any location; includes attractive single- gang faceplate
• Operates on Power-over-Ethernet (PoE) or auxiliary 24-48VDC input
• Also available in DIN-mount (PWPP DIN) form factor

Specifications

• Color -  Black, Unfinished
• Control Device Type -  Gateway
• Mounting Location -  Wall
• Product Type -  Gateway
• Network Compatibility -  DMX, RDM
• Networkable Control -  Yes
• Voltage Rating -  24-48VDC
• # of Comm. Ports -  1
• Receiving Protocol -  DMX, Ethernet, RDM, RDMnet, sACN
• Sending Protocol -  DMX, RDM, RDMnet, sACN
• Dimming Protocol -  DMX, RDM, RDMnet, sACN
• Compliance Listing -  BAA
• Regulatory Listing -  CE
• Series -  PWPP
