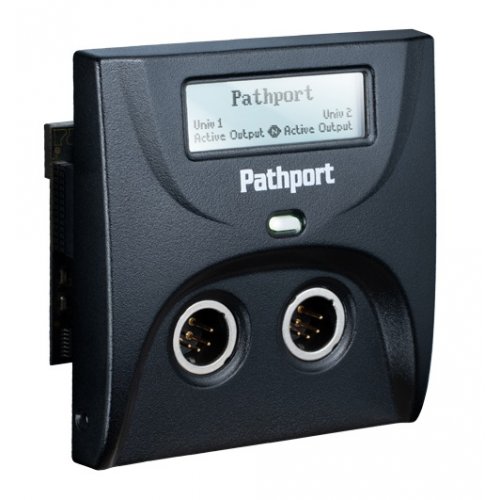

Pathway Connectivity Pathport 2 DMX 5-Pin Female Port Wall-Mount Gateway

About: Pathway Connectivity Pathport 2 DMX 5-Pin Female Port Wall-Mount Gateway

The Pathport® series of DMX/RDM Ethernet Gateways are the heart of DMX distribution.

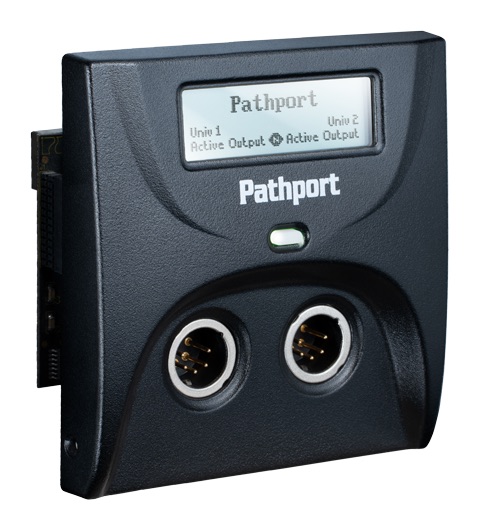

The Wall-mount 2-Port is the original and most popular Pathport® Gateway. It is suitable for flush-mount or permanent installation, in an attractive Matte Black finish.

Connect DMX512 control devices and send data over an Ethernet network to DMX512- capable end devices such as intelligent lighting fixtures, LEDs, Dimmers, and more. Each port can be configured as an Input or Output as needed.

Advanced features include extensive protocol support, slot-by-slot patching using multiple sources, cross-fading on priority change, and signal loss behavior. Different Ethernet protocols may be merged together and prioritized. The front panel LCD provides instant confirmation of DMX port and network link status.

Features

• Convert DMX512 to Ethernet protocol for distribution
• Convert Ethernet protocol to DMX512 for end devices
• Two configurable DMX ports
• 10Mbps Ethernet port (PoE)
• Backlit LCD displays device name, network link status, and DMX Port information
• DMX output configured as whole universes or custom slot-by-slot patch
• Map up to eight control sources to each output slot, with merge and/or priority options for each source
• Acts as E1.20 RDM controller, when used with free Pathscape configuration software or ANSI E1.33 RDMnet compliant controllers
• User-configurable DMX output speed and signal loss behavior
• Fits standard 2-gang, deep backbox
• Supports the following Ethernet sending and receiving protocols:
  • Pathway ssACN (Secure sACN)
  • E1.31 streaming ACN (sACN)
  • Art-Net
  • PathportProtocol
  • ShowNet
• Operates on Power-over-Ethernet (PoE) or auxiliary 24-48VDC input
• Also available in DIN-mount (PWPP DIN) form factor, portable/truss-mount (PWPP DT / PWPP TM) or handheld (PWPP HH) form factors

Specifications

• Color -  Black, Unfinished
• Control Device Type -  Gateway
• Mounting Location -  Wall
• Product Type -  Gateway
• Network Compatibility -  DMX, RDM
• Networkable Control -  Yes
• Voltage Rating -  24-48VDC
• # of Comm. Ports -  2
• Receiving Protocol -  DMX, Ethernet, RDM, RDMnet, sACN
• Sending Protocol -  DMX, RDM, RDMnet, sACN
• Dimming Protocol -  DMX, RDM, RDMnet, sACN
• Compliance Listing -  BAA
• Regulatory Listing -  CE
• Series -  PWPP
• Electrical
  • Input Ratings
    • PoE Class 1 device
    • 24-48VDC auxiliary power input
    • 4W maximum power consumption
  • Isolation & Fault Protection -  250V fault protection on DMX ports
• Environmental
  • Warrantied Operating Temperature -  14°F to 122°F (-10°C to 50°C)
  • Relative Humidity -  5-95%, non-condensing
  • Standard Compliance -  RoHS 2011/65/EU + A1 2015/863
• Mechanical
  • Dimensions (WxHxD) -  4.5 x 4.6 x 2.75 Inch (114 x 117 x 70mm)
  • Weight -  0.7 lbs (0.32 kg)
