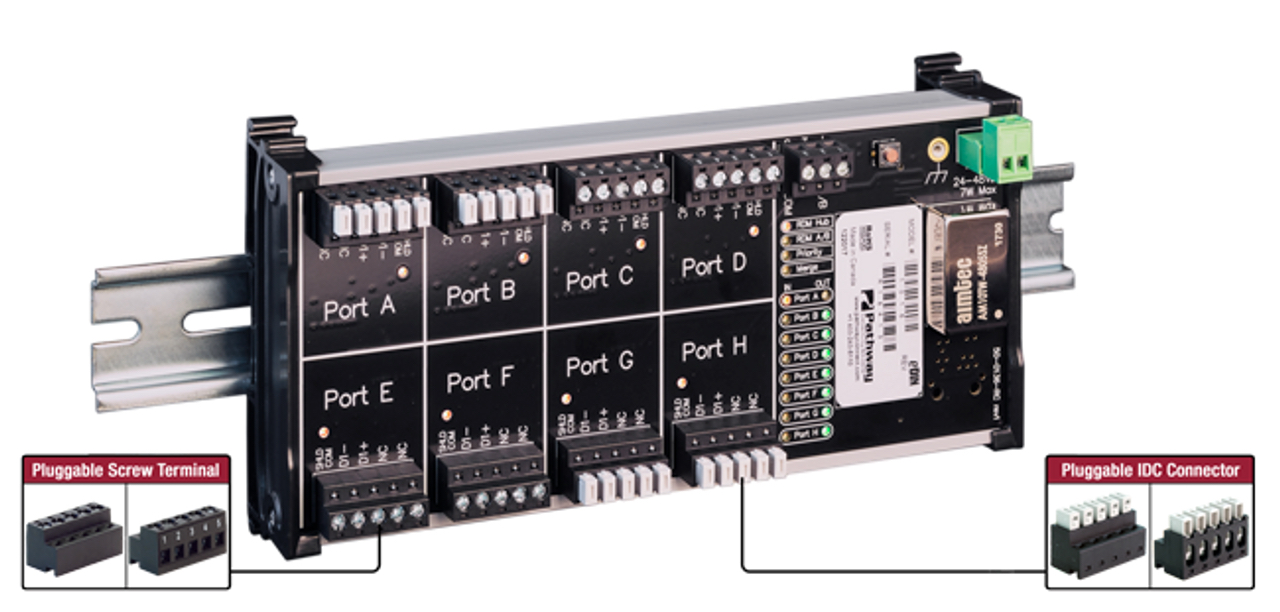

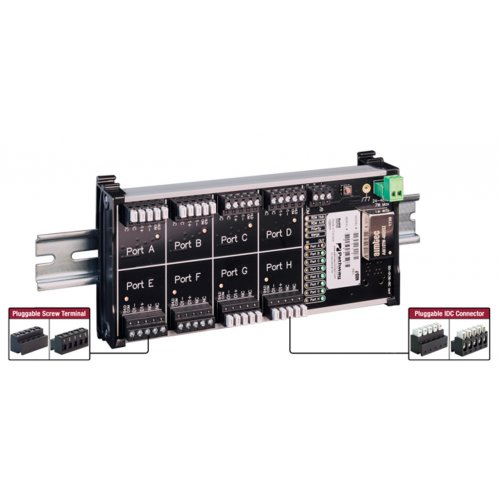

Pathway Connectivity PWREP 8-Port Bi-Directional DMX/RDM Merger & Hub

About: Pathway Connectivity PWREP 8-Port Bi-Directional DMX/RDM Merger & Hub

The Pathway DMX Repeater series of opto-splitters are an essential component of DMX distribution systems, permitting star-wiring configurations while isolating and protecting equipment from electrical faults.

The 8-Port Merger & Hub brings flexibility to single-universe DMX512 distribution systems. Through the use of automatic signal sensing across four operating modes, any port may detect incoming DMX signals and act as an input; two inputs may be merged; the user may manually select between two inputs; or a priority scheme may be invoked.

In Hub and A/B modes, E1.20 Remote Device Management (RDM) is supported.

The Pathway 8-port DIN-mount DMX Mergers / Hub provide advanced signal routing capabilities for single-universe DMX systems in a convenient, compact, DIN- mountable form factor intended for permanent installs.

Features

• 8 bi-directional DMX512/RDM ports
• Four operating modes
• Automatically locates incoming DMX signal and routes according to current mode
  • Hub mode: Sense any active control source on any port and output to all other ports
  • A/B mode:ExternalA/Bswitchforuserselectionofinput
  • Priority mode: Automatically switch to Input A on active DMX signal, fall back to Input B
  • Merge mode: Merge Input A and B with highest level per slot output
• Multi-level cascade of modules permitted
• User-configurable DMX output speed and signal loss behavior1
• LED Indicators for Port Direction, Power, and Mode
• Mounts to standard 35mm DIN rail
• Includes both compression-screw and Insulation Displacement Contact (IDC) terminal block connectors
• Also available in Rack-mount form factor

Specifications

• General
  • Control Device Type -  Interface Device
  • Mounting Location -  Cabinet
  • Mounting Type -  DIN Rail, Surface
  • Product Type -  Opto Splitter
  • Network Compatibility -  DMX, RDM
  • Networkable Control -  Yes
  • Voltage Rating -  24-48VDC
  • # of Comm. Ports -  8
  • Receiving Protocol -  DMX, RDM
  • Sending Protocol -  DMX, RDM
  • Dimming Protocol -  DMX, RDM
  • Compliance Listing -  BAA, ROHS
  • Regulatory Compliance -  CE
  • Series -  PWREP
  • Compliance
    • ANSI E1.11 DMX512-A R2013
    • ANSI E1.20 RDM - Remote Device Management
• Electrical
  • Input Ratings
    • 24-48VDC power input
    • 7W maximum power consumption
  • Isolation & Fault Protection
    • 3000V isolation between DMX Ports
      • (1500V isolation from any DMX port and DC input)
    • 60V fault protection on DMX ports
  • Environmental
    • Operating Temperature -  14°F to 113°F (-10°C to 45°C)
    • Relative Humidity -  5-95%, non-condensing
    • Standard Compliance -  RoHS 2011/65/EU + A1 2015/863
• Mechanical
  • ​Dimensions (WxHxD) -  8 x 4 x 1.85in (203 x 103 x 47mm)
  • Weight -  0.7 lbs (0.32 kg)
