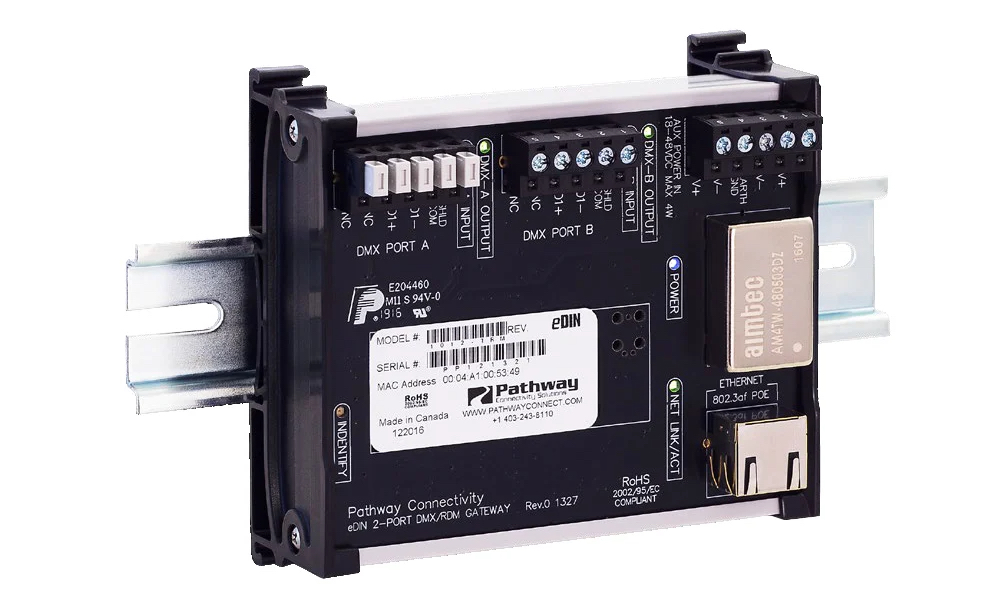

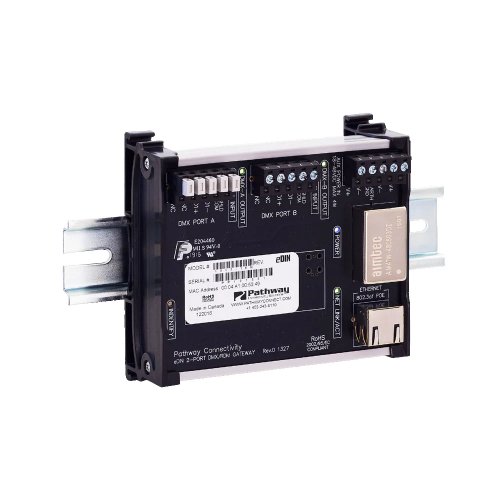

Pathway Connectivity Pathport Din-Mount DMX/RDM Ethernet Gateway - 2 Port

About: Pathway Connectivity Pathport Din-Mount DMX/RDM Ethernet Gateway - 2 Port

The Pathport series of DMX/RDM Ethernet Gateways are the heart of DMX distribution.

Connect DMX512 control devices and send data over an Ethernet network to DMX512-capable end devices such as intelligent lighting fixtures, LEDs, Dimmers, and more. Each port can be configured as an Input or Output as needed.

The compact Pathport DIN-mount Gateways are designed for permanent installation and available in a variety of port counts. They are configured using the free downloadable software, Pathscape.

Advanced features include extensive protocol support, slot-by-slot patching using multiple sources, cross-fading on priority change, and signal loss behavior. Different Ethernet protocols may be merged together and prioritized. Status LEDs provide instant confirmation of port activity.

Features

• Convert DMX512 to Ethernet protocol for distribution
• Convert Ethernet protocol to DMX512 for end devices
• Two, or Four DMX512 ports, individually configurable
• LED Indicators for Port Direction, Power, Ethernet link activity, and Identify
• DMX output configured as whole universes or custom slot-by-slot patch
• Map up to eight control sources to each output slot, with merge and/or priority options for each source
• Acts as E1.20 RDM controller, when used with free Pathscape configuration software or ANSI E1.33 RDMnet compliant controllers
• User-configurable DMX output speed and signal loss behavior
• Supports the following Ethernet sending and receiving protocols:
  • Pathway ssACN (Secure sACN)
  • E1.31 streaming ACN (sACN)
  • Art-Net
  • Pathport Protocol
  • ShowNet
• Operates on Power-over-Ethernet (PoE) or auxiliary 24-48VDC input
• Mounts to standard 35mm DIN rail
• Contact closure input configurable per port to Pause RDM or DMX Force Hold (P4)
• microSD card slot allows backup or restore of device configuration (P4)
• Also available in Wall-mount (PWPP WM) and Portable (PWPP DT) form factors

Specifications

• Control Device Type -  Gateway
• Mounting Location -  Cabinet, Wall
• Mounting Type -  DIN Rail, Surface
• Product Type -  Gateway
• Network Compatibility -  DMX, RDM
• Networkable Control -  Yes
• Voltage Rating -  24-48VDC
• # of Comm. Ports -  2
• Receiving Protocol -  DMX, Dry Contact, Ethernet, RDM, RDMnet
• Sending Protocol -  DMX, RDM, RDMnet, sACN
• Dimming Protocol -  DMX, RDM, RDMnet, sACN
• Compliance Listing -  BAA, CA Title 1.81.26, ROHS
• Regulatory Listing -  CE
• Series -  PWPP
• Electrical
  • Input Ratings
    • PoE Class 1 device
    • 18-48VDC auxiliary power input
    • 4W maximum power consumption
  • Isolation & Fault Protection -  60V fault protection on DMX ports
• Environmental
  • Operating Temperature -  14°F to 113°F (-10°C to 45°C)
  • Relative Humidity -  5-95%, non-condensing
• Mechanical
  • Dimensions (WxHxD) -  4.5 x 4 x 1.9 Inch (113 x 103 x 48mm)
  • Weight -  0.4 lbs (0.18 kg)
