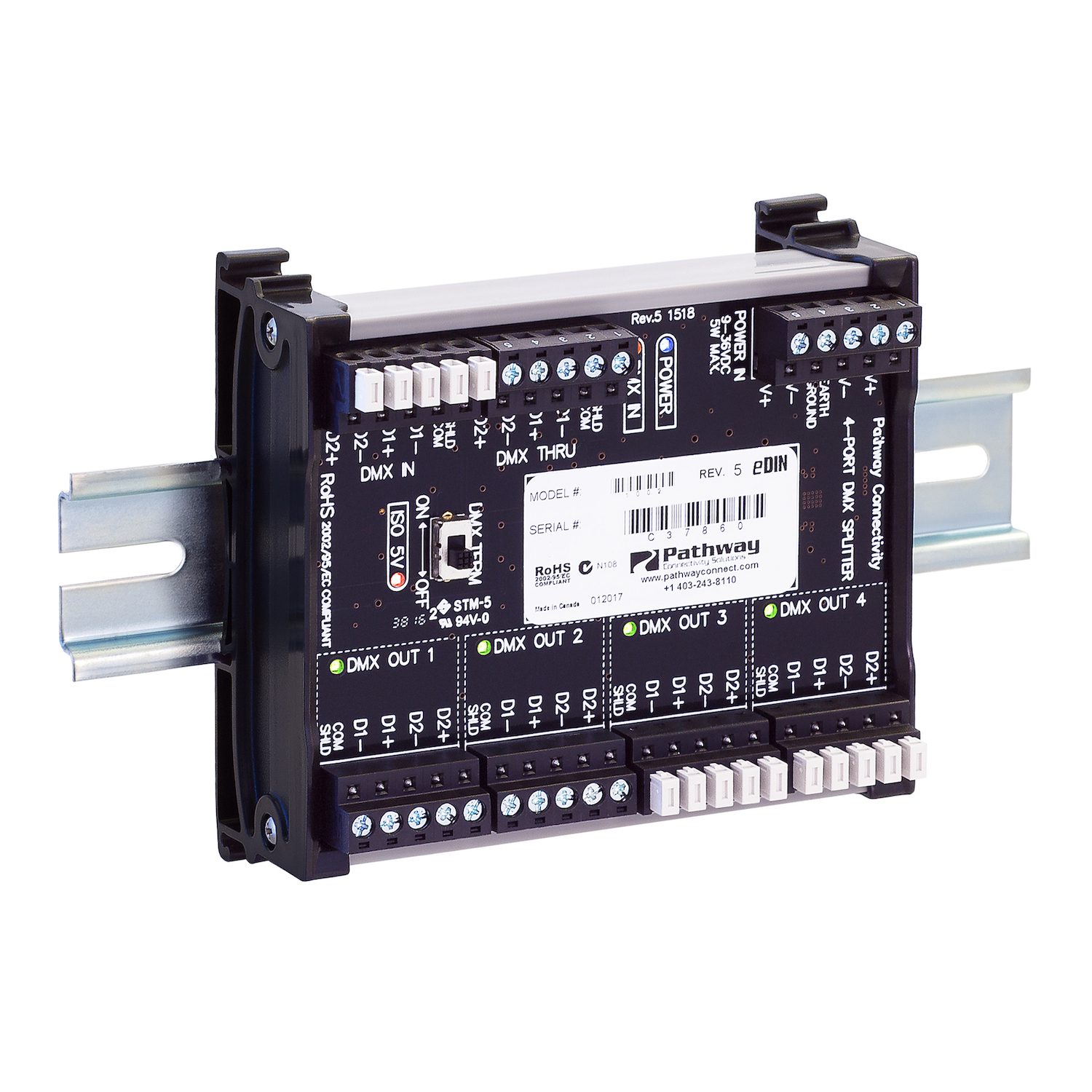

Pathway Connectivity PWREP DMX Repeater 4-Port DIN-Mount (DMX Only)

About: Pathway Connectivity PWREP DMX Repeater 4-Port DIN-Mount (DMX Only)

The Pathway DMX Repeater series of opto-splitters are an essential component of DMX distribution systems, permitting star-wiring configurations while isolating and protecting equipment from electrical faults.

The RDM model supports the bi-directional communication standard E1.20 Remote Device Management (RDM).

The Pathway DIN-mount DMX Repeaters provide the same robust features of our Rack- mount 8 port opto-splitters, but in a convenient, more compact, DIN-mountable form factor intended for permanent installs.

Features

• 4 DMX512 Outputs [DMX Only model]
• 1 DMX512 Input, 1 Passive DMX512 Thru [Non RDM model]
• DMX line termination switch [DMX Only model]
• No fuses - self-resetting port protection recovers from voltage faults
• LED Indicators for Port Activity, Power, DMX Input, and Iso Power
• Data and power easily daisy-chained to other DIN units
• Mounts to standard 35mm DIN rail
• Includes both compression-screw and Insulation Displacement Contact (IDC) terminal block connectors
• Also available in Rack-mount (PWREP RM) and Wall-mount (PWREP WM) form factors, as well as Merger and Hub models available

Specifications

• General
  • Control Device Type -  Interface Device
  • Mounting Location -  Cabinet
  • Mounting Type -  DIN Rail, Surface
  • Product Type -  Opto Splitter
  • Network Compatibility -  DMX
  • Networkable Control -  Yes
  • Voltage Rating -  9-30VDC
  • # of Comm. Ports -  4
  • Receiving Protocol -  DMX
  • Sending Protocol -  DMX
  • Dimming Protocol -  DMX
  • Compliance Listing -  BAA, ROHS
  • Regulatory Compliance -  CE
  • Series -  PWREP
  • Compliance -  ANSI E1.11 DMX512-A R2013
• Electrical
  • Input Ratings
    • 9-36VDC power input
    • 6W maximum power consumption
  • Isolation & Fault Protection
    • 1500V isolation from DMX Input to DMX Outputs
    • 250V fault protection on DMX ports
• Environmental
  • Operating Temperature -  14°F to 113°F (-10°C to 45°C)
  • Relative Humidity -  5-95%, non-condensing
  • Standard Compliance -  RoHS 2011/65/EU + A1 2015/863
• Mechanical
  • ​Dimensions (WxHxD) -  4.5 x 4 x 1.85in (114 x 103 x 47mm)
  • Weight -  0.5 lbs (0.26 kg)
