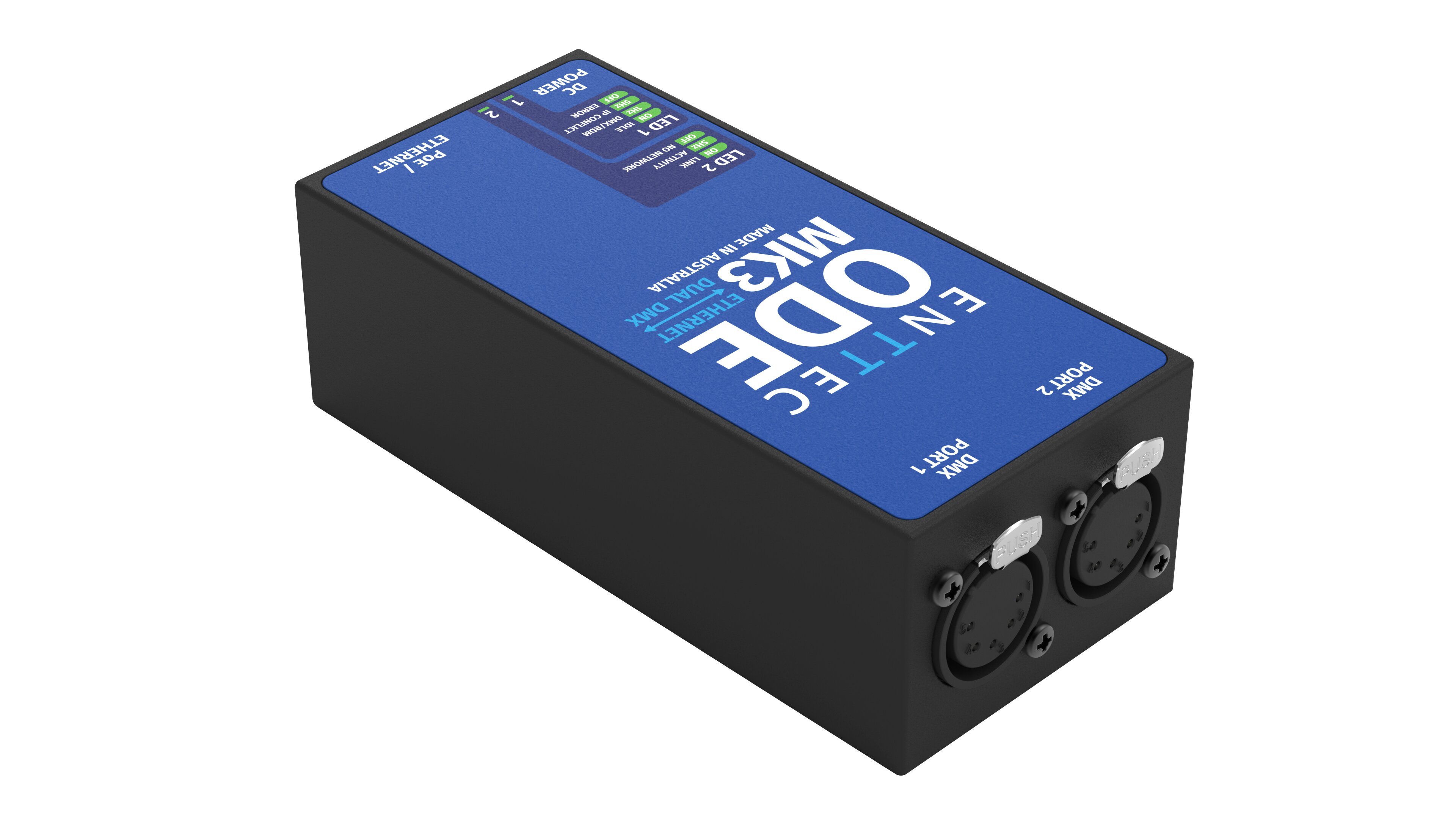

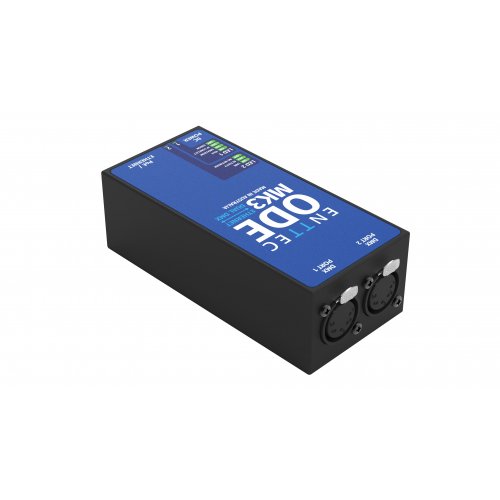

ENTTEC ODE Open DMX Ethernet MK3
Model: 70407
About: ENTTEC ODE Open DMX Ethernet MK3
The ODE MK3 is a solid-state RDM compatible DMX node designed for the highest level of portability, simplicity, and practicality. A perfect solution for converting from a multitude of Ethernet-based lighting protocols to physical DMX and vice versa without the need for adaptors.
With 2 Universes of bi-directional eDMX <–> DMX/RDM support female XLR5s and a PoE (Power over Ethernet) RJ45, ODE MK3 is simple and easy to connect physical DMX devices to your network infrastructure.
Connectors with EtherCon lockable feature in addition make the wiring secured with a peace of mind.
The configuration as well as the firmware updates of the ODE MK3 are managed through the localhost web interface to simplify commissioning from any computer on your network.
Features
- Two-Universe bi-directional DMX / E1.20 RDM female XLR5s.
- One PoE (Power over Ethernet) RJ45 port supporting IEEE 802.3af (10/100 Mbps) and one optional DC 12-24v power input.
- Secure ‘EtherCon’ connectors
- Support RDM over Art-Net & RDM (E1.20).
- Support for DMX -> Art-Net (Broadcast or Unicast) / DMX -> ESP (Broadcast or Unicast) / DMX -> sACN (Multicast or Unicast).
- HTP/LTP Merging support for up-to 2 DMX sources.
- Configurable DMX output refresh rate.
- Intuitive device configuration and updates through the inbuilt web interface.
- ‘Current Port Buffer’ allows live DMX values to be viewed.
Easy web page configuration
Configuration is managed through the localhost web interface to simplify commissioning and updates. Consequently, the ODE MK3 to be configured from any computer on your network.
Flexible power options
Power the ODE MK3 using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input.
Sync mode
All ENTTEC Ethernet hardware accepts ArtSync to fully synchronise Art-Net data across your installation when receiving Art-Net from the same source to protect against content tearing and ensure a professional looking output across your rig.
Time-saving and installer-friendly
This Ethernet to DMX converter is packed with installer-friendly features including industry standard 5-pin XLR ports to simplify wiring.
Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the localhost web interface to troubleshoot your installation. Upon receiving power, the device is ready to for action within seconds.
Monitor activity

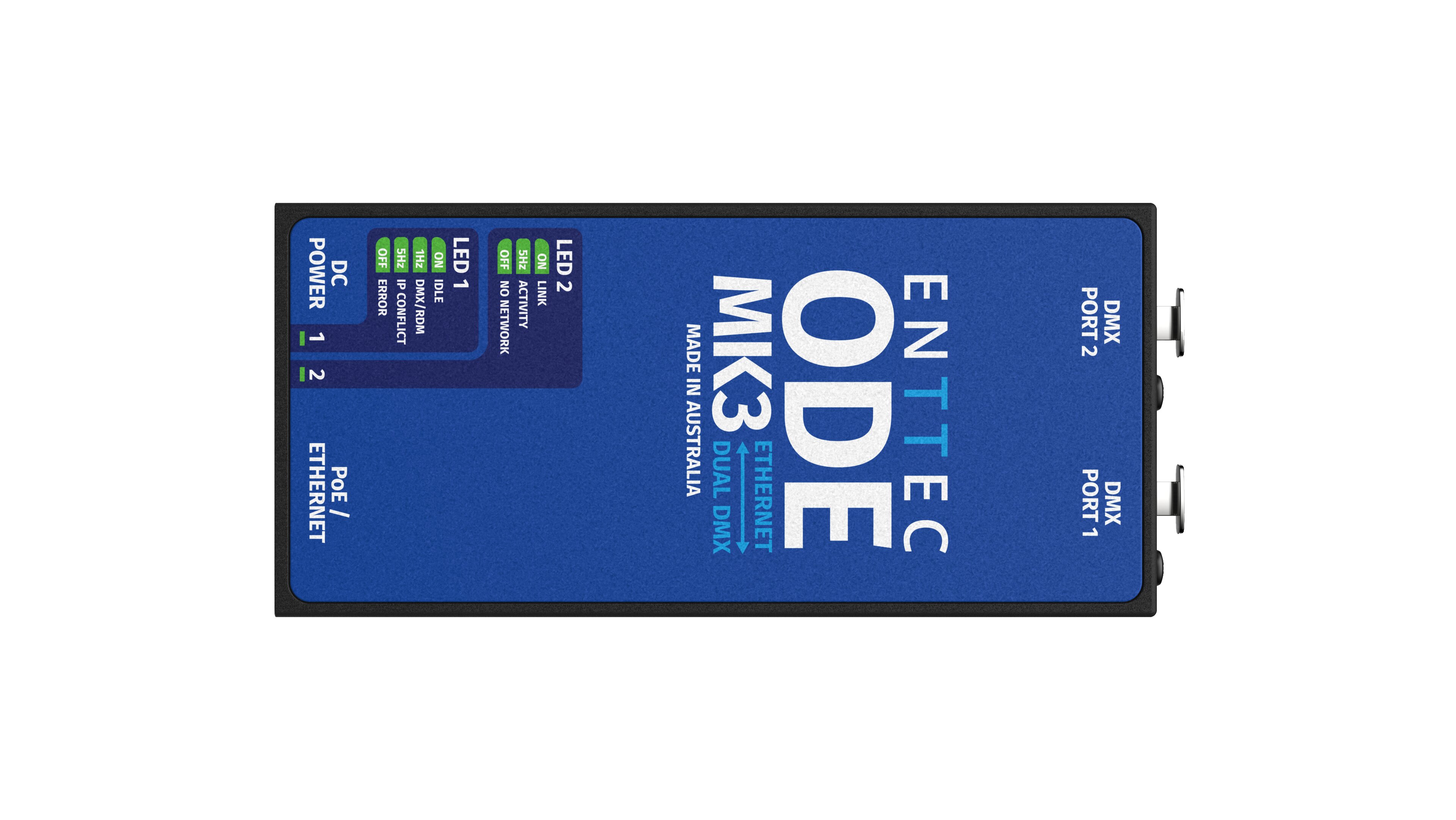

The LED indicators allows you to monitor connectivity & status in a quick glance.
Protocols
The ODE Mk3’s primary functionality is to convert between Ethernet-DMX protocols and USITT DMX512-A (DMX). The following conversions are available with the ODE Mk3:
- Art-Net – DMX (with/without RDM. ANSI E1.20 RDM supported)
- DMX – Art-Net (Broadcast or Unicast)
- sACN – DMX
- DMX – sACN (Multicast or Unicast)
- ESP – DMX
- DMX – ESP (Broadcast or Unicast)
Specification
- Connectors
- 1x EtherCon Port (RJ45)

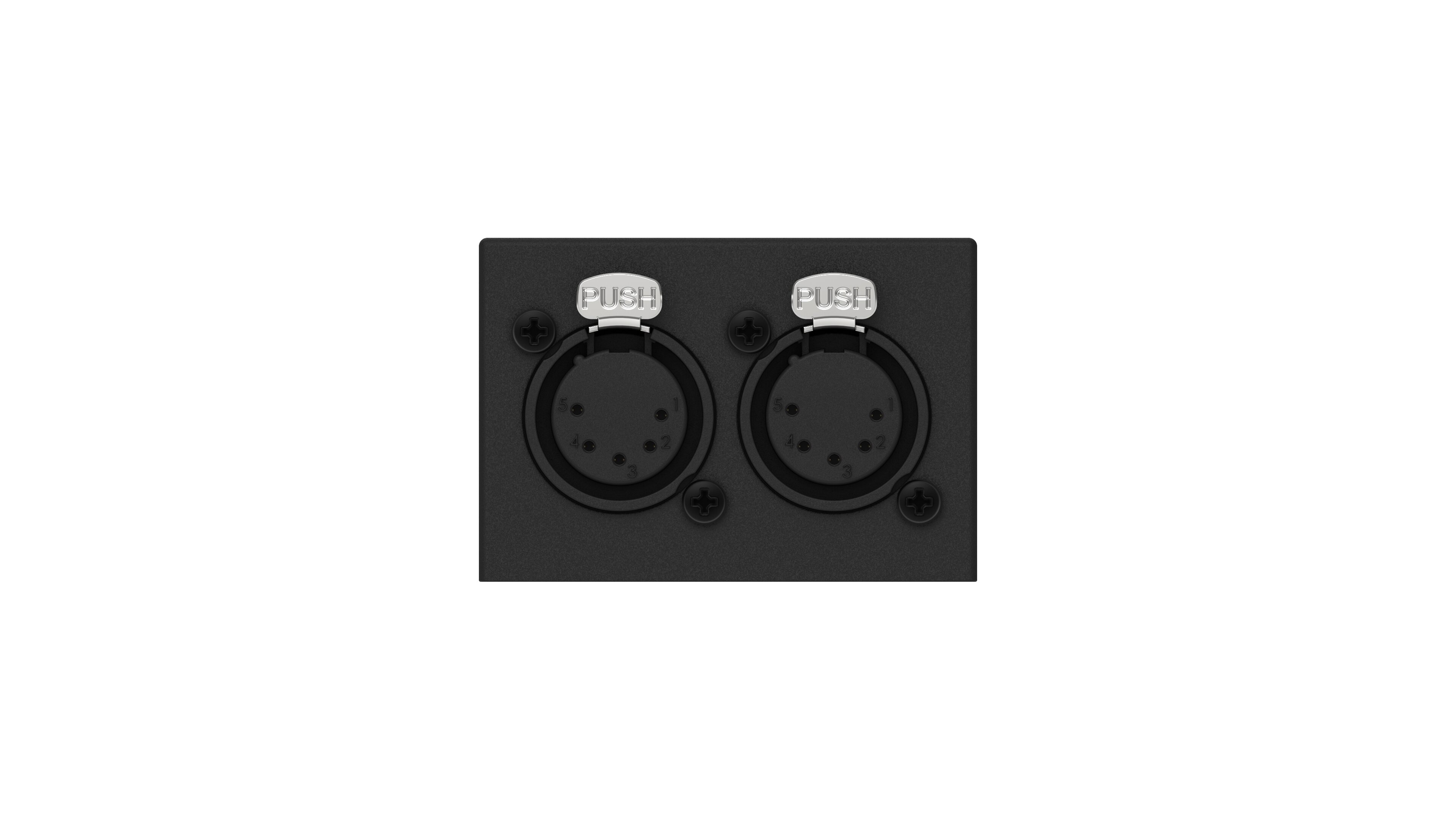

- 2x Bi-directional DMX (Female XLR5)
- 1x Power Input (DC Jack)
- IP rating - IP20
- LED indicators
- Status indicator
- Network Link / Activity indicators
- eDMX protocols
- Art-Net
- Art-RDM
- sACN
- ESP
- DMX protocols
- USITT DMX512-A
- ANSI E1.20 RDM
- DMX & RDM timings
- Break time - 300ms
- Mark after Break (MAB) - 15ms
- Max. channels - 2 Universes (1024ch)
- Max. refresh rate - 44FPS
- Art-Net merging - 2 Sources
- Configuration software - Web Browser
- Firmware updates - Web Browser1
- Input voltage - 12V to 24V DC
- Max. current craw - 580mA
- Max. power draw - 7W
- Power over Ethernet (PoE) - IEEE 802.3af
- Environmental operating temperature
- 0°-50°C
- 32°-122°F
- Environmental operating humidity - 5- 95% (non-condensing)
- Body material - ABS Plastic
- Unit dimensions - 129x58x40 mm
- Unit weight - 0.10kg / 0.22lbs
- Warranty - 3-year return to base manufacturer warranty
Box contents
- ODE MK3
- Ethernet Cable
- Power supply with AU/EU/UK/US adapters
UPC: 9351074003550
