ENTTEC STORM10 DMX Over Ethernet Gateway

About: ENTTEC STORM10 DMX Over Ethernet Gateway

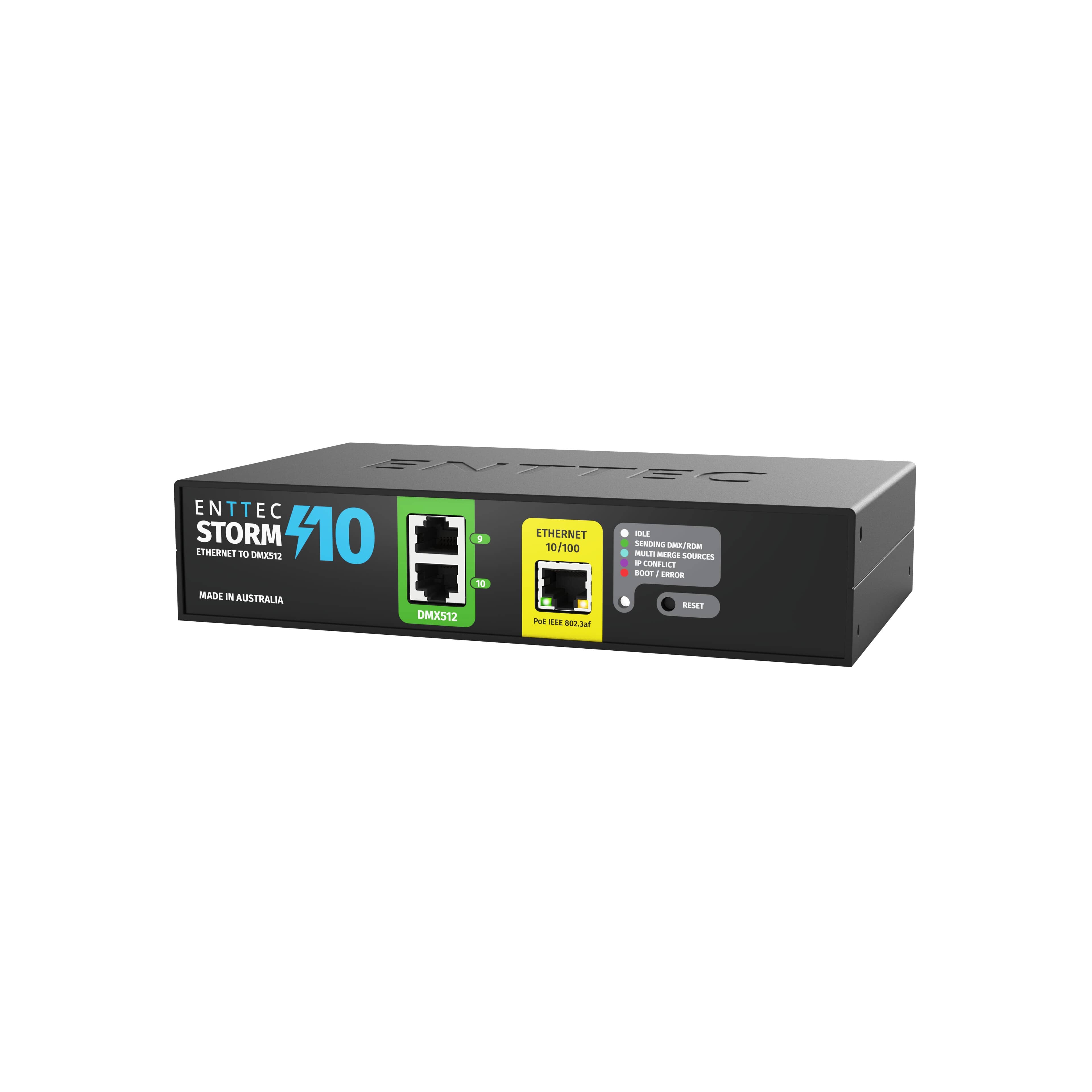

ENTTEC’s STORM10 is a compact installer-grade Ethernet-DMX to DMX/RDM gateway designed to make controlling DMX lights over Ethernet simple.

The STORM10 converts Art-Net, sACN & ESP eDMX protocols into up to 10 Universes of DMX/RDM to your lighting fixtures. In combination with 1 ethernet input, STORM10 is packed with 10 rear DMX/RDM output ports alongside installer-friendly two forward-facing service ports duplicating Port 9&10 offering as many outputs as possible within a 1U half-width rack device.

The STORM10 converts fully compliant DMX using RJ45 outputs, Cat5e/Cat6 cable can be wired to a standard DMX plug either locally to the STORM10 or at the first fixture. Using RJ45 cables instead of DMX cable proves cheaper and more efficient especially on long term installations.

The STORM10 can be powered by either PoE or a 12-24V DC jack input. Its front LED indicators showing the status and connectivity of each unit. All intuitive configuration management including firmware updates are conveniently accessible through its localhost web interface making installations both simple and fast.

The STORM10 allows merging of up to two Ethernet-DMX sources via HTP or LTP methods, providing additional flexibility without the need for other hardware.

Features

• 10 Universe Ethernet-DMX to DMX/RDM Node.
• Supports Art-Net, sACN & ESP Ethernet protocols.
• 1 x RJ45 Ethernet input port (10/100 Mbps) with built-in LED network status indicator.
• Total 12 x DMX/RDM output ports: 10 x rear DMX/RDM ports & 2 x forward-facing service ports duplicating Port 9&10.
• PoE or DC jack power input.
• Reverse polarity protection.
• Integrated protection against surge.
• 10 DMX output settings are independently configurable, including Input Protocol, Output type, refresh rate, HTP/LTP Merge.
• DHCP or Static IP address support.
• Intuitive device configuration and updates through the inbuilt web interface.
• Mounting accessories included allowing surface mount, din mount or rack mount in half or full width rack spaces.

What's in the Box

• STORM10
• Ethernet cable
• Power supply with AU/EU/UK/US adapters
• Rack, Surface/Din mount ears + Din Clips + Screws
