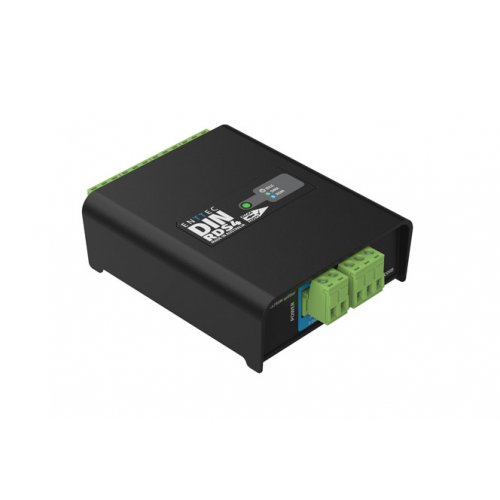

ENTTEC DIN RDS4 MKII DMX Splitter
Model: 72004
About: ENTTEC DIN RDS4 MKII DMX Splitter
ENTTEC’s DIN RDS4 is an installation grade, 4-port, DMX/RDM isolated splitter engineered to take any architectural, commercial or entertainment project to the next level.
Use the DIN RDS4 to turn one DMX feed into four and eliminate the need to create long and complex DMX chains. Instead, each port becomes the beginning of a new chain. Multiple RDS4s can be chained together to create as many outputs as you need.
The DIN RDS4 requires no configuration and is packed with installer-friendly features including a flexible 7-24v DC power input range and removable terminal plugs for simple wiring. To top things off, it’s all housed within a compact, electrically-insulated form factor with flexible mounting options.
Features
- 1 DMX/RDM input & 4 DMX/RDM outputs.
- 1500V Opto-isolation between each DMX port to protect against stray voltages on the DMX line.
- Pluggable screw terminal connectors.
- Forward facing LED status indicator to view current DMX/RDM traffic.
- Support for DMX512-A and ANSI E1.20 RDM.
- Output refresh rate mimics the input.
- Electrically insulated case material.
- Surface or TS35 DIN rail mount.
- No configuration required.
- 7V-24V DC power input.
- -20°C to 50°C (-4°F to 122°F) operating temperature.
Small yet powerful
Housed in a slim, electrically-insulated, 4-DIN-module enclosure, the DIN RDS4 is compatible with DMX512-A & RDM (E1.20). The DIN RDS4 actively changes its refresh rate to match your DMX input source.
Flexible mounting options
The DIN RDS4 features a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.
Protect your fixtures
1500V isolation between any individual DMX port protects your DMX source and lighting fixtures from power surges and stray voltages on the DMX line by blocking stray voltage from crossing to other DMX chains.
Monitor activity
The forward-facing LED indicator allows DMX & RDM activity to be monitored quickly with just a glance.
