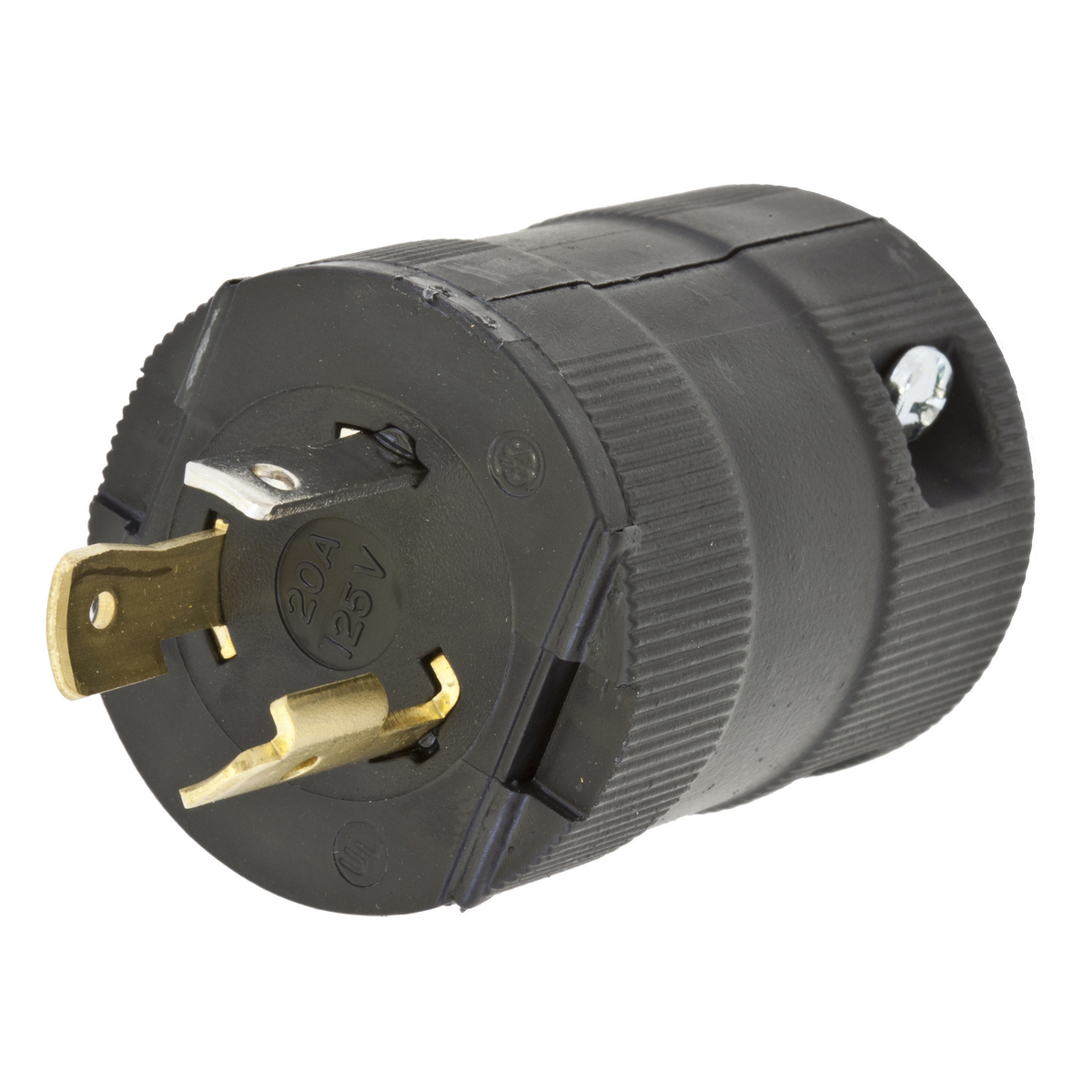

Hubbell HBL2311VBK Male Black Twist Lock 20a 125v 2P3W L5-20
Model: HBL2311VBK
About: Hubbell HBL2311VBK Male Black Twist Lock 20a 125v 2P3W L5-20
Twist-Lock Valise Plug
- Product Item Plug
- Wiring Scheme 2-Pole, 3-Wire Grounding
- Amperage 20A
- Voltage 125V AC
- NEMA Configuration L5-20P
- Item Style Valise
- Device Color Black
- Horsepower 1
- Cord Dia. .325"-.720" (8.26-18.3)
- Blade Holder Material Black Nylon
- Housing Material Black nylon
- Cord Clamp Material Natural (white) nylon
- Blade Material Brass
- Terminal Clamp Material Cold rolled steel-nickel-plated
- Terminal Screw Material #8-32 Steel (copper flash, nickel plate & molykote)
- Ground Screw Material #8-32 Steel (green finish)
- Cord Clamp Screw Material Steel-zinc-plated
- Body Holding Screw Material Steel-zinc-plated
- Ratings Molded In or Stamped On
- Catalog No Permanently ink marked on product
- Dielectric Voltage Withstand 2,000V minimum
- Current Interrupting Certified for current interrupting at full rated current
- Temperature Rise Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
- Cord Accommodation Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
- Terminal Accommodation 20A #12 AWG
- Terminal Identification Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
- Flammability HB or better per UL 94 or CSA 22.2 No. 0.6
- Operating Temperatures Maximum Continuous 75 C Minimum -40 C (w/o impact)
- Moisture Resistance IP20
- Listings UL/CSA
- UPC Number 783585043005
- Weight in LBs 0.2
