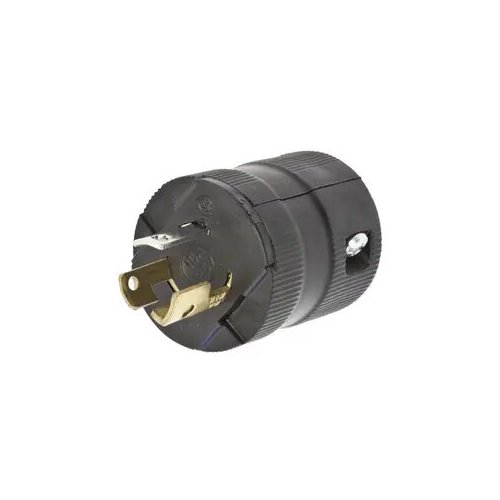

Hubbell Twist-Lock Devices 15A, 125V, 2 Pole Plug (No Box)

About: Hubbell Twist-Lock Devices 15A, 125V, 2 Pole Plug (No Box)

Locking Devices, Twist-Lock, Valise, Male Plug, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Black Nylon.

• Two captive multiple drive assembly screws
• Totally insulated impact and crush resistant nylon body
• Powerful cord grips prevent conductor slippage and strain on wiring terminals

Specifications

• Housing -  Nylon
• Cable Inserts -  Polyphenylene Oxide
• Blades -  Brass
• Terminal Screws -  #6-32 Brass (Phillips / Slotted / Robertson)
• Terminal Clamp -  Cold rolled steel – nickel plated
• Assembly Screws -  Steel - Zinc plated

General

• Application -  Extra Heavy Duty Industrial
• Color -  Black
• Cord Range -  0.220"-0.660"(5.6-16.8)
• Environmental Conditions -  Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum -  0.5
• Item Type -  15A Valise Plug
• Material -  Nylon
• Material - Mounting Hardware -  Cord Mounted
• Number Of Poles -  2-Pole
• OEM Brand Name -  Hubbell Wiring Device-Kellems
• Operating Temperature -  Maximum continuous 75°C and minimum -40°C without Impact

Performance

• Electrical
  • Current Interrupting -  Certified for current interrupting at full rated current
  • Dielectric Voltage -  Withstands 2,000V minimum
• Mechanical
  • Terminal Accommodation -  #18 AWG - #12 AWG stranded copper wire only.
  • Terminal Identification -  Terminals identified in accordance with UL 498
• Environmental
  • Flammability -  HB or better per UL 94 or CSA 22.2 No. 0.6
  • Moisture Resistance -  IP20 Suitability
  • Operating Temperatures -  Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Type -  Plugs

Dimensions

• Height -  1.87 in
• Length -  1.49 in
• Weight -  0.10 lb
• Width -  1.49 in

Electrical Ratings

• Amperage Rating -  15 A
• Connectivity -  Pressure Terminal Screws
• Current / Amperage Rating -  15 A
• Current Rating -  15 A
• Dielectric Strength -  Withstands 2,000V minimum
• Phase -  Single Phase
• Voltage Rating -  125 VAC
• Voltage Rating -  Description 125 VAC

Conductor Related

• Cable Range -  0.220 - 0.660 in
• Cord Type -  All Listed Portables
• Number Of Wires -  3-Wire
• Wire Size -  #18 AWG to #12 AWG

Certifications and Compliance

• Industry Standard(s)
  • Certified to CSA C22.2 No.42
  • Fed.Spec. W-C-596
  • Listed to UL 498
• Nema Rating L5-15P
