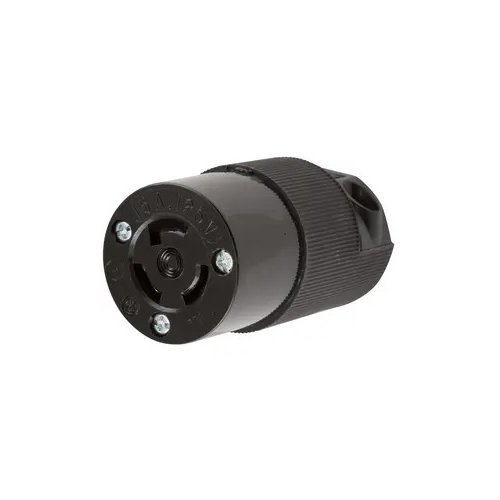

Hubbell 15A Twist-Lock - Black Female

About: Hubbell 15A Twist-Lock - Black Female

Twist-Lock Insulgrip Connector, 15A, 125V, 2-Pole, 3 Wire Grounding, NEMA L5-15R,l Black Nylon

• Ribbed nylon housing provides secure, impact and chemical resistant grip
• Superior cord grip design protects terminations from excess strain
• Integral VARI-SIZE insert accomodates a wide range of cord diameters

Specifications

• General
  • Application -  Heavy Duty Industrial
  • Color -  Black
  • Cord Range -  0.230"-0.720"(5.8-18.3)
  • Environmental Conditions -  Indoor Dry Unless Protected By Additional Means
  • Insulation -  Insulated Body
  • Item Type -  15A Insulgrip Connector
  • Listings
    • UL 498
    • Fed.Spec. W-C-596
    • CSA C22.2 No.42
  • Material -  Nylon
  • Material - Mounting Hardware -  Cord Mounted
  • Number Of Poles -  2-Pole
  • OEM Brand Name -  Hubbell Wiring Device-Kellems
  • Operating Temperature -  Maximum continuous 75°C and minimum -40°C without Impact
  • Performance
    • Electrical-Current Interrupting - Certified for current interrupting at full rated current
    • Electrical - Dielectric Voltage - Withstands 2,000V minimum
    • Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only
    • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
    • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
    • Environmental - Moisture Resistance - IP20 Suitability
    • Environmental - Operating Temperatures - Maximum Continuous 75°C
    • Minimum -40°C (w/o impact)
  • Temperature Rating -  Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Dimensions
  • Dimensions -  1.53 in x 1.53 in x 2.78 in
  • Display Size -  Standard
  • Height -  2.78 in
  • Length -  1.53 in
  • Weight -  0.20 lb
  • Width -  1.53 in
• Electrical Ratings
  • Amperage Rating -  15 A
  • Connectivity -  Pressure Terminal Screws
  • Current / Amperage Rating -  15 A
  • Current Rating -  15 A
  • Dielectric Strength -  Withstands 2,000V minimum
  • Voltage Rating -  125 VAC
  • Voltage Rating -  Description 125 VAC
• Conductor Related
  • Number Of Wires -  3-Wire Grounding
  • Wire Size -  #18 AWG to #10 AWG
