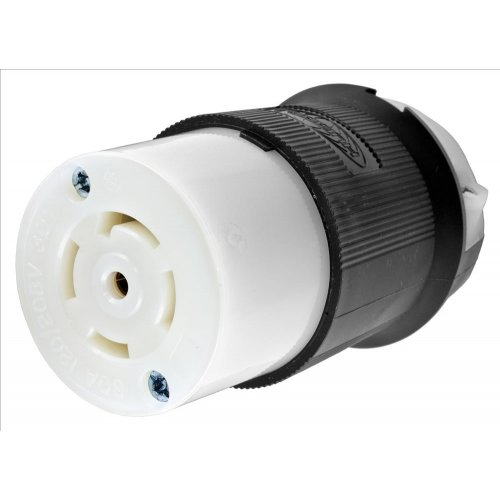

Hubbell HBL2813 - 3 Phase 30A Twist-Lock Female 4P5W L21-30

About: Hubbell HBL2813 - 3 Phase 30A Twist-Lock Female 4P5W L21-30

Twist-Lock Connector Body

•  Product Item  Connector Body
•  Wiring Scheme  4-Pole, 5-Wire Grounding
•  Amperage  30A
•  Voltage  3 Phase Y 120/208V AC
•  NEMA Configuration  L21-30R
•  Item Style  Insulgrip
•  Device Color  Black/White
•  Cord Dia.  .35"-1.15" (9-29)
•  Terminal Retainer Material  Clear polycarbonate
•  Housing Material  Black nylon
•  Cord Clamp Material  Natural (white) nylon
•  Terminal Clamp Material  .08" (2) steel-nickel plated
•  Terminal Screw Material  #10-32 Brass (white finish on neutral screw when used) Multi-drive
•  Ground Screw Material  #10-32 Brass (green finish) Multi-drive
•  Cord Clamp Screw Material  Steel, zinc plated Multi-drive
•  Body Holding Screw Material  Steel, zinc plated Multi-drive
•  Body Contact Carrier Material  Natural White Nylon
•  Contact Spring Material  Brass
•  Spring Binding Plate Material  Brass
•  Ground Contact Material  .031" (.8) Brass
•  Ratings  Molded In or Stamped On
•  Catalog No  Permanently ink marked on product
•  Dielectric Voltage Withstand  2,000V minimum
•  Current Interrupting  Certified for current interrupting at full rated current
•  Temperature Rise  Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
•  Cord Accommodation  Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
•  Terminal Accommodation  30A #10 AWG
•  Terminal Identification  Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
•  Flammability  HB or better per UL 94 or CSA 22.2 No. 0.6
•  Operating Temperatures  Maximum Continuous 75 C Minimum -40 C (w/o impact)
•  Moisture Resistance  IP20
•  Listings  FED SPEC UL/CSA
•  UPC Number  783585039657
•  Weight in LBs  0.4
