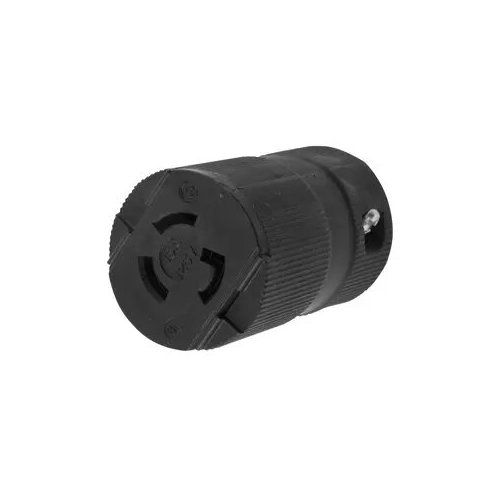

Hubbell Twist-Lock Devices 15A, 125V, 2 Pole, 3 Wire Grounding Valise Connector

About: Hubbell Twist-Lock Devices 15A, 125V, 2 Pole, 3 Wire Grounding Valise Connector

Locking Devices, Twist-Lock, Valise, Female Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Black Nylon.

• Two captive multiple drive assembly screws
• Totally insulated impact and crush resistant nylon body
• Powerful cord grips prevent conductor slippage and strain on wiring terminals

Specifications

• Housing -  Nylon
• Cable Inserts -  Polyphenylene Oxide
• Contacts -  Brass
• Terminal Screws -  #6-32 Brass (Phillips / Slotted / Robertson)
• Terminal Clamp -  Cold rolled steel – nickel plated
• Assembly Screws -  Steel - Zinc plated

General

• Application Heavy Duty Industrial
• Color Black
• Cord Range 0.220"-0.660"(5.6-16.8)
• Environmental Conditions Indoor Dry Unless Protected By Additional Means
• Insulation Insulated Body
• Item Type 15A Valise® Connector
• Material Nylon
• Material - Mounting Hardware Cord Mounted
• Number Of Poles 2-Pole
• OEM Brand Name Hubbell Wiring Device-Kellems
• Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact

Performance

• Electrical
  • Current Interrupting -  Certified for full rated current
  • Dielectric Voltage -  Withstands 2,000V minimum
• Mechanical
  • Terminal Accommodation -  #18 AWG - #12 AWG stranded copper wire only.
  • Terminal Identification -  Terminals identified in accordance with UL 498
• Environmental
  • Flammability -  HB or better per UL 94 or CSA 22.2 No. 0.6
  • Moisture Resistance -  IP20 Suitability
  • Operating Temperature -  Maximum continuous 75°C, minimum -40°C (w/o impact)
• Temperature Rating -  Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type -  Connector Body

Dimensions

• Display Size -  Standard
• Height -  2.59 in
• Length -  1.50 in
• Weight -  0.15 lb
• Width -  1.50 in

Electrical Ratings

• Amperage Rating -  15 A
• Connectivity -  Pressure Terminal Screws
• Current / Amperage Rating -  15 A
• Current Rating -  15 A
• Dielectric Strength -  Withstands 2,000V minimum
• Voltage Rating -  125 V
• Voltage Rating Description -  125 V

Conductor Related

• Cable Range -  0.220 - 0.660 in
• Number Of Wires -  3-Wire
• Wire Size -  #18 AWG to #12 AWG

Certifications and Compliance

• Industry Standard(s)
  • Certified to CSA C22.2 No.42
  • Fed.Spec. W-C-596
  • Listed to UL 498
• Nema Rating L5-15R
