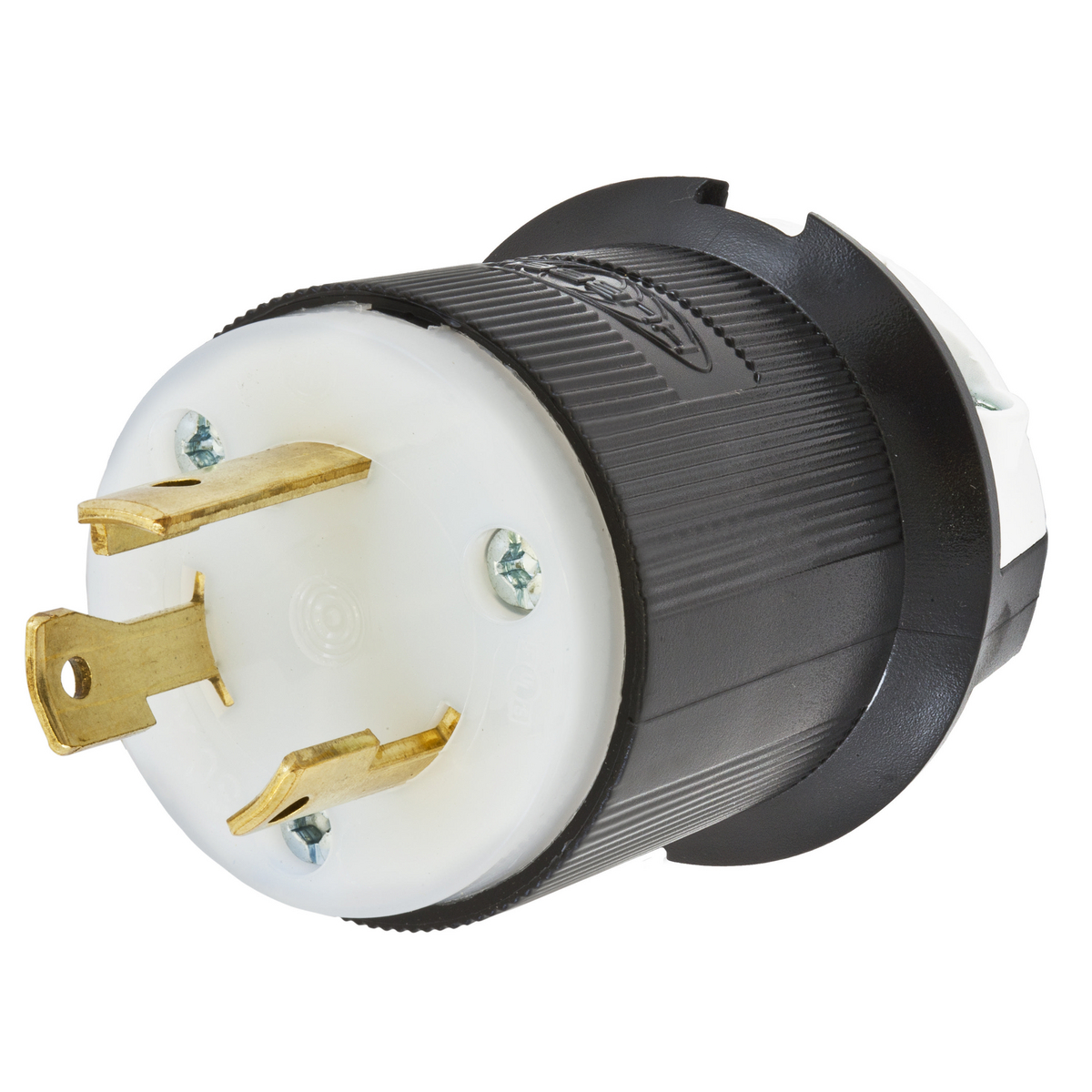

Hubbell HBL2611 Male Black Twist Lock 30a 125v 2P3W L5-30
Model: HBL2611
About: Hubbell HBL2611 Male Black Twist Lock 30a 125v 2P3W L5-30
Twist-Lock Plug
- Product Item Plug
- Wiring Scheme 2-Pole, 3-Wire Grounding
- Amperage 30A
- Voltage 125V AC
- NEMA Configuration L5-30P
- Item Style Insulgrip
- Device Color Black/White
- Horsepower 2
- Cord Dia. .360"-.930" (9-24)
- Blade Holder Material Natural White Nylon
- Terminal Retainer Material Clear polycarbonate
- Housing Material Black nylon
- Cord Clamp Material Natural (white) nylon
- Blade Material Brass
- Terminal Clamp Material .08" (2 )steel-nickel plated
- Terminal Screw Material #10-32 Brass (white finish on neutral screw when used) Multi-drive
- Ground Screw Material #10-32 Brass (green finish) Multi-drive
- Cord Clamp Screw Material Steel, zinc plated Multi-drive
- Body Holding Screw Material Steel, zinc plated Multi-drive
- Ratings Molded In or Stamped On
- Catalog No Permanently ink marked on product
- Dielectric Voltage Withstand 2,000V minimum
- Current Interrupting Certified for current interrupting at full rated current
- Temperature Rise Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
- Cord Accommodation Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
- Terminal Accommodation 30A #10 AWG
- Terminal Identification Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
- Flammability HB or better per UL 94 or CSA 22.2 No. 0.6
- Operating Temperatures Maximum Continuous 75 C Minimum -40 C (w/o impact)
- Moisture Resistance IP20
- Listings FED SPEC UL/CSA
- UPC Number 783585038735
- Weight in LBs 0.25
