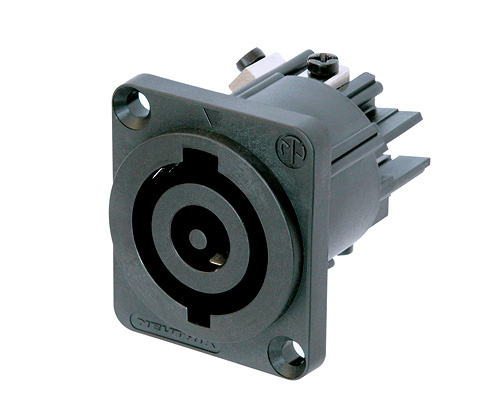

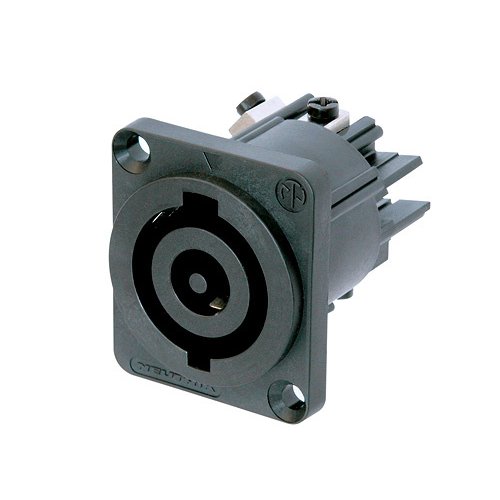

Neutrik NAC3MP-HC powerCON 32A Chassis Connector
Model: NAC3MP-HC
About: Neutrik NAC3MP-HC powerCON 32A Chassis Connector
powerCON 32 A chassis connector, power-in
The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.
Features & Benefits
- 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
- Premating contact for protective earth
- Fast and easy locking system to prevent unintentional disengagement
- Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
- Extremely robust and reliable
- VDE, UL, cUL and JET approved
Reviews: Neutrik NAC3MP-HC powerCON 32A Chassis Connector
Warranty: Neutrik NAC3MP-HC powerCON 32A Chassis Connector
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
