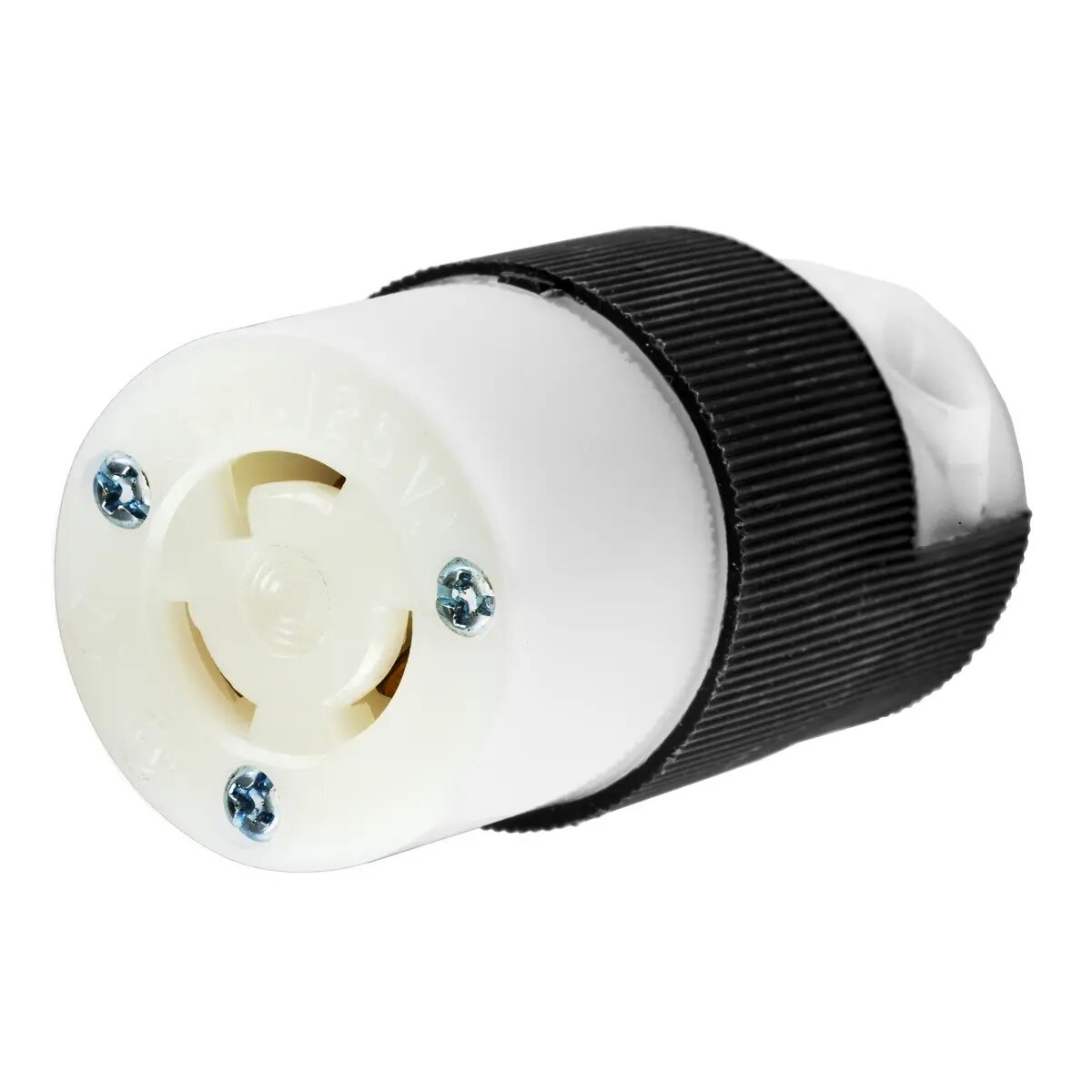

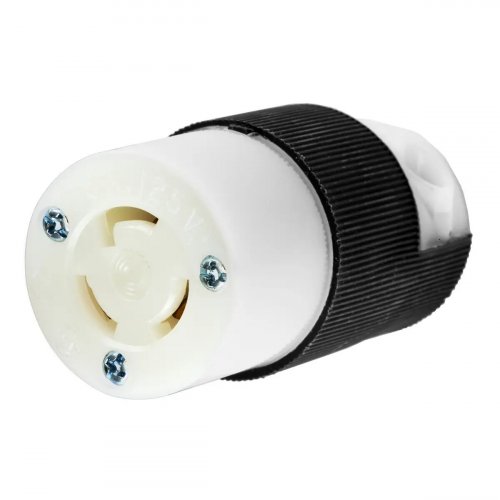

Hubbell Twist-Lock 15A 125V - Female

About: Hubbell Twist-Lock 15A 125V - Female

Locking Devices, Twist-Lock, Industrial, Female Insulgrip Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Black and White Nylon.

• Ribbed nylon housing provides secure, impact and chemical resistant grip
• Superior cord grip design protects terminations from excess strain
• Integral VARI-SIZE insert accommodates a wide range of cord diameters

Specifications

• Housing / Cord Clamp -  Nylon
• Terminal Retainer -  Clear polycarbonate
• Contacts -  Brass
• Terminal Screws -  #8-32 Brass (Phillips / Slotted / Robertson)
• Terminal Clamp -  Cold rolled steel – nickel plated
• Assembly Screws -  Steel - nickel plated

General

• Application -  Heavy Duty Industrial
• Color -  Noir, blanc
• Cord Range -  0.230"-0.720"(5.8-18.3)
• Environmental Conditions -  Indoor Dry Unless Protected By Additional Means
• Insulation -  Insulated Body
• Item Type -  15A Grounding Insulgrip Connector
• Material -  Nylon
• Material - Mounting Hardware -  Cord Mounted
• Number Of Poles -  2-Pole
• OEM Brand Name -  Hubbell Wiring Device-Kellems
• Operating Temperature -  Maximum continuous 75°C and minimum -40°C without Impact

Performance

• Electrical
  • Current Interrupting - Certified for current interrupting at full rated current
  • Dielectric Voltage - Withstands 2,000V minimum
• ​Mechanical
  • Terminal Accommodation - #18 - #10 AWG stranded copper wire only.
  • Terminal Identification - Terminals identified in accordance with UL 498
• Environmental
  • Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Moisture Resistance - IP20 Suitability
  • Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Temperature Rating -  Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type -  Connector Body

Dimensions

• Display Size -  Standard
• Height -  2.78 in
• Length -  1.53 in
• Weight -  0.15 lb
• Width -  1.53 in

Electrical Ratings

• Amperage Rating 15 A
• Connectivity Pressure Terminal Screws
• Current / Amperage Rating 15 A
• Current Rating 15 A
• Dielectric Strength Withstands 2,000V minimum
• Voltage Rating 125 V
• Voltage Rating Description 125 V

Conductor Related

• Cable Range 0.230 - 0.720 in
• Number Of Wires 3-Wire
• Wire Size #18 AWG to #10 AWG

Certifications and Compliance

• Industry Standard(s)
  • Certified to CSA C22.2 No.42
  • Fed.Spec. W-C-596
  • Listed to UL 498
• Nema Rating -  L5-15P
