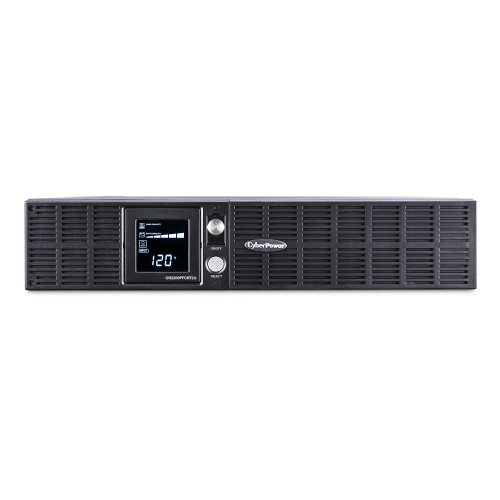

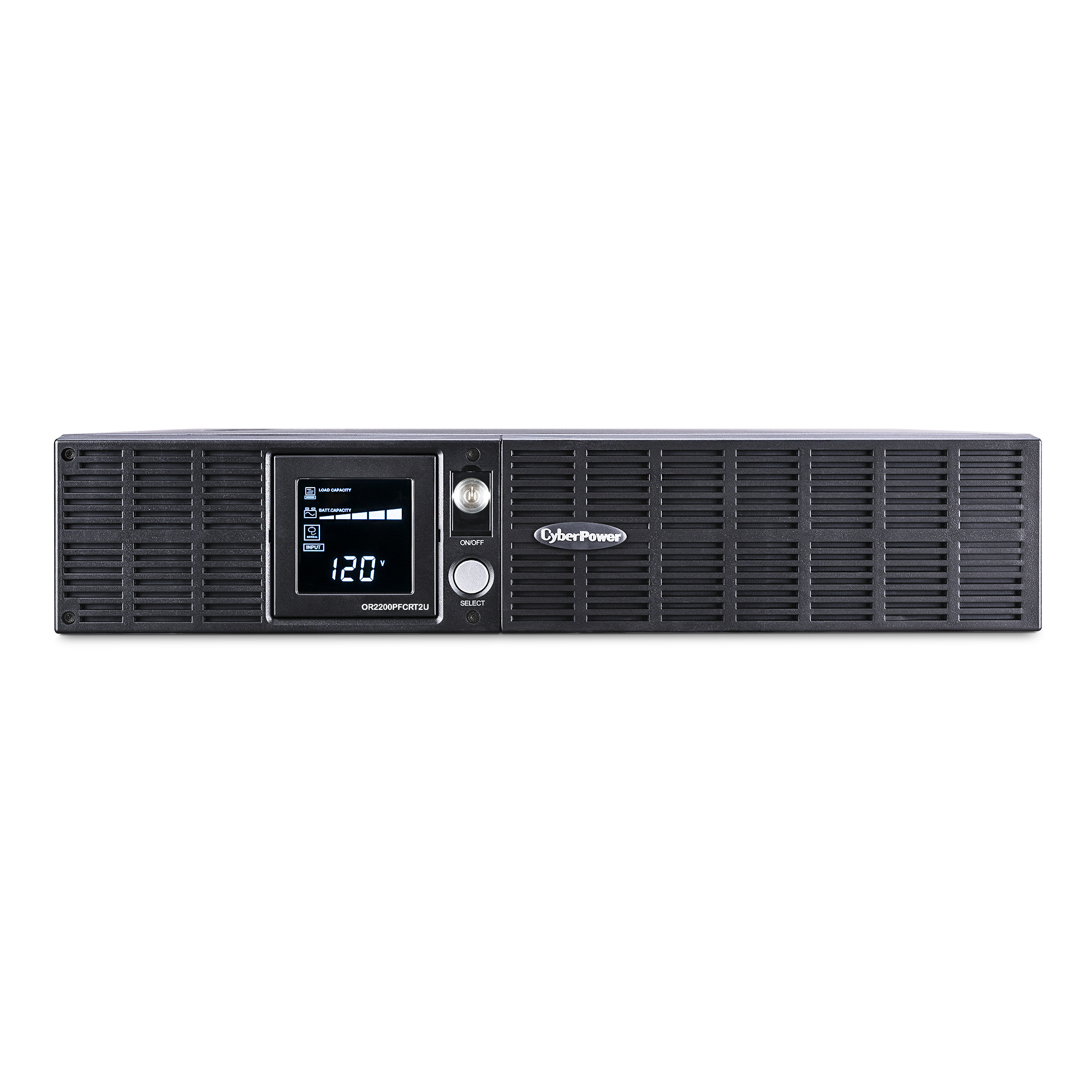

CyberPower 2000VA PFC Sinewave Rackmount UPS

About: CyberPower 2000VA PFC Sinewave Rackmount UPS

The CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Product Features

• Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
• Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• Data Line ProtectionPrevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
• Line Interactive TopologyExists when a line interactive UPS has an auto-transformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• Automatic Voltage Regulation (AVR)Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
• Sine Wave OutputProvides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
• GreenPower UPS™ Bypass DesignIs a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
• Rotatable Multifunction LCD PanelDisplays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.
• Ultra Quiet DesignMinimizes noise during operation for a quieter work environment.
• PowerPanel® Business Edition SoftwareProvides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here.

Three-Year Warranty

CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee

CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

Typical Applications

• Automatic Voltage Regulation
• Corporate Servers
• Network Devices
• Telecom Installations
• Workstations

General

• Energy Saving: GreenPower UPS™ Bypass Technology
• UPS Topology: Line Interactive

Battery

• Battery Quantity: 4
• Battery Size: 12 V / 9 Ah
• Battery Type: Sealed Lead-Acid Battery
• Battery Voltage: 24 VDC
• Hot Swappable: Yes
• Replacement Battery Cartridge: RB1290X4H (With serial numbers beginning with ‘GX9’), RB1290X4C (With serial numbers beginning with ‘GAM’ or ‘GAR’)
• Replacement Battery Cartridge Quantity: 1
• Runtime at Full Load: 4.5 min
• Runtime at Half Load: 15.5 min
• Typical Recharge Time: 10 Hours
• User Replaceable Battery: Yes

Input

• Adjustable Voltage Range: 86 – 142 VAC
• Circuit Breaker: 20 A
• Cord Length: 10 ft (3.0 m)
• Input Frequency Range: 57 Hz – 63 Hz
• Input Plug Type: NEMA 5-20P
• Input Voltage Range: 88 VAC – 139 VAC
• Nominal Input Voltage: 120 VAC
• Plug Style Right Angle: – 45° Offset

Output

• Automatic Voltage Regulation: Single Boost
• On AC WaveForm: Sine Wave
• On Battery Frequency: 60 Hz ± 1%
• On Battery Voltage: 120 VAC ± 5%
• On Battery Waveform: Sine Wave
• Outlet Type 2: – NEMA 5-20R, 6 – NEMA 5-15R
• Outlets – Battery & Surge Protected: 8
• Outlets – Total: 8
• Output Power Factor: 0.8
• Overload Protection: Internal Circuitry Limiting
• Typical Transfer Time: 4 ms
• USB Charge Port: No
• Under/Over-Voltage Correction: +14%
• VA :2000 VA
• Watts: 1540 W

Surge Protection & Filtering

• EMI/RFI Filtration: Yes
• Phone / Network Protection: RJ11/RJ45 1-In / 1-Out (Combo)
• Surge Suppression (Joules): 1470 J

Management & Communications

• Audible Alarms: Battery Mode, Low Battery, Overload
• Emergency Power Off (EPO) Port: Yes
• HID Compliant USB Port: Yes
• LCD: Multifunction LCD
• LED Indicators: Power On, Wiring Fault
• Management Cable: USB Cable
• Remote Management Card: None
• Serial Port: 1 Serial
• Software (Free Download): PowerPanel® Business

Physical

• Color: Black
• Form Factor: Rack / Tower
• Material of Construction: Metal
• Rack Height: 2U

Dimensions

• Physical Dimensions – (WxHxD) (cm): 43.21 x 8.89 x 38.91 (cm)
• Physical Dimensions – (WxHxD) (in): 17.01 x 3.5 x 15.32 (in)
• Physical Dimensions – (WxHxD) (mm): 432 x 89 x 389 (mm)
• Physical Weight (kg): 25.95
• Physical Weight (lb): 57.2

Dimensions – Shipping

• Shipping – Weight (kg): 9.64
• Shipping – Weight (lb): 21.25
• Shipping Dimensions – (WxHxD) (cm): 52.07 x 30.48 x 53.98 (cm)
• Shipping Dimensions – (WxHxD) (in): 20.5 x 12.0 x 21.25 (in)
• Shipping Dimensions – (WxHxD) (mm): 520.7 x 304.8 x 539.75 (mm)

Environmental

• Audible noise at 1.5M from surface of unit: 48.5 dBA
• On Battery Thermal Dissipation: 1278 BTU/hr
• Online Thermal Dissipation: 177.5 BTU/hr
• Operating Elevation: 0 – 10000 ft (0 – 3048 m)
• Operating Relative Humidity: 0 – 90 % (non-condensing)
• Operating Temperature: 32 – 104 °F (0 – 40 °C)
• Storage Elevation: 0 – 50000 ft (0 – 15239 m)
• Storage Relative Humidity: 0 – 95% (non-condensing)
• Storage Temperature: 5 – 113 °F (-15 – 45 °C)

Certifications

• Environmental: RoHS Compliant
• Safety: UL1778 5th Ed.

Warranty

• CEG Amount: $300000
• Connected Equipment Guarantee: Lifetime
• Extended Warranty Option: WEXT5YR-U4B
• Product Warranty: 3 Year Limited Warranty
