AVShop HDMI2.0 KVM Point to Point Extender over CAT6/6A/7 (RX/TX)

About: AVShop HDMI2.0 KVM Point to Point Extender over CAT6/6A/7 (RX/TX)

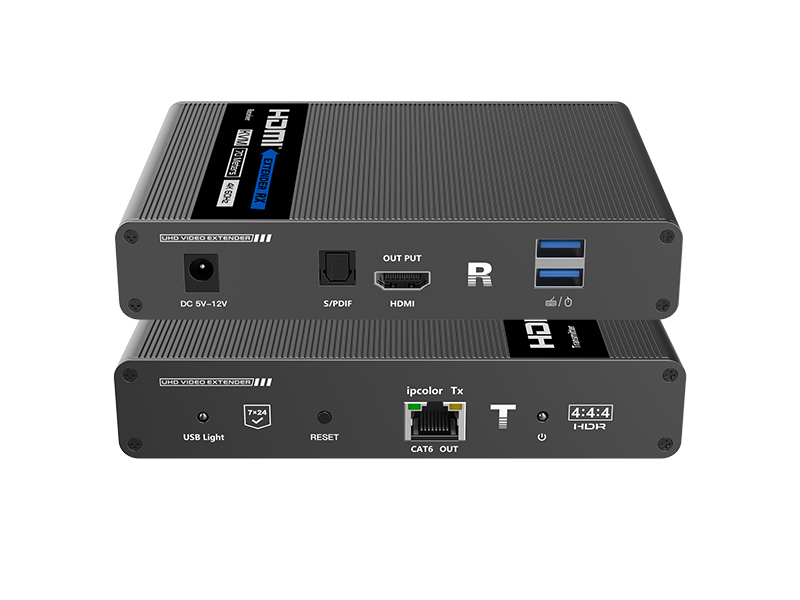

This HDMI Extender kit includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It has KVM function and It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc...

Features

• Zero-latency
• ipcolor technology
• One to one connection
• 4K@60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable
• The receiver can extract the digital audio from the transmitter through the S/PDIF port
• Supports audio formats (Dolby True HD 7.1 CH, Dolby Digital 5.1 CH)
• Supports HDR (YUV4:4:4), EDID passback
• Transmitter support one HDMI loop-out
• Support KVM function.
• Lighting protection, surge protection, ESD protection

Specification

• Power Supply:  Voltage Current DC5V-12V
• Power Consumption: TX<4W, RX<4W
• 0.5~1.5Vp-p (TMDS)
• HDMI Performance & Interference: HDMI Compliance HDMI 2.0
• HDCP Compliance HDCP 2.2
• HDMI Resolution:480i@60Hz, 480p@60Hz, S76i@S0Hz, 576p@50Hz,720p@S0/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
• 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960,1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900,1024x768, 800x600
• Supports audio formats: LPCM/DTS-HD/DTS-Audio/Dolby True HD 7.1 CH/Dolby Digital 5.1 CH
• Input & output TMDS signal: 0.7~1.2Vp-p (TMDS)
• Input & output DDC signal: 5Vp-p (TTL)
• Input cable length: ≤8m (AWG24)
• Output cable length: ≤8m (AWG24)
• Transmission Distance: CAT6/6A/7 ≤70m
• Protection Level: Electrostatic protection of the whole unit Contact discharge level 3
• Air discharge level 3 implementation of the standard: IEC61000-4-2
• Operating Environment:
• Working Temperature -20°C~60°C
• Storage Temperature -30°C~70°C
• Humidity (no condensation) 0%~90% RH
• Physical Properties:
• Dimensions (LxWxH) 150x107x28.4mm
• Material Aluminium
• Colour Black
• Weight TX: 260g, RX: 260g
