Kramer PT-571HDCP DVI (HDCP) over Twisted Pair Transmitter

Model: PT-571HDCP

Kramer PT-571HDCP DVI (HDCP) over Twisted Pair Transmitter
Kramer PT-571HDCP DVI (HDCP) over Twisted Pair Transmitter
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed



About: Kramer PT-571HDCP DVI (HDCP) over Twisted Pair Transmitter

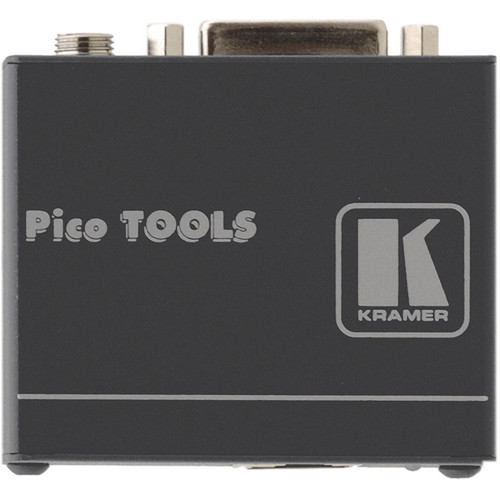

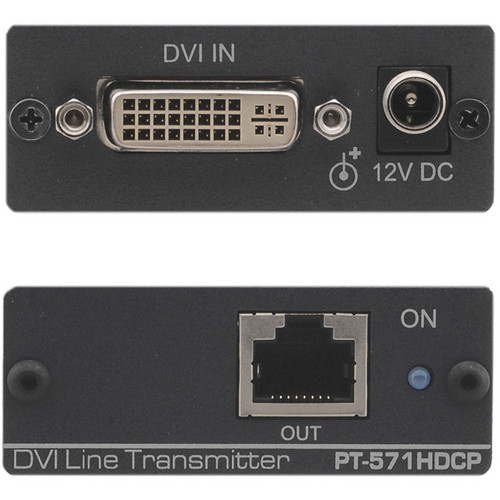

The PT-571HDCP is a DGKat™ twisted-pair transmitter for DVI signals. The PT-571HDCP converts the DVI to twisted pair signal and the PT-572HDCP+ converts the twisted pair signal back to a DVI signal. The PT-571HDCP-MD is certified for medical applications.

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel); WUXGA, 1920x1080p.
  • Certified for Medical Applications - According to IEC 60601−1−2 (Electromagnetic Compatibility), (PT−571HDCP−MD).
  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
  • System Range - Up to 90m (295ft) at SXGA, or up to 30m (98ft) at UXGA on shielded BC−DGKat524 cable. Up to 90m (295ft) at SXGA, or up to 70m (230ft) at UXGA on shielded BC−DGKat623 cable. Up to 100m (330ft) at SXGA, or up to 80m (265ft) at UXGA on shielded BC−DGKat7a23 cable.
  • Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • EDID PassThru - Passes EDID signals between the source and display.
  • Power Connect™ System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
  • Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.

UPC: 7291063011260

Reviews: Kramer PT-571HDCP DVI (HDCP) over Twisted Pair Transmitter

There are currently no product reviews.


Warranty: Kramer PT-571HDCP DVI (HDCP) over Twisted Pair Transmitter

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Limited warranty for seven (7) years from date of original purchase.
Fiber Optic cables have a one (1) year warranty, and Cobra products have a three (3) year warranty.

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
