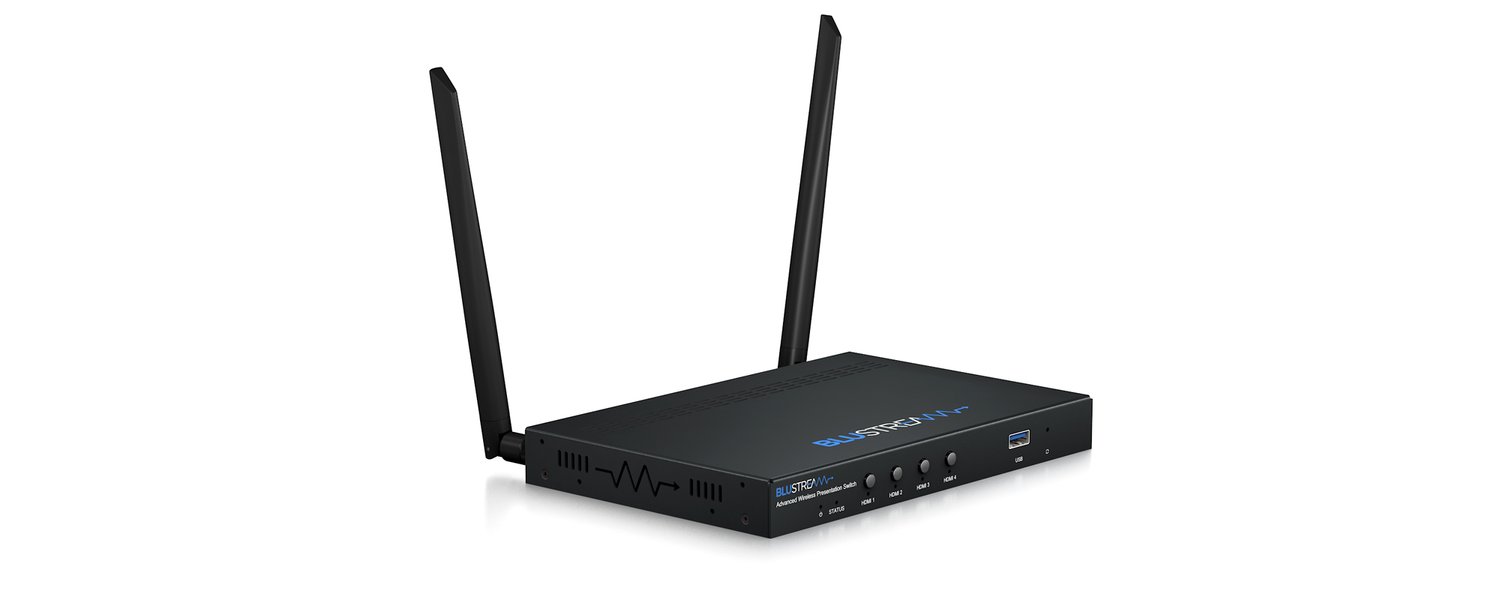

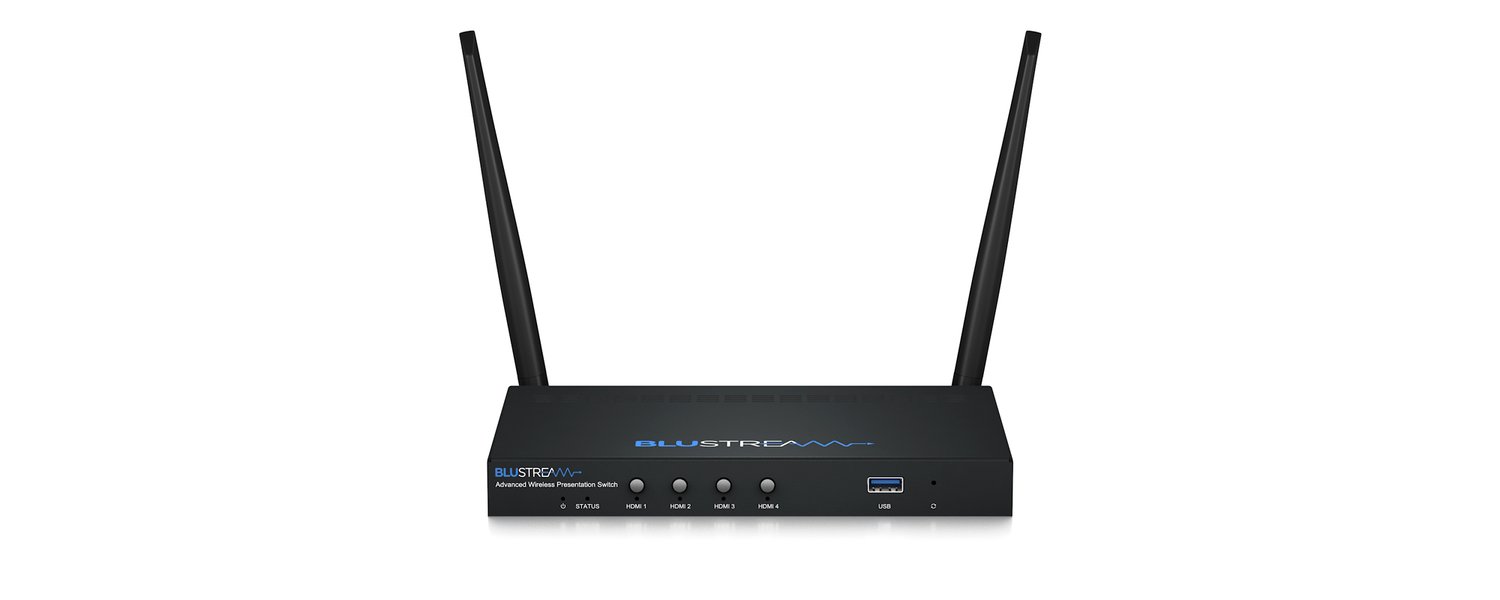

BLUSTREAM AMF41W 4x1 Advanced Wireless Presentation Switch

About: BLUSTREAM AMF41W 4x1 Advanced Wireless Presentation Switch

The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x HDMI, AirPlay and Miracast inputs to a single HDMI output.

The AMF41W provides enhanced features including localised 2.4/5G WiFi hotspot, seamless switching, multi-view presentation, video scaling, and web-GUI for control and configuration.

The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, TCP/IP, and where connected to a PoE switch, can be powered via PoE.

The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.

Features

• Features 4 x HDMI, AirPlay and Miracast inputs which can be switched to a single HDMI output
• Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracast local streaming to AMF41W
• Multi-view presentation with up to 7 concurrent video signals and configurable screen layout
• Seamless switching of sources in both single, or multi-view mode
• In-built video scaler with output timing up to 4K 60Hz 4:4:4
• HDMI inputs support resolutions up to 4K UHD 60Hz 4:2:0 / 4K 30Hz 4:4:4
• Supports AirPlay mirror and Miracast point-to-point mode (up to 1080p)
• Audio breakout to analogue L/R audio
• LAN connection for integration to existing network infrastructures
• Auto display on/off feature allowing control of display via RS-232*
• Web interface module for control and configuration of switch
• Control via front panel or TCP/IP with manual or auto source selection
• PoE (Power over Ethernet) to power unit from PoE switch
  • * RS-232 connectivity is for onward control of display or local device only

Specifications

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• Audio Output Connectors: 1 x 3.5mm stereo jack
• RS-232 serial port: 1 x 4-Pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• USB Connectors: 1 x USB Type A female
• WiFi: 2.4G & 5G
• Operating Temperature: 32°F to 113°F (0°C to +45°C)
• Storage Temperature: -4°F to 150°F (-25°C to +70°C)
• Power Supply: Class 1 802.3af PoE PD, or 12V/2A DC, screw type barrel connector
• Casing Dimensions (W x H x D): 8.46 x 0.98 x 5.55 inch (215 x 25 x 141mm)
• Shipping Weight: 3.31 lb (1.5 kg)

What's in the Box

• 1x AMF41W
• 1x 12V/2A DC power supply
• 1x 4-pin Phoenix connector (RS-232)
• 2x Antenna
• 1x Mounting kit
• 1x Quick reference guide
