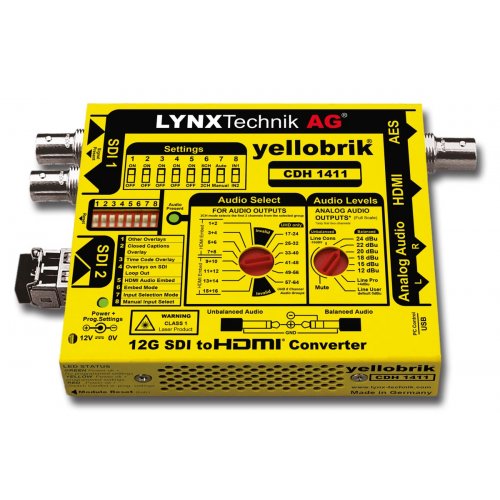

LYNXTechnik yellobrik CDH 1411 12G-SDI to HDMI Converter

About: LYNXTechnik yellobrik CDH 1411 12G-SDI to HDMI Converter

The CDH 1411 is a versatile, compact 12G-SDI to HDMI converter designed to aid monitoring and displaying uncompressed video signals in broadcast, post production and pro AV markets. Easily convert any compatible 12G-SDI video signal into the equivalent HDMI signal. Monitor Closed Captions, audio levels of embedded channels, and much more. Fiber connectivity options add SDI fiber transmission and/or SDI fiber reception using the integrated fiber SFP socket to transport your signal up to 10km (6.2 miles).

AES audio can be de-embedded from the 12G-SDI input onto the digital and analog audio outputs with full range presets. Any pair of selected audio channels can also be embedded into the HDMI output. Alternatively 8 channels selected from the input signal (8 audio groups in 64 channels) can be embedded into the HDMI output.

Various burn in features make the CDH 1411 a versatile monitoring tool. Individually selectable Timecode Burn-in, Closed Caption Burn-in, 16 channel Audio Metering, Safe Area Markers, and Metadata Display are just a few of the on-screen monitoring features.

The module is fully compatible with yelloGUI and LynxCentraal. It can be configured, controlled and updated using Windows or MacOS.

Key Features

• Support 12G/6G/3G/1.5G/SD-SDI Standards
• Up to 4K YCbCr/RGB 4:4:4
• Support HMDI EOTF for HDR and WCG
• Auto Color Range Detection via VPID
• Automatic Input Detection
• Analog and AES Audio Outputs
• Embedded Audio on HDMI
• Timecode, Metadata and Closed Caption burn-in
• 16 Channel on-screen audio level meter
• H/V delay & H flip with Safe Area markers

Video Input Digital

• 1x 12G-SDI BNC (12G/6G/3G/1.5G-SDI)
• YCbCr 4:2:2 10-bit
• YCbCr/RGB 4:4:4 10, 12-bit
• 3G-SDI Level A or B Dual Link

Video Output Digital

• 1x HDMI Type A connector*, HDMI v2.0b
• YCbCr 4:2:0 8, 10-bit
• YCbCr 4:2:2 10-bit
• YCbCr/RGB 4:4:4 8-bit

Audio Output Digital

• 1x AES BNC, AES3id 2 channels output
• Audio Output Analog
•  2x 3.5mm mini Jack sockets for Left and Right audio

Fiber I/O

• 1x Optional SFP
• 12G-SDI
• Duplex Single-mode
• LC/PC Connection
