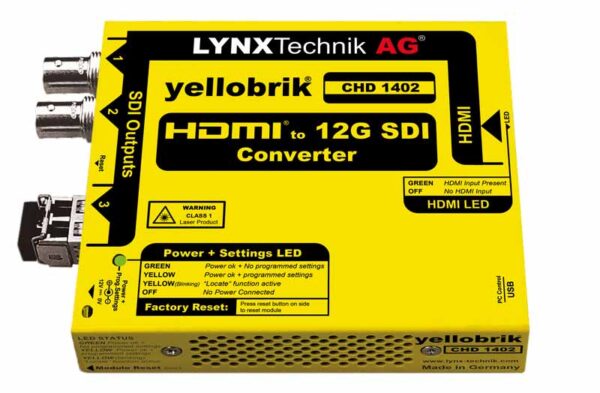

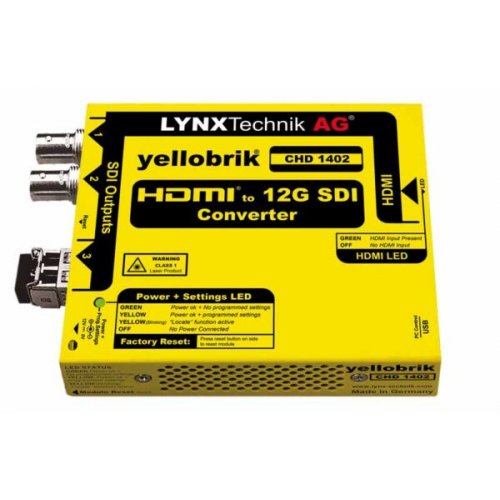

LYNXTechnik yellobrik CHD 1402 HDMI to 12G-SDI Converter
Model: CHD 1402
About: LYNXTechnik yellobrik CHD 1402 HDMI to 12G-SDI Converter
The CHD 1402 is a compact HDMI to 12G-SDI converter. It is an ideal solution for any application which requires a broadcast quality 12G-SDI signal derived from an external HDMI source. The PCM audio present in the HDMI stream will be embedded into the corresponding channels on the SDI output.
A 12G-SDI fiber output is provided with a selection of optional SFPs.
Note: For legal reasons, HDMI capture devices from LYNX Technik AG are designed not to capture, convert or transmit video or audio from HDCP copy-protected sources (e.g. Satellite receivers, Cable receivers, etc.).
The module is fully compatible with yelloGUI and LynxCentraal. It can be configured, controlled and updated using Windows or MacOS.
Key Features
- Supports 12G/6G/3G/1.5G/SD-SDI Standards
- 2x 12G-SDI BNC and 1x optional Fiber SFP outputs
- 1x HDMI 2.0b input
- HDMI Embedded PCM Audio Passes Transparently
- HDMI Status LED
Video Input Digital
- 1x HDMI Type A connector, HDMI v2.0b
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8,10,12-bit
Video Output Digital
- 2x 12G-SDI BNC (12G/6G/3G/1.5G/SD-SDI)
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2
- 8, 10, 12-bit
- 3G-SDI Level A or B Dual Link
Fiber I/O
- 1x Optional SFP
- 12G-SDI
- Duplex Single-mode
- LC/PC Connection
UPC: 4250479328129
