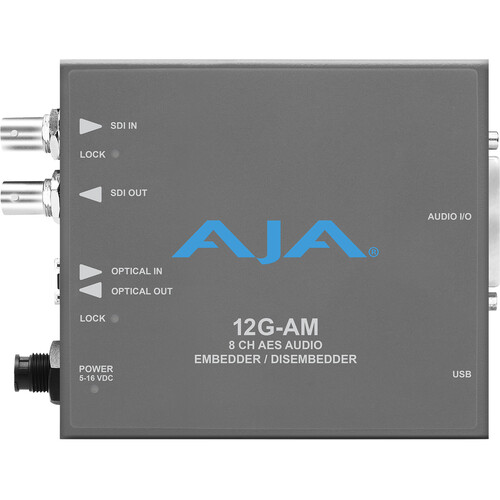

AJA 12G-AM 8-Channel 12G-SDI AES Audio Embedder/Disembedder
Model: 12G-AM
About: AJA 12G-AM 8-Channel 12G-SDI AES Audio Embedder/Disembedder
The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.
AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable.
The 12G-AM automatically detects and configures the input video standard.
Features
- 12G-SDI 8-Channel AES Embedder/Disembedder
- 12G-SDI Input and Output up to 4K/UltraHD
- 8-channel balanced AES audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
- AES audio Disembedding is always functional with four AES outputs
- AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
- Selectable AES audio levels
- Automatically detects and configures the input video standard
- 1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
- Small form factor allows for a wide variety of installation locations
- Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
- USB connectivity via AJA Mini-Config software
- DIP Switch configuration
- 5-16 VDC Power
- Five year warranty
UPC: 812321032505
Reviews: AJA 12G-AM 8-Channel 12G-SDI AES Audio Embedder/Disembedder
Warranty: AJA 12G-AM 8-Channel 12G-SDI AES Audio Embedder/Disembedder
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
