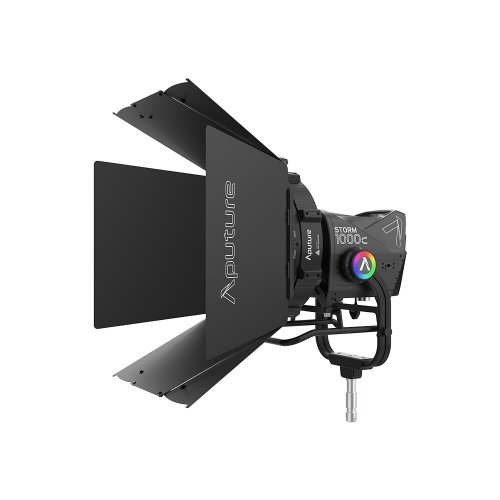

Aputure STORM 1000c Tunable Color Point Source Lamp Cine Kit

About: Aputure STORM 1000c Tunable Color Point Source Lamp Cine Kit

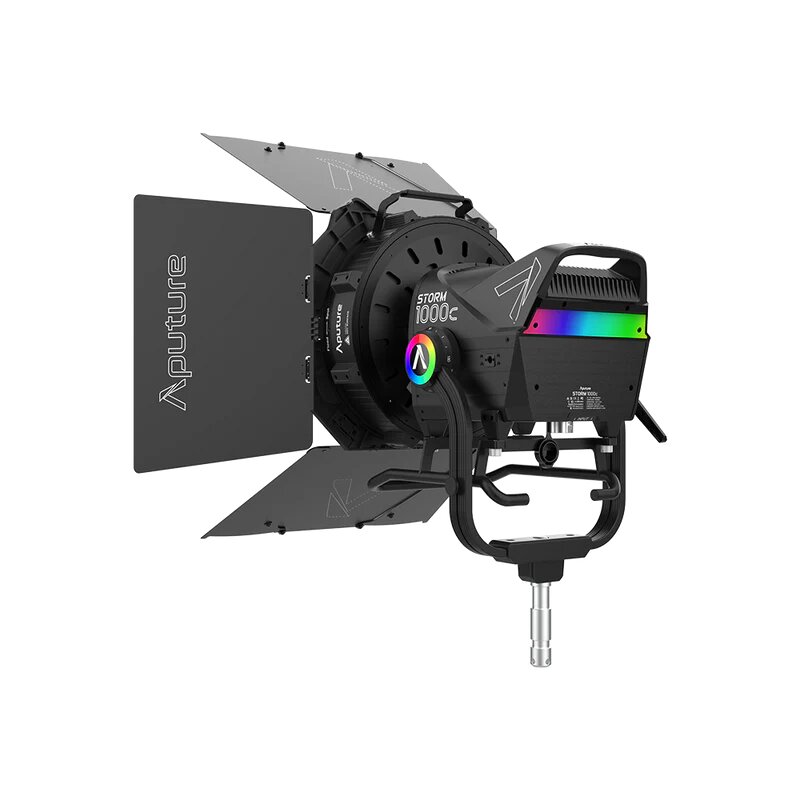

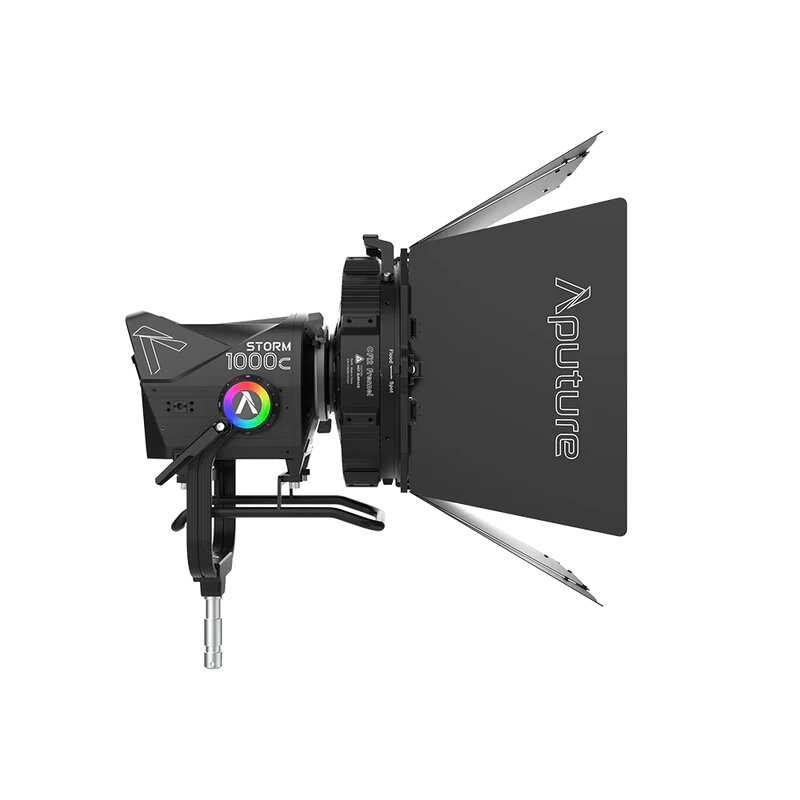

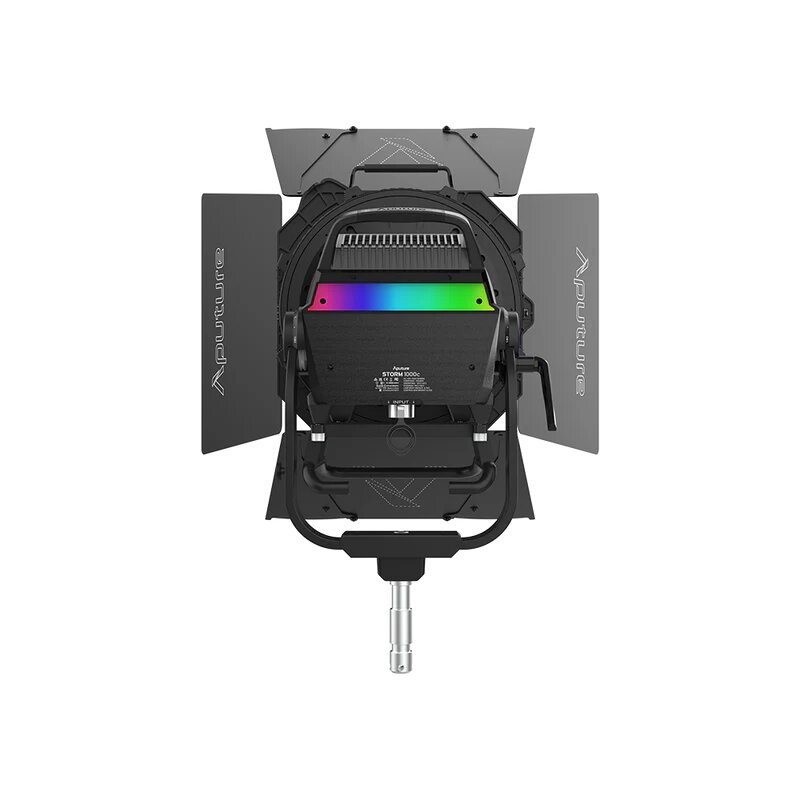

The STORM 1000c Cine Kit is a point-source fixture kit designed for professional lighting technicians, studios, and rental houses that serves as a standard way to deploy the STORM 1000c. This kit is based on the STORM 1000c, a 1000W color-tunable point source fixture featuring our revolutionary BLAIR-CG LED chipset and ProLock mount. With all the components of the STORM 1000c Cine Kit built together, the result is a fully integrated fixture unit that is easy to handle, quick to deploy, and efficient to store and transport.

• STORM 1000c With CF12 Fresnel, CF12 Barn Doors, and STORM 1000c/1200x Skid
• Designed to Minimize Fixture Footprint, Allowing Users to Efficiently Store Fully Built Fixture Unit On Truck Shelving, Head Carts, and Equipment Racks
• Fully Integrated Design; Individual Components Engineered to Work Together Perfectly
• Included 12-Inch Compact Bowens Mount Fresnel & Barn Doors Optimized for the STORM 1000c and 1200x with a 15º to 45º Spot-Flood Range
• Included Stainless Steel Skid Allows Entire Kit To Sit Flat On Surfaces Even With Head Cable Attached to Lamp Head
• 1,000W Color Tunable Point Source Fixture
• 61,000 Lux @3m (5600K) When Using CF12 at 15º Spot
• New Breakthrough Proprietary LED Chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green (BLAIR-CG)
• CCT Range of 1,800K-20,000K
• Advanced Diode Color Mixing Allows Fixture to More Effectively Utilize Each Diode’s Light Output
• Advanced White Point Control with Green/Magenta Color Correction (±G 100% Full ASC MITC Range)
• Ultra-High Color Accuracy: CRI≥97, TLCI≥97, CQS [CIE D5600]≥97, SSI [P3200]: 88, SSI [CIE D5600]: 89, TM-30 Rf (avg) 96, TM-30 Rg (avg) 100
• 90%+ Coverage of Rec.2020 Color Gamut Using x,y Mode
• Robust ProLock Locking Accessory Mount Design Allows For More Secure and Optically Aligned Modifier Accessory Connection
• IP65 Weather Resistance
• Multiple Control Methods: Sidus Link and Sidus Link Pro App, LumenRadio CRMX, Art-net & sACN via etherCON, 16-bit 5-Pin DMX512 In & Out

This Cine Kit includes the CF12 Fresnel, a compact Bowens mount fresnel with a 12-inch diameter lens and a spot-flood range of 15º-45º. The CF12 Fresnel was designed with the STORM 1000c’s light engine in mind. It efficiently intensifies the light output of the STORM 1000c by up to 9 times the brightness of its native output. It provides a smooth falloff from center to edge, all with a compact and lightweight form factor achieved by a dual-expanding focusing system. This unique system allows the CF12 to increase the distance between its rear and front elements by extending both ends of its barrel, not just the front like traditional fresnel accessories.

This Cine Kit also includes the CF12 Barn Doors, granting users the ability to shape the output of the entire fixture unit right out of the box. Its 8-leaf doors allow users to shape and cut the light at the lamp. The CF12 Barn Doors also incorporates a holder for a 13-inch metal scrim to control light output.

In addition to the CF12 Fresnel and Barn Doors, the STORM 1000c Cine Kit also includes the STORM 1000c/1200x Skid, a stainless-steel skid attachment that secures to the bottom of the STORM 1000c. It enables users to safely place their fixture flat on the ground without the risk of the fixture tipping over, even with a CF12 Fresnel attached to the front of the light. This skid features a cutout at the rear which allows for clearance of the STORM 1000c’s head cable when users are tilting the fixture up and down. With this Skid mounted, the STORM 1000c with its head cable, a CF12 Fresnel, and CF12 Barn Doors attached can sit safely on a head cart or shelf.

When output, crew and transportation efficiency, and color precision are of paramount importance, look no further than the Aputure STORM 1000c Cine Kit. Whether capturing the finest details on set or lighting dynamic scenes on location, the STORM 1000c Cine Kit ensures exceptional results and efficiency every time.

Specifications

• Included Fixture: STORM 1000c
• Light Engine: BLAIR-CG
• CCT: 1,800K – 20,000K
• Max Power Consumption: 1200W
• Max Power Output: 1000W
• Weather Resistance Rating: IP65
• Native COB Beam Angle: 67º
• AC PSU Operating Voltage: 100V ~ 240V / 50-60 Hz
• Operating Temperature: -20°C ~ 45°C / -4°F ~ 113°F
• Storage Temperature: -40°C ~ 80°C / -40°F ~ 176°F
• Wired Data Port Types
  • 1x 5-Pin XLR In
  • 1x 5-Pin XLR Out
  • 2x RJ45 LAN Ports
• Control Methods: On-board, Sidus Link App, Sidus Link Pro App, DMX, RDM, SACN, artNET, CRMX
• Included Reflector Beam Angle: 45º
• Included Fresnel: CF12 Fresnel
• Fresnel Beam Angle Range: 15º-45º
• Fresnel Lens Front Diameter 12in
• Included Barn Doors: CF12 Barn Doors
• Barn Doors Scrim Compatibility: 13in
• Included Skid: STORM 1000c/1200x Skid
• Skid Material: Stainless Steel
• Dimensions
  • Fully Assembled Cine Kit (Lamp Head, Fresnel, Barn Doors, Skid): 23.2 x 26.4 x 17.3in (74.0 x 67.0 x 43.9cm)
  • Lamp Head (With Yoke): 13.2 x 13.3 x 21.9in (33.5 x 33.8 x 55.7cm)
  • Control Box: 5.4 x 7.9 x 13.5in (13.6 x 20.0 x 34.4cm)
  • CF12 Fresnel: 15.1 x 14.6 x 5.0in (38.3 x 37.0 x 12.8cm)
  • CF12 Barn Doors: 17.3 x 14.9 x 1.9in (43.9 x 37.9 x 4.8cm)
  • Skid: 12.6 x 9.3 x 3.4in (31.9 x 23.6 x 8.6cm)
• Weight
  • Fully Assembled Cine Kit (Lamp Head, Fresnel, Barn Doors, Skid): 17.89kg / 39.45lbs
  • Lamp Head (With Yoke): 9.66kg / 21.30lbs
  • Control Box: 6.12kg / 13.49lbs
  • CF12 Fresnel: 4.72kg / 10.41lbs
  • CF12 Barn Doors: 2.41kg / 5.31lbs
  • Skid: 1.10kg / 2.43lbs

What's in the Box

• 1x STORM 1000c Lamp Head with Yoke
• 1x STORM 1000c Control Box
• 1x 45º Hyper Reflector
• 1x Neutrik PowerCon AC Power Cable (6m)
• 1x Head Cable (7.5m)
• 1x STORM 1000c Rolling Case
• 1x CF12 Fresnel
• 1x CF12 Fresnel Carrying Case
• 1x CF12 Barn Doors
• 1x STORM 1000c/1200x Skid
