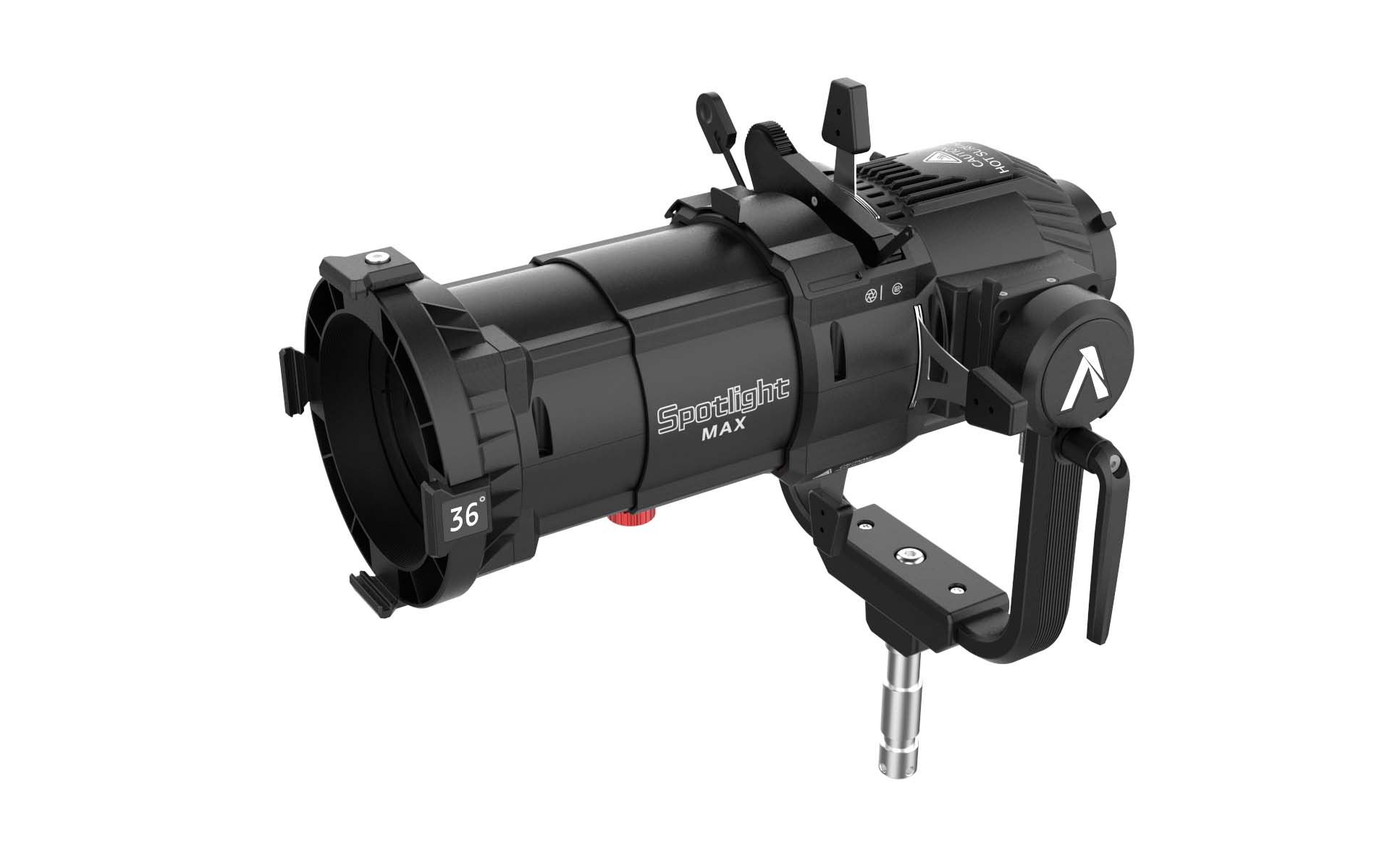

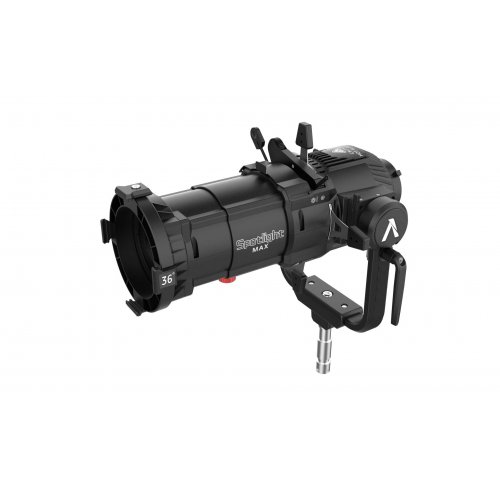

Aputure Spotlight Max Kit with 36 Degree Lens
Model: APXF043A31
About: Aputure Spotlight Max Kit with 36 Degree Lens
The Spotlight Max is a Bowens mount projection spotlight designed to be used with high-output LED point source lamps between 600W and 2600W of output such as the LS 600d Pro and the ElectroStorm XT26.
With custom precision optics, the Spotlight Max concentrates and efficiently blends light into a single, clean beam while maintaining its light source’s color accuracy and mitigating chromatic aberration. The use of telecentric optical elements in the Spotlight Max ensures that the difference of the output field angle and beam angle are minimized, resulting in an illumination circle with even edge-to-edge light distribution, without any hotspots.
Spotlight Max is available with 19°, 36°, and 50° lenses, allowing it to cover a wide range of light projection needs on set.
Included in the Spotlight Max Kit is a Rotatable Gobo Clip that accepts A-Size Gobos (3 included), B-Size Gobos, and Rosco metal and glass gobos.
The built-in four-leaf cutter gives users even more control when shaping light output. Using a separately available Spotlight Max Iris, users also may quickly reduce the illumination circle size without needing to change projection lenses or physically move the fixture set up.
Featuring a detachable yoke, the Spotlight Max can be easily be mounted in upright or underslung positions, allowing for maximum rigging flexibility.
To maximize compatibility, the Spotlight Max comes with a durable Bowens mount and may be used with a separately available ETC Lens Adapter, allowing the Spotlight Max to be paired with any Bowens mount fixture on the market and ETC projection lenses.
The Spotlight Max includes a reinforced hard rolling case, making transportation and storage easy and safe.
Features
- Projector Lens Modifier for High-Powered Bowens Mount LED Fixtures
- 19° / 36° / 50° Lenses Available
- Compatible with ETC Projection Lenses Via Separately Available ETC Lens Adapter
- Custom Precision Optics With Minimal Chromatic Aberration and Color Shift
- Efficient Light-Blending Optical Design for Compatibility with Full-Color Fixtures
- Telecentric Element Groups for Even Edge-to-Edge Light Distribution and Minimal Distortion of Illumination Circle
- Spotlight Max Iris Separately Available for Fine Tune Control of Illumination Circle Size
- Advanced Internal Matting Minimizes Light Leaks Within the Projector Barrel
- Detachable Yoke for Ultimate Rigging Flexibility
- Included Rotatable Gobo Clip Compatible with A and B-Size Gobos along with Rosco Metal and Glass Gobos
- Rotatable Gobo Clip Allows for Easy Adjustment of Light Texture
- Built-In 4-Leaf Cutter for Precise and Subtle Light Shaping
- Durable All-Metal Build
- Included Flight Case for Maximum Protection
Specifications
- Spotlight Max 36° Lens Photometrics
- LS 600d Pro
- 3m
- 5600K - 8200 lux / 762 fc
- 3200K - -
- 5m
- 5600K - 2952 lux / 274 fc
- 3200K - -
- 7m
- 5600K - 1506 lux / 140 fc
- 3200K - -
- 3m
- LS 600x Pro
- 3m
- 5600K - 5967 lux / 554 fc
- 3200K - 4333 lux / 403 fc
- 5m
- 5600K - 2148 lux / 200 fc
- 3200K - 1560 lux / 145 fc
- 7m
- 5600K - 1096 lux / 102 fc
- 3200K - 796 lux / 74 fc
- 3m
- LS 600c Pro
- 3m
- 5600K - 2859 lux / 266 fc
- 3200K - 2322 lux / 216 fc
- 5m
- 5600K - 1029 lux / 96 fc
- 3200K - 836 lux / 78 fc
- 7m
- 5600K - 525 lux / 49 fc
- 3200K - 427 lux / 40 fc
- 3m
- LS 1200d Pro
- 3m
- 5600K - 4233 lux / 393 fc
- 3200K - -
- 5m
- 5600K - 1524 lux / 142 fc
- 3200K - -
- 7m
- 5600K - 778 lux / 72 fc
- 3200K - -
- 3m
- LS 600d Pro
- Spotlight Max 36° Lens Weight Chart
Fixture Combination | Weight (Lamp Head + Spotlight Max 36°) | Weight (Lamp Head + Control Box + Spotlight Max 36°) |
---|---|---|
LS 600d | 15.99kg / 35.25lbs |
20.24kg / 44.62lbs |
LS 600d Pro | 15.94kg / 35.14lbs | 22.88kg / 50.44lbs |
LS 600x Pro |
16.57kg / 36.53lbs |
23.75kg / 52.36lbs |
LS 600c Pro | 17.26kg / 38.05lbs | 25.0kg / 55.12lbs |
LS 1200d Pro | 19.01kg / 41.91lbs |
28.74kg / 63.36lbs |
- General
- Dimensions
- Without Yoke - 19.0 x 9.8 x 9.8in (48.3 x 25.0 x 25.0cm)
- With Yoke - 19.3 x 9.8 x 19.7in (48.9 x 25.0 x 50.1cm)
- Weight - 24.91lbs (11.30kg)
- Dimensions
What’s in the Box
- 1x Spotlight Max
- 1x Spotlight Max Yoke
- 1x Spotlight Max 36° Lens
- 1x Rotatable Gobo Clip
- 3x A-Size Gobo
- 1x Rolling Hard Case
UPC: 6971842186723
