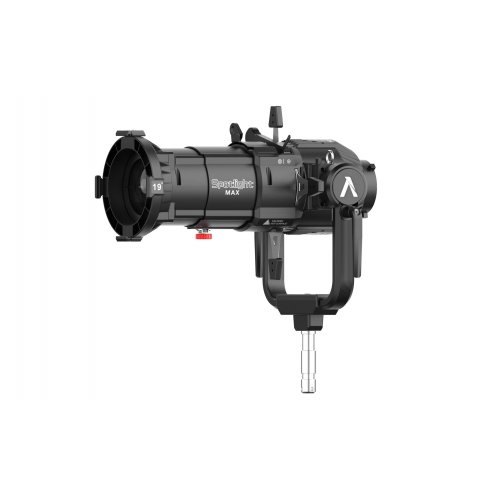

Aputure Spotlight Max Kit with 19 Degree Lens

Model: APXF043A30

Aputure Spotlight Max Kit with 19 Degree Lens
Aputure Spotlight Max Kit with 19 Degree Lens
Aputure Spotlight Max Kit with 19 Degree Lens
Aputure Spotlight Max Kit with 19 Degree Lens
Aputure Spotlight Max Kit with 19 Degree Lens
Aputure Spotlight Max Kit with 19 Degree Lens
Aputure Spotlight Max Kit with 19 Degree Lens
  • Shipping Charges Apply
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

w/ 19° Lens$1,890.00
w/ 36° Lens$1,890.00
w/ 50° Lens$1,890.00


About: Aputure Spotlight Max Kit with 19 Degree Lens

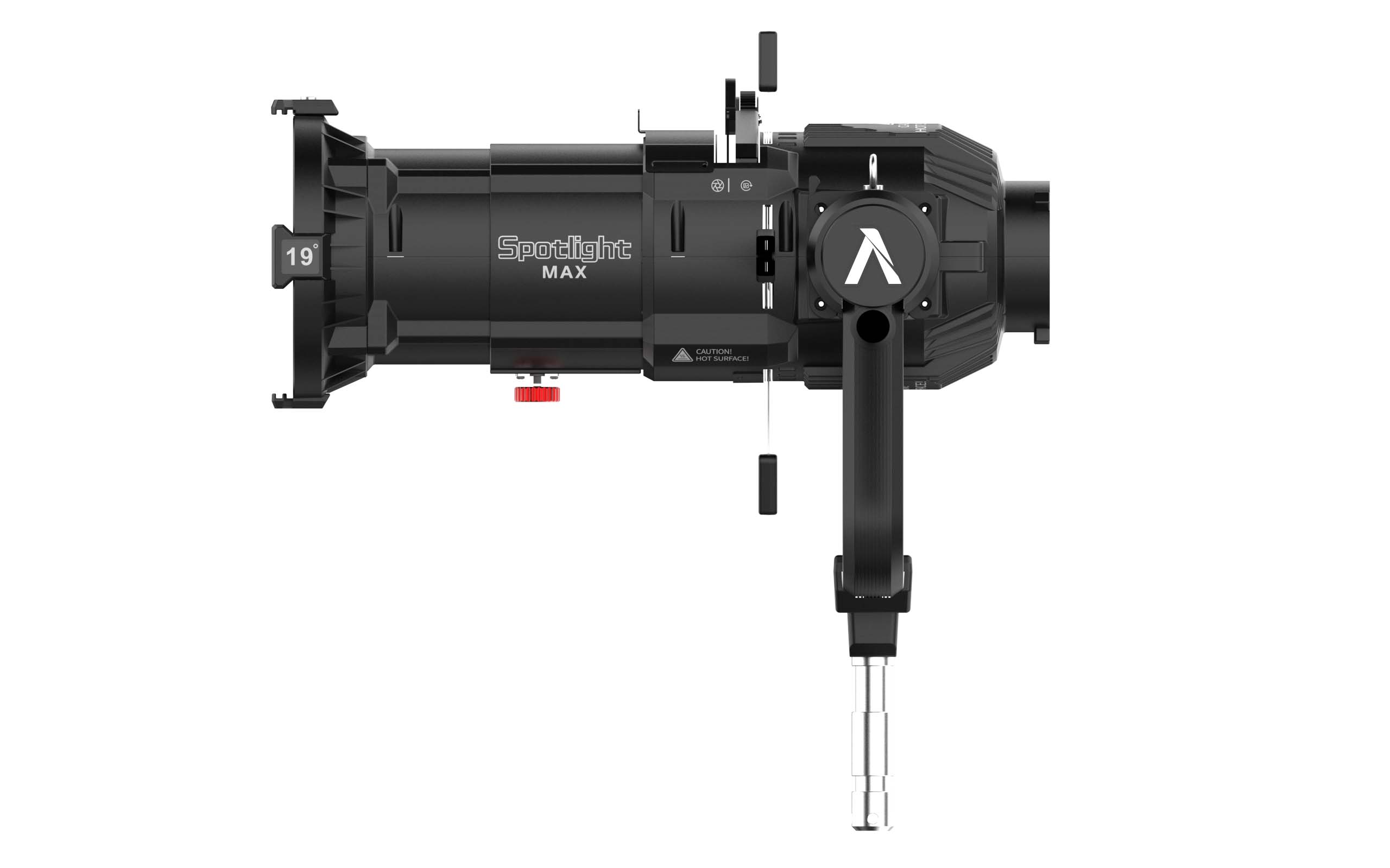

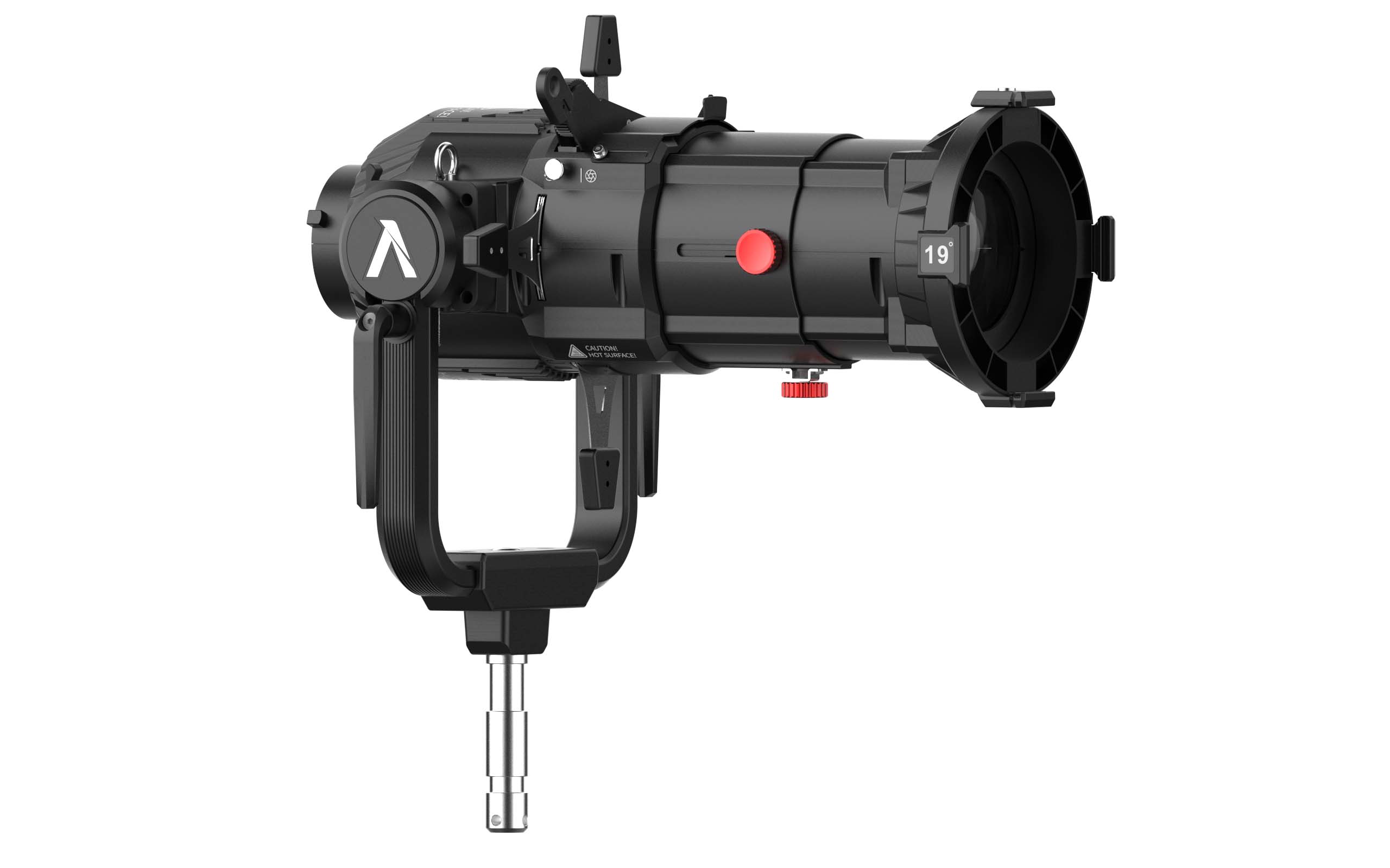

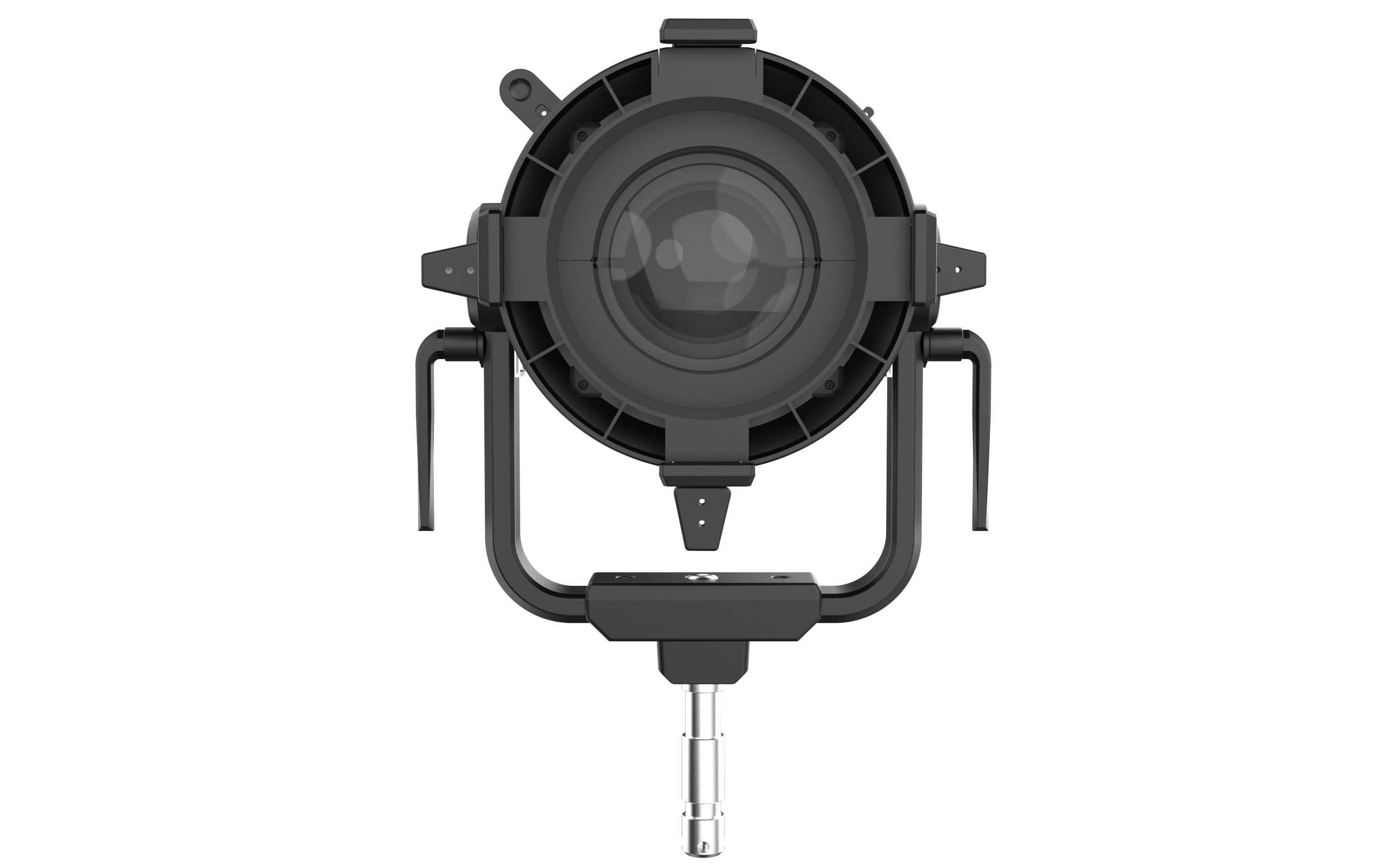

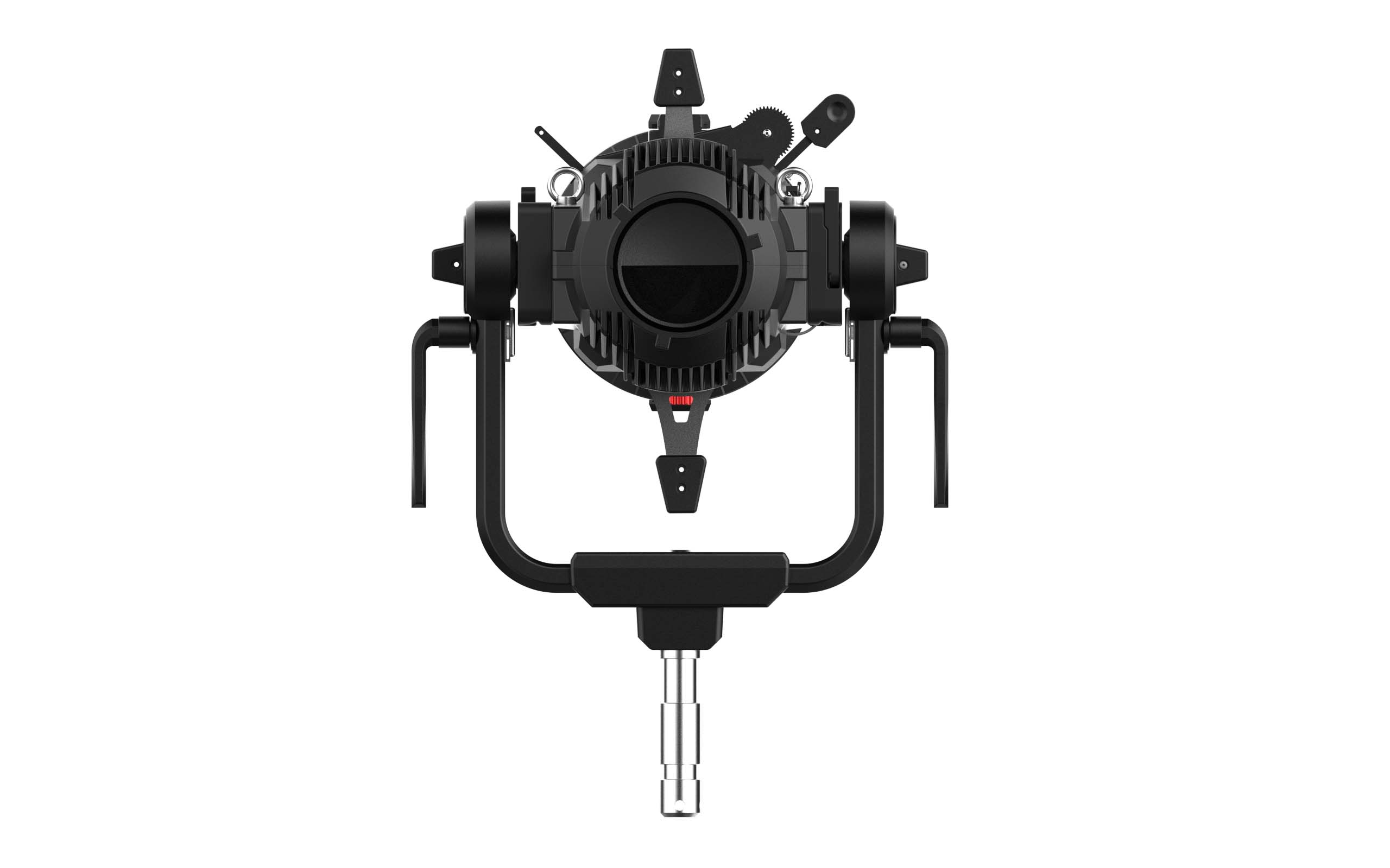

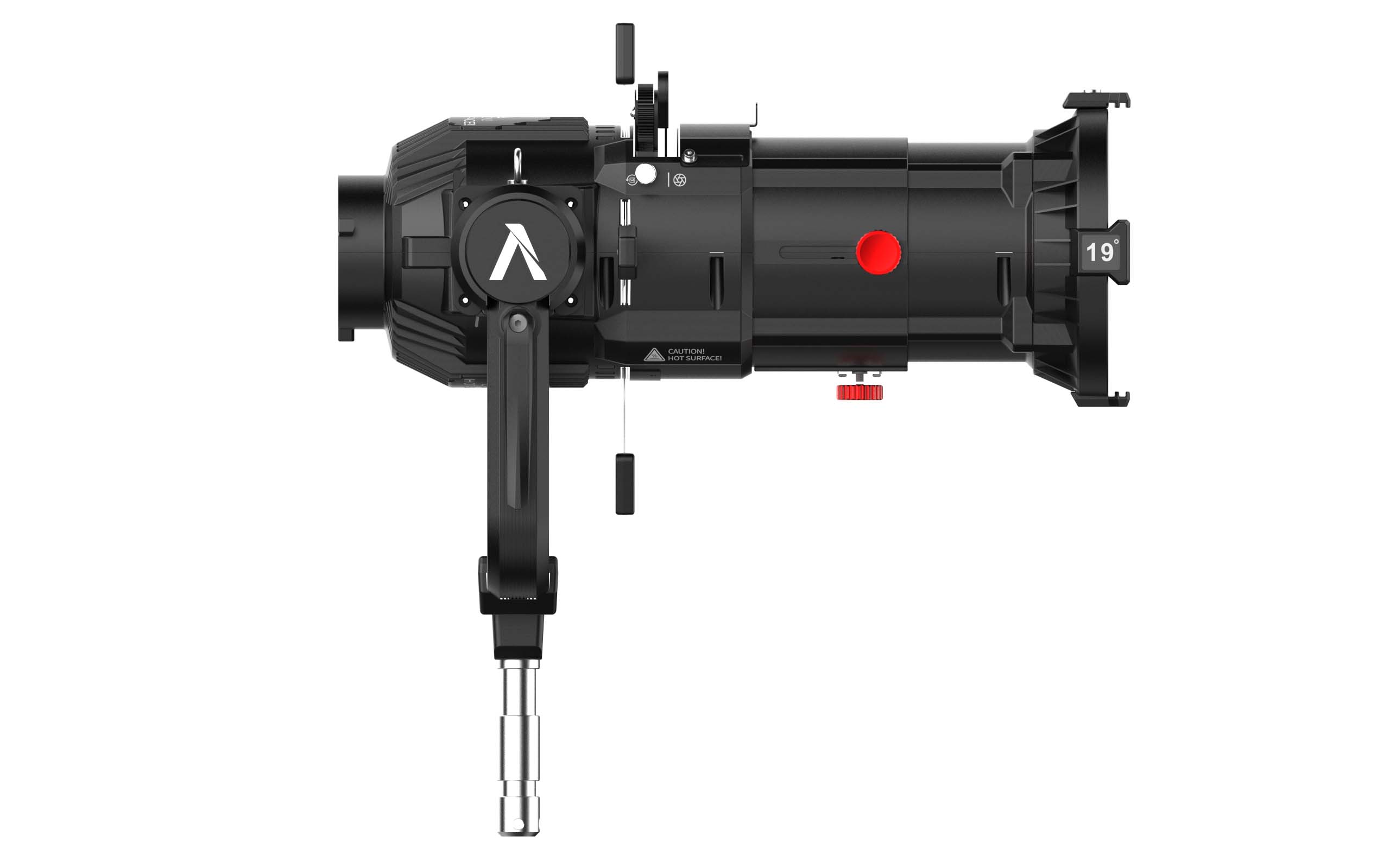

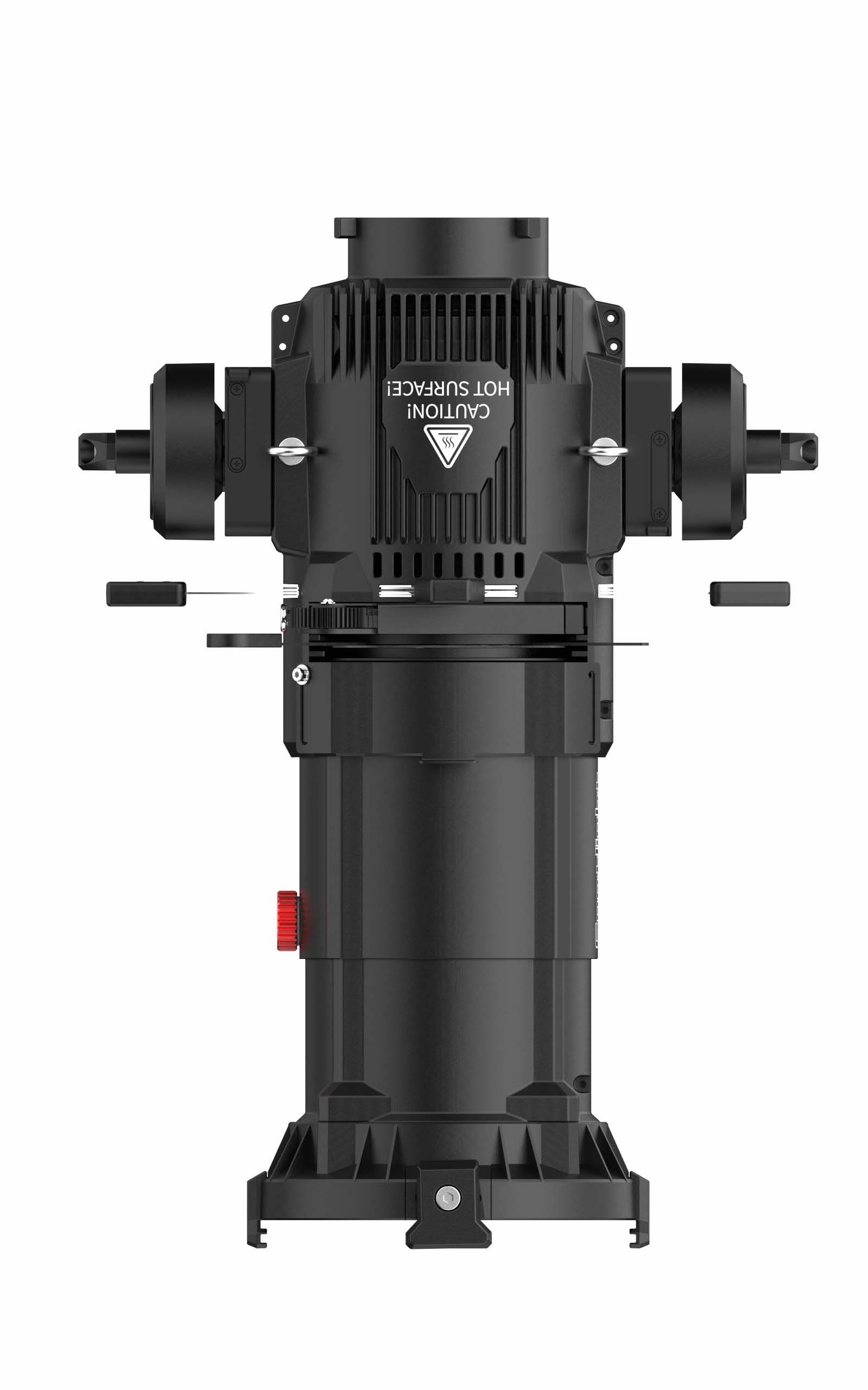

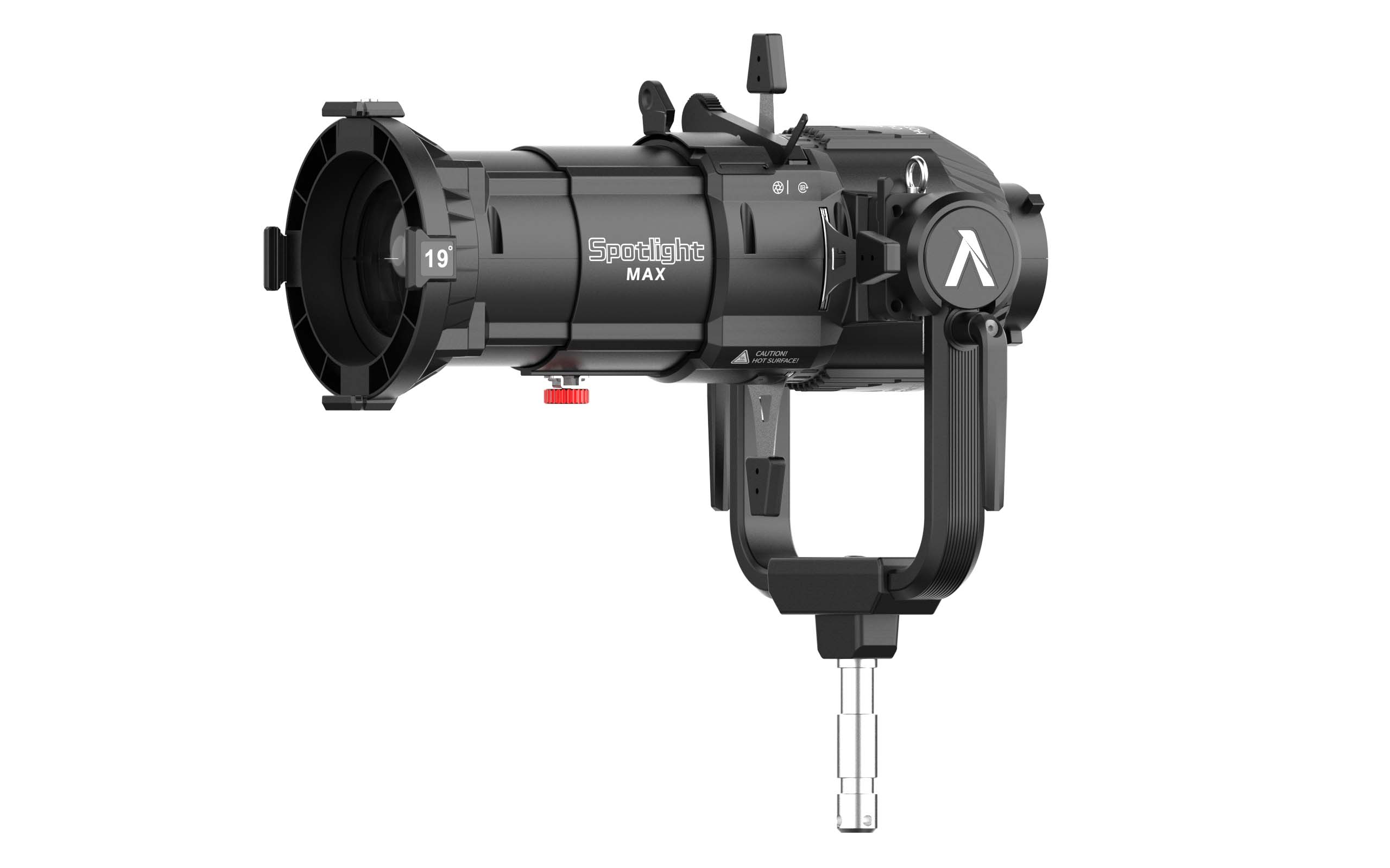

The Spotlight Max is a Bowens mount projection spotlight designed to be used with high-output LED point source lamps between 600W and 2600W of output such as the LS 600d Pro and the ElectroStorm XT26.

With custom precision optics, the Spotlight Max concentrates and efficiently blends light into a single, clean beam while maintaining its light source’s color accuracy and mitigating chromatic aberration. The use of telecentric optical elements in the Spotlight Max ensures that the difference of the output field angle and beam angle are minimized, resulting in an illumination circle with even edge-to-edge light distribution, without any hotspots.

Spotlight Max is available with 19°, 36°, and 50° lenses, allowing it to cover a wide range of light projection needs on set.

Included in the Spotlight Max Kit is a Rotatable Gobo Clip that accepts A-Size Gobos (3 included), B-Size Gobos, and Rosco metal and glass gobos.

The built-in four-leaf cutter gives users even more control when shaping light output. Using a separately available Spotlight Max Iris, users also may quickly reduce the illumination circle size without needing to change projection lenses or physically move the fixture set up.

Featuring a detachable yoke, the Spotlight Max can be easily be mounted in upright or underslung positions, allowing for maximum rigging flexibility.

To maximize compatibility, the Spotlight Max comes with a durable Bowens mount and may be used with a separately available ETC Lens Adapter, allowing the Spotlight Max to be paired with any Bowens mount fixture on the market and ETC projection lenses.

The Spotlight Max includes a reinforced hard rolling case, making transportation and storage easy and safe.

Features

  • Projector Lens Modifier for High-Powered Bowens Mount LED Fixtures
  • 19° / 36° / 50° Lenses Available
  • Compatible with ETC Projection Lenses Via Separately Available ETC Lens Adapter
  • Custom Precision Optics With Minimal Chromatic Aberration and Color Shift
  • Efficient Light-Blending Optical Design for Compatibility with Full-Color Fixtures
  • Telecentric Element Groups for Even Edge-to-Edge Light Distribution and Minimal Distortion of Illumination Circle
  • Spotlight Max Iris Separately Available for Fine Tune Control of Illumination Circle Size
  • Advanced Internal Matting Minimizes Light Leaks Within the Projector Barrel
  • Detachable Yoke for Ultimate Rigging Flexibility
  • Included Rotatable Gobo Clip Compatible with A and B-Size Gobos along with Rosco Metal and Glass Gobos
  • Rotatable Gobo Clip Allows for Easy Adjustment of Light Texture
  • Built-In 4-Leaf Cutter for Precise and Subtle Light Shaping
  • Durable All-Metal Build
  • Included Flight Case for Maximum Protection

Specifications

  • Spotlight Max 19° Lens Photometrics
    • LS 600d Pro
      • 3m
        • 5600K - 23,100 lux / 2,146 fc
        • 3200K - -
      • 5m
        • 5600K - 8,316 lux / 773 fc
        • 3200K - -
      • 7m
        • 5600K - 4,243 lux / 394 fc
        • 3200K - -
    • LS 600x Pro
      • 3m
        • 5600K - 14,778 lux / 1,373 fc
        • 3200K - 10,878 lux / 1,011 fc
      • 5m
        • 5600K - 5,320 lux / 494 fc
        • 3200K - 3,916 lux / 364 fc
      • 7m
        • 5600K - 2,714 lux / 252 fc
        • 3200K - 1,998 lux / 186 fc
    • LS 600c Pro
      • 3m
        • 5600K - 6,422 lux / 597 fc
        • 3200K - 5,289 lux / 491 fc
      • 5m
        • 5600K - 2,312 lux / 215 fc
        • 3200K - 1,904 lux / 177 fc
      • 7m
        • 5600K - 1,180 lux / 110 fc
        • 3200K - 971 lux / 90 fc
    • LS 1200d Pro
      • 3m
        • 5600K - 29,033 lux / 2,697 fc
        • 3200K - -
      • 5m
        • 5600K - 10,452 lux / 971 fc
        • 3200K - -
      • 7m
        • 5600K - 5,333 lux / 496 fc
        • 3200K - -
  • Spotlight Max 19° Lens Weight Chart
Fixture Combination Weight (Lamp Head + Spotlight Max 19°) Weight (Lamp Head + Control Box + Spotlight Max 19°)
LS 600d 17.13kg / 37.77lbs

21.38kg / 47.13lbs

LS 600d Pro 17.08kg / 37.65lbs 24.02kg / 52.96lbs
LS 600x Pro

17.71kg / 39.04lbs

24.89kg / 54.87lbs
LS 600c Pro 18.40kg / 40.57lbs 26.14kg / 57.63lbs
LS 1200d Pro 21.55kg / 47.51lbs

29.88kg / 65.87lbs

  • Spotlight Max Dimensions
    • Without Yoke - 19.0 x 9.8 x 9.8in (48.3 x 25.0 x 25.0cm)
    • With Yoke - 19.3 x 9.8 x 19.7in (48.9 x 25.0 x 50.1cm)
  • Weight - 27.43lbs (12.44kg)

What’s in the Box

  • 1x Spotlight Max
  • 1x Spotlight Max Yoke
  • 1x Spotlight Max 19° Lens
  • 1x Rotatable Gobo Clip
  • 3x A-Size Gobo
  • 1x Rolling Hard Case

UPC: 6971842186716
