Aputure Spotlight Max 19 Degree Lens

About: Aputure Spotlight Max 19 Degree Lens

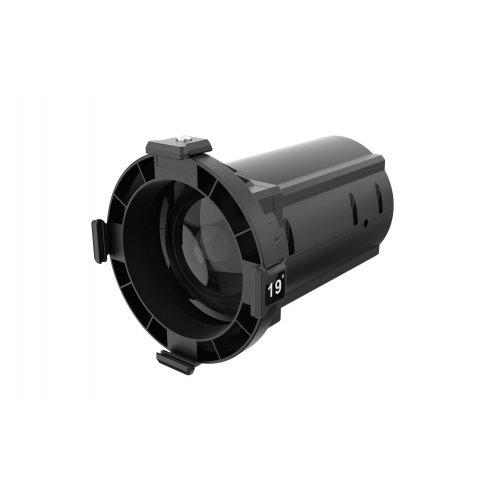

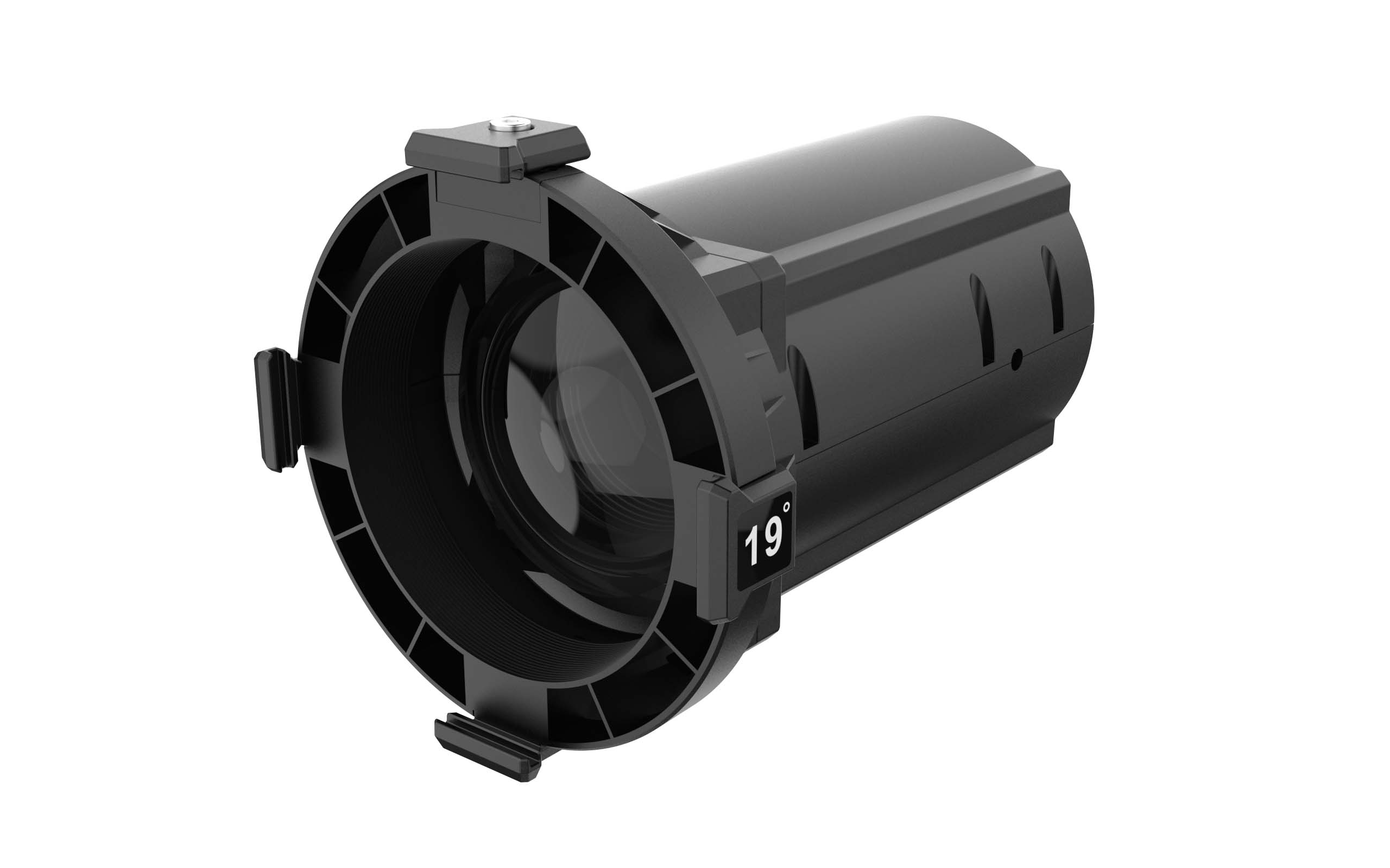

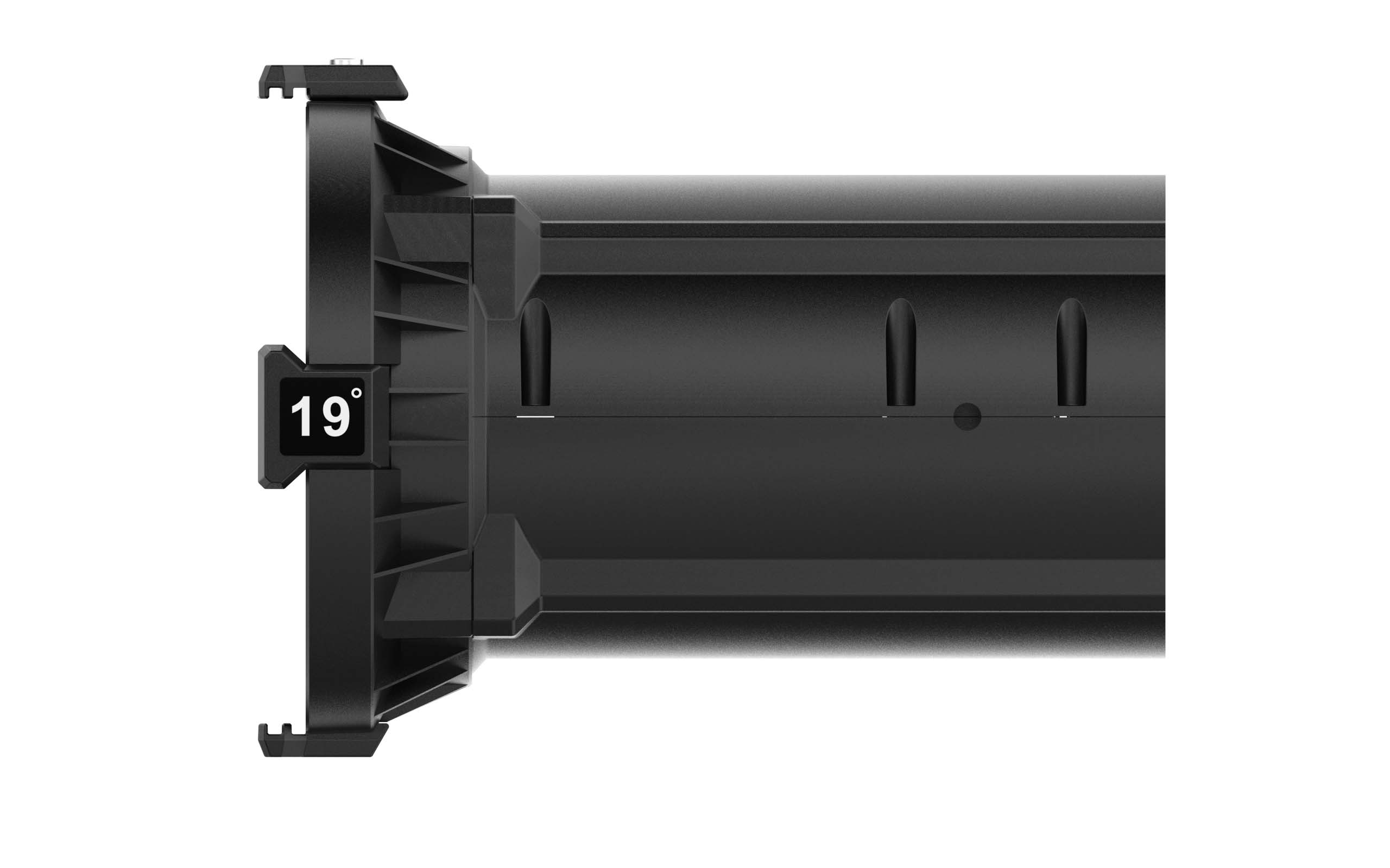

The Spotlight Max 19° Lens is a narrow-angle projection spotlight lens designed to be used with the Spotlight Max.

With custom precision optics, the Spotlight Max 19° Lens efficiently concentrates and blends light into a single tight and clean beam while

maintaining its light source’s color accuracy and mitigating chromatic aberration. In addition, the 19° Lens intensifies its light engine’s output and dramatically increases the throw of the fixture, allowing subjects to be illuminated from far distances.

The use of telecentric optical elements in the 19° Lens and the Spotlight Max ensures that the difference of the output field angle and beam angle are minimized, resulting in an illumination circle with even edge-to-edge light distribution without hotspots.

The Spotlight Max 19° Lens comes in a protective soft carrying case, making transportation and storage a breeze.

Features

• 19° Narrow-Angle Projector Lens for Spotlight Max
• Optimized for High-Powered LED Fixtures
• Custom Precision Optics With Minimal Chromatic Aberration and Color Shift
• Efficient Light-Blending Optical Design for Compatibility with Full- Color Fixtures
• Telecentric Element Groups for Even Edge-to-Edge Light Distribution and Minimal Distortion of Illumination Circle
• Durable All-Metal Build
• Included Protective Soft Case

Specifications

• Spotlight Max 19° Lens Photometrics
  • LS 600d Pro
    • 3m
      • 5600K - 23,100 lux / 2,146 fc
      • 3200K - -
    • 5m
      • 5600K - 8,316 lux / 773 fc
      • 3200K - -
    • 7m
      • 5600K - 4,243 lux / 394 fc
      • 3200K - -
  • LS 600x Pro
    • 3m
      • 5600K - 14,778 lux / 1,373 fc
      • 3200K - 10,878 lux / 1,011 fc
    • 5m
      • 5600K - 5,320 lux / 494 fc
      • 3200K - 3,916 lux / 364 fc
    • 7m
      • 5600K - 2,714 lux / 252 fc
      • 3200K - 1,998 lux / 186 fc
  • LS 600c Pro
    • 3m
      • 5600K - 6,422 lux / 597 fc
      • 3200K - 5,289 lux / 491 fc
    • 5m
      • 5600K - 2,312 lux / 215 fc
      • 3200K - 1,904 lux / 177 fc
    • 7m
      • 5600K - 1,180 lux / 110 fc
      • 3200K - 971 lux / 90 fc
  • LS 1200d Pro
    • 3m
      • 5600K - 29,033 lux / 2,697 fc
      • 3200K - -
    • 5m
      • 5600K - 10,452 lux / 971 fc
      • 3200K - -
    • 7m
      • 5600K - 5,333 lux / 496 fc
      • 3200K - -
• Dimensions - 8.1 x 7.8 x 9.72 in (20.5 x 19.9 x 24.7 cm)
• Weight - 10.6 lbs (4.81kg)

What’s in the Box

• Spotlight Max 19° Lens
• Carrying Case
