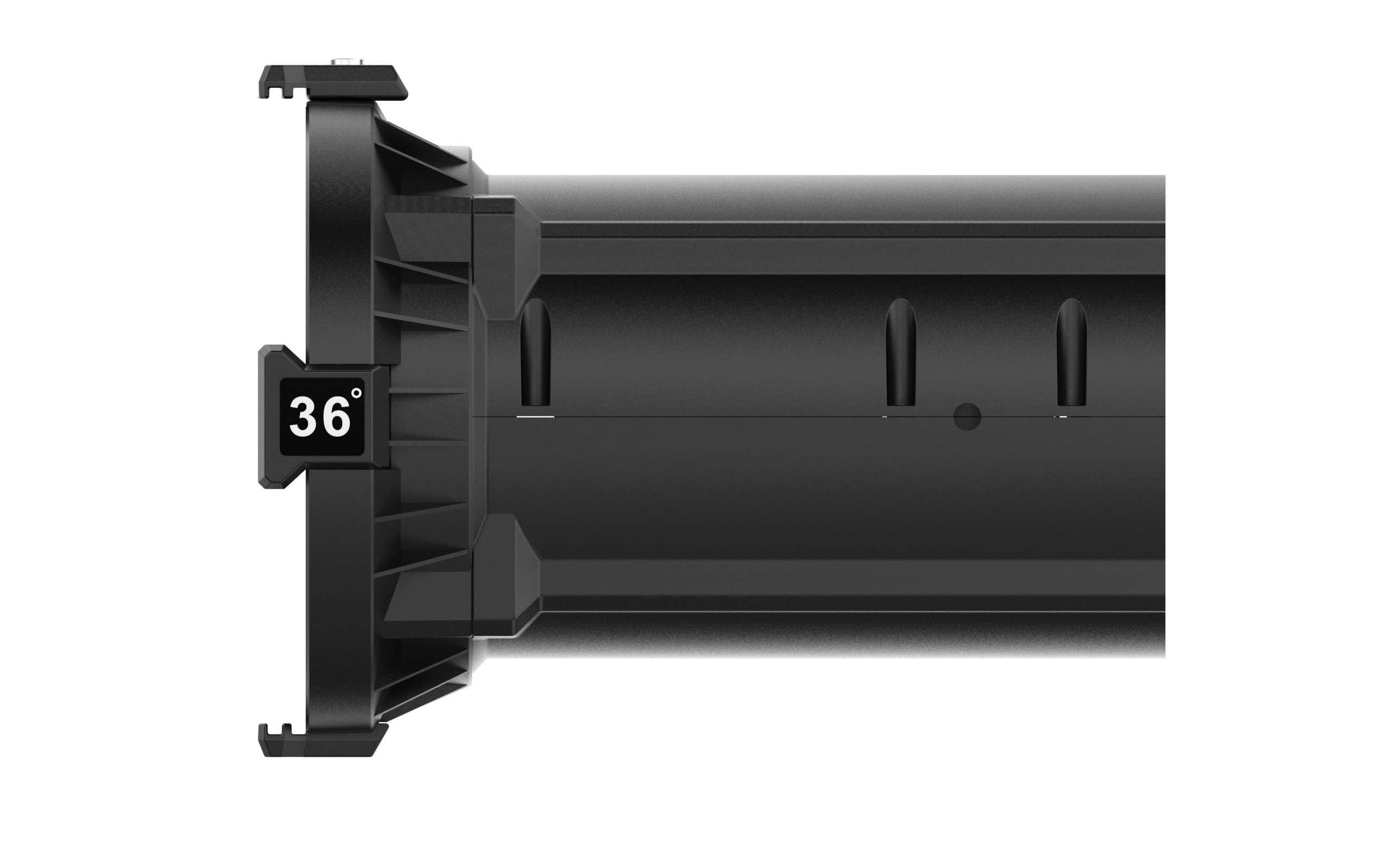

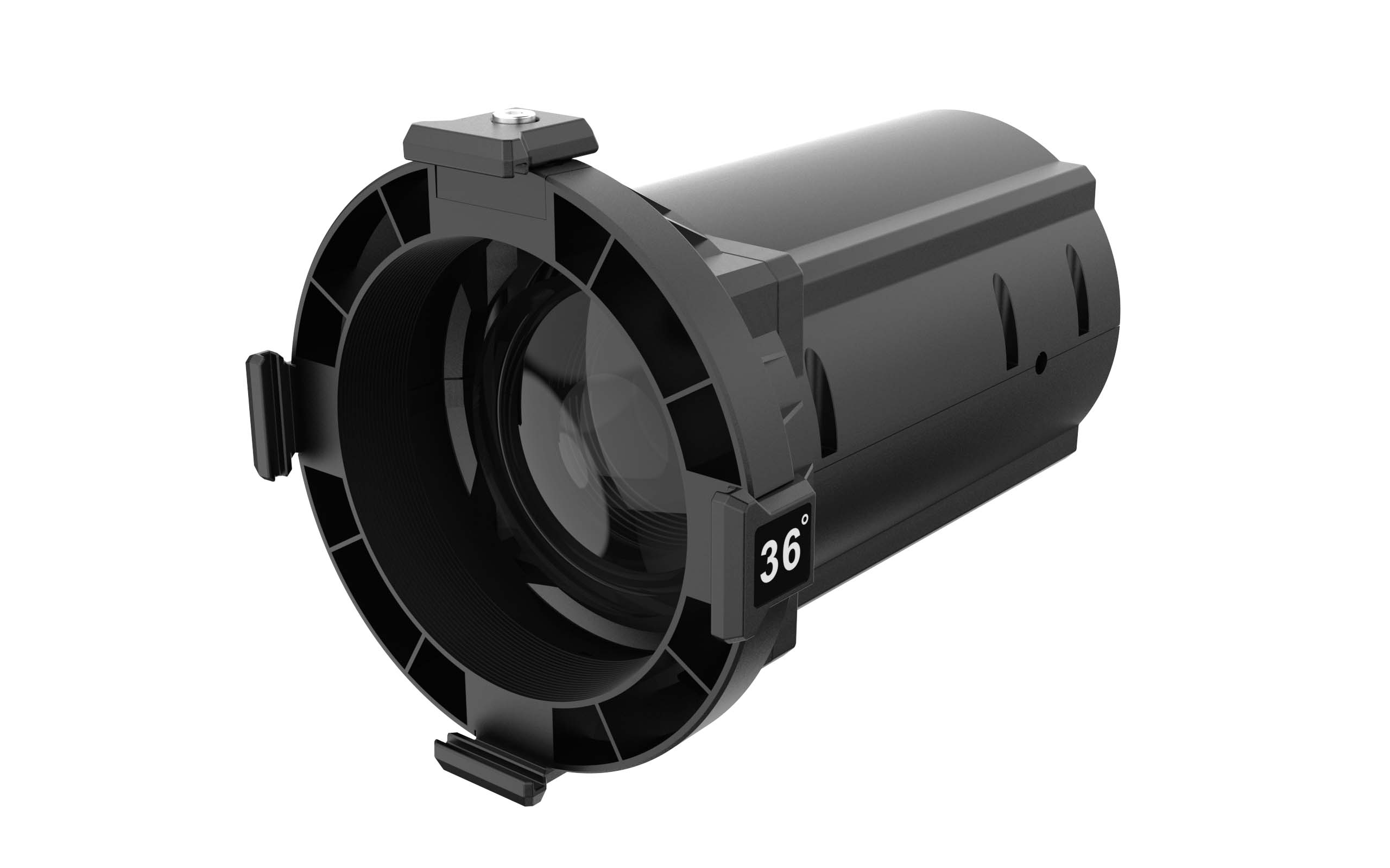

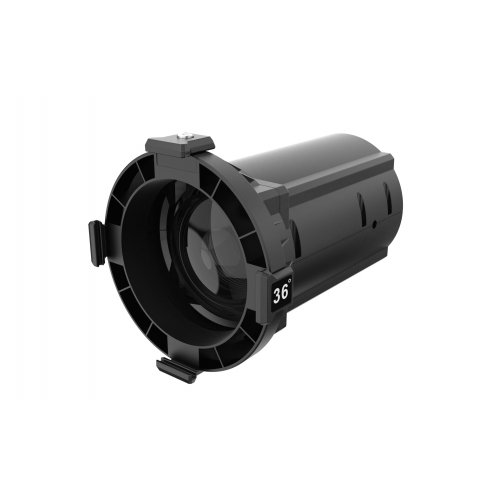

Aputure Spotlight Max 36 Degree Lens
Model: APXF043A34
About: Aputure Spotlight Max 36 Degree Lens
The Spotlight Max 36° Lens is a medium-angle projection spotlight lens designed to be used with the Spotlight Max.
With custom precision optics, the Spotlight Max 36° Lens efficiently concentrates and blends light into a single clean beam while maintaining its
light source’s color accuracy and mitigating chromatic aberration. In addition, the 36° Lens intensifies its light engine’s output and increases the throw of the fixture, allowing subjects to be illuminated from far distances. The use of telecentric optical elements in the 36° Lens and the Spotlight Max ensures that the difference of the output field angle and beam angle are minimized, resulting in an illumination circle with even edge-to-edge light distribution without hotspots.
The Spotlight Max 36° Lens comes in a protective soft carrying case, making transportation and storage a breeze.
Features
- 36° Medium-Angle Projector Lens for Spotlight Max
- Optimized for High-Powered LED Fixtures
- Custom Precision Optics With Minimal Chromatic Aberration and Color Shift
- Efficient Light-Blending Optical Design for Compatibility with Full- Color Fixtures
- Telecentric Element Groups for Even Edge-to-Edge Light Distribution and Minimal Distortion of Illumination Circle
- Durable All-Metal Build
- Included Protective Soft Case
Specifications
- Spotlight Max 36° Lens Photometrics
- LS 600d Pro
- 3m
- 5600K - 8200 lux / 762 fc
- 3200K - -
- 5m
- 5600K - 2952 lux / 274 fc
- 3200K - -
- 7m
- 5600K - 1506 lux / 140 fc
- 3200K - -
- 3m
- LS 600x Pro
- 3m
- 5600K - 5967 lux / 554 fc
- 3200K - 4333 lux / 403 fc
- 5m
- 5600K - 2148 lux / 200 fc
- 3200K - 1560 lux / 145 fc
- 7m
- 5600K - 1096 lux / 102 fc
- 3200K - 796 lux / 74 fc
- 3m
- LS 600c Pro
- 3m
- 5600K - 2859 lux / 266 fc
- 3200K - 2322 lux / 216 fc
- 5m
- 5600K - 1029 lux / 96 fc
- 3200K - 836 lux / 78 fc
- 7m
- 5600K - 525 lux / 49 fc
- 3200K - 427 lux / 40 fc
- 3m
- LS 1200d Pro
- 3m
- 5600K - 4233 lux / 393 fc
- 3200K - -
- 5m
- 5600K - 1524 lux / 142 fc
- 3200K - -
- 7m
- 5600K - 778 lux / 72 fc
- 3200K - -
- 3m
- LS 600d Pro
- Dimensions - 8.1 x 7.8 x 10.5in (20.5 x 19.9 x 26.6 cm)
- Weight - 8.09 lbs (3.67kg)
What’s in the Box
- Spotlight Max 36° Lens
- Carrying Case
UPC: 6971842186754
