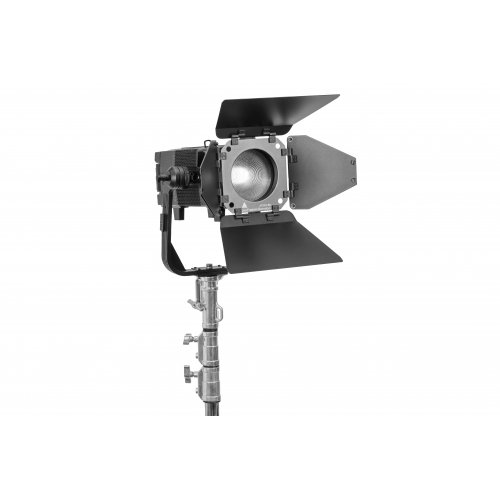

Astera LeoFresnel Wireless Spotlight (105W)

About: Astera LeoFresnel Wireless Spotlight (105W)

Astera’s LeoFresnel is as an exceptional solution for film, studio, and event lighting. LeoFresnel boasts an impressive output comparable to a traditional 1000W Tungsten Fresnel. With a beam angle of 15° to 60° without colour fringing, wireless and wired DMX control, these lights offer impressive performance while consuming only 250W. Easy to mount and adjust with removable handles and YokeBases, they enhance creativity and productivity on any set.

Built-in Battery

• 2 hours on MAX Runtime - Unlike traditional Fresnels, this light has a built-in battery that lasts 2 hours displaying white colours on MAX Brightness. When a longer operation is needed, you can set the Seamless Runtime setting up to 20 hours. For longer installations, LeoFresnel can be connected to AC power via Powercon in+out sockets.
• Battery Priority - When external batteries are connected, you can select if the light uses the internal or external battery first. This can be set directly on the lights display or via the AsteraApp.
• External Battery Option with RuntimeExtender - For a longer operational time, one or two RuntimeExtender’s with V-Mount or Gold Mount battery can be connected. With one 14.4V battery, the light can be operated on reduced power. A single 26V battery or two 14.4V batteries allow full power output.

Zoomable Fresnel

This next generation Fresnel lens works in conjunction with a light pipe that is built into the fixture. It creates an even beam with steep fall-off and no chromatic aberration or colour fringing. The manual zoom ranges from 15° – 60° and allows it to be operated as spotlight, wash light and anything in between.

Barndoor

Included with each light is an eight-leaf Barndoor. Its specific design leads to ultra-clean cuts; the edges stay razor sharp when shaping your beam.

Open Face

For additional versatility, the Fresnel lens can be slid out after opening its lock. This gives you a wider beam with even crisper shadows.

Projection Lens

A custom-built projection lens with 16°-36° zoom, manual focus and 4 shutters. Turn your LeoFresnel into a profile that also allows you to insert B size Gobos. (Coming late 2023).

Rabbit-Rounder Adapter

With each LeoFresnel we ship a Rabbit Rounder Adapter which means that universal DOP Choice products for Rabbit-Rounder such as Octa 3, Lantern M and Snapbag M can be attached to the light.

Easy Mounting

• Yoke Quick-Release - Detach your light within seconds from its Yoke to allow handheld operation.
• Detachable YokeBase - The YokeBase attaches to the light’s side via airline tracks. Move position if you want to change the light’s balance or remove it altogether.
• Removable Handle - Our TrackHandle can be inserted into the light’s airline track to carry it around or adjust its position during operation. It can be removed whenever it isn’t needed.
• Airline Tracks - We have included our popular Airline Tracks on each of the 4 sides. This is where you can attach the YokeBase as well as other Astera accessories such as TrackHandle, TrackPin etc.
• TVMP Adapter - With each light we ship a standard TVMP Adapter that is intended to be connected to the light’s Yoke so it can be attached to stands and grips.
• RuntimeExtender Mount - The light’s Yoke contains two mounting points for Astera’s RuntimeExtender. This allows you to attach one or two external batteries.

How to Control

• App Control - AsteraApp offers intuitive and fast control of complex lighting setups and is also used for preparation and monitoring of our lights.
• Wireless DMX - All Astera lights contain a wireless DMX module by LumenRadio, enabling them to be controlled by CRMX and W-DMX transmitters alongside other wireless fixtures. The AsteraBox has built-in CRMX and can be used to transmit DMX data to your lights.
• Wired DMX - We have included 5-pin XLR in + out sockets for a solid wired DMX connection. This enables the LeoFresnel to be used as a wired Fresnel for longer installations
• On your light - The control panel offers intuitive control over your light. Dedicated buttons offer swift control over brightness and HSI colours.

Adjustable Fan Speed

Super silent fan that can be set to 3 fixed speeds and can also be turned off completely. The light does not immediately adjust its power level, instead it monitors its temperature and only turns down brightness if it overheats. This enables you to shoot for a short time in complete silence.

Flicker-Free

With its scrambled PWM technology, lights with Titan LED Engine will not cause flickering when filming with standard frame rates. Recordings with high-speed cameras are possible but might not work under all conditions. Test before you shoot.

Green/Magenta Correction

To reduce post-production work, Titan LED Engine enables Green/Magenta correction from 0-100 in steps of 1%.

Effects

Quickly build programs out of colours and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Available as a Kit

​The LeoFresnel is available in a kit that includes a sturdy durable protective plastic case with wheels and handle along with one (1) LeoFresnel light fixture, accessories, and power supply.

Specifications

• LED Engine -  Titan LED Engine
• Colours -  RGBMintAmber
• Total LED Power -  350 W
• LED Power Draw -  250 W
• CRI (Ra)/ TLCI 3200- 6500 K -  ≥96
• Beam Angle -  15° – 60°
• Field Angle -  TBD
• Strobe -  0 – 25 Hertz
• Pixels -  1
• Battery Runtime -  up to 20 hours
• Battery Runtime (max. Brightness) -  2 h
• Battery Lifetime -  80 % after 400 cycles
• DC Input -  12 – 48 VDC; max. 15A
• DC Connector -  3pin XLR (Pin 1:- Pin 2:+)
• AC Input -  100 – 240 VAC, 50/60 Hertz, 3.8 A, 250 W
• AC Connector -  PowerCON TRUE1 Input/Output
• Wired DMX -  Yes
• CRMX Receiver -  Built-in
• BluetoothBridge BTB -  Built-in
• Wireless Protocols -  CRMX, UHF, Bluetooth, WiFi, RDM
• Wireless Range
  • CRMX/UHF up to 300 m / 330 yds
  • Bluetooth up to 3 m / 3.3 yds
• Infrared Control -  Yes
• ControlSync -  No
• TouchSlider -  Yes
• Housing Material -  Polymer & Metal
• IP Rating unwired -  IP55
• IP Rating wired -  IP55
• Ambient Operating Temperature -  0 – 40 °C / 32 – 104 °F
• Mounting Options -  AirlineTracks, Yoke with 2x BrickMount (PB15-BMO) and 1/2" mounting hole
• LeoFresnel Weight (with AF250-FL, AF250-BD) -  13.83 kg / 30.48 lbs
• LeoFresnel Weight (with AF250-FL, AF250-BD, AF250-YK, 2x AF250-YKB) -  16.32 kg / 35.99 lbs
• Dimensions LxWxH -  455 mm x 215 mm x 240 mm / 17.91" x 8.46" x 9.45"
• Dimensions LxWxH (with AF250-YK, 2x AF250-YKB, AX-TVMP, AX-THD) -  455 mm x 371 mm x 545 mm / 17.91" x 14.61" x 21.46"

​What's Included

• 1x LeoFresnel (AF250)
• 1x Fresnel Lens (AF250-FL)
• 1x Barndoor (AF250-BD)
• 1x Yoke (AF250-YK)
• 2x YokeBase (AF250-YKB)
• 1x TrackHandle (AX-THD)
• 1x Rabbit-Rounder Adapter (AF250-RRA)
• 1x TVMP Adapter (AX-TVMP)

NOTE: Powercon True1 Cable not included.
