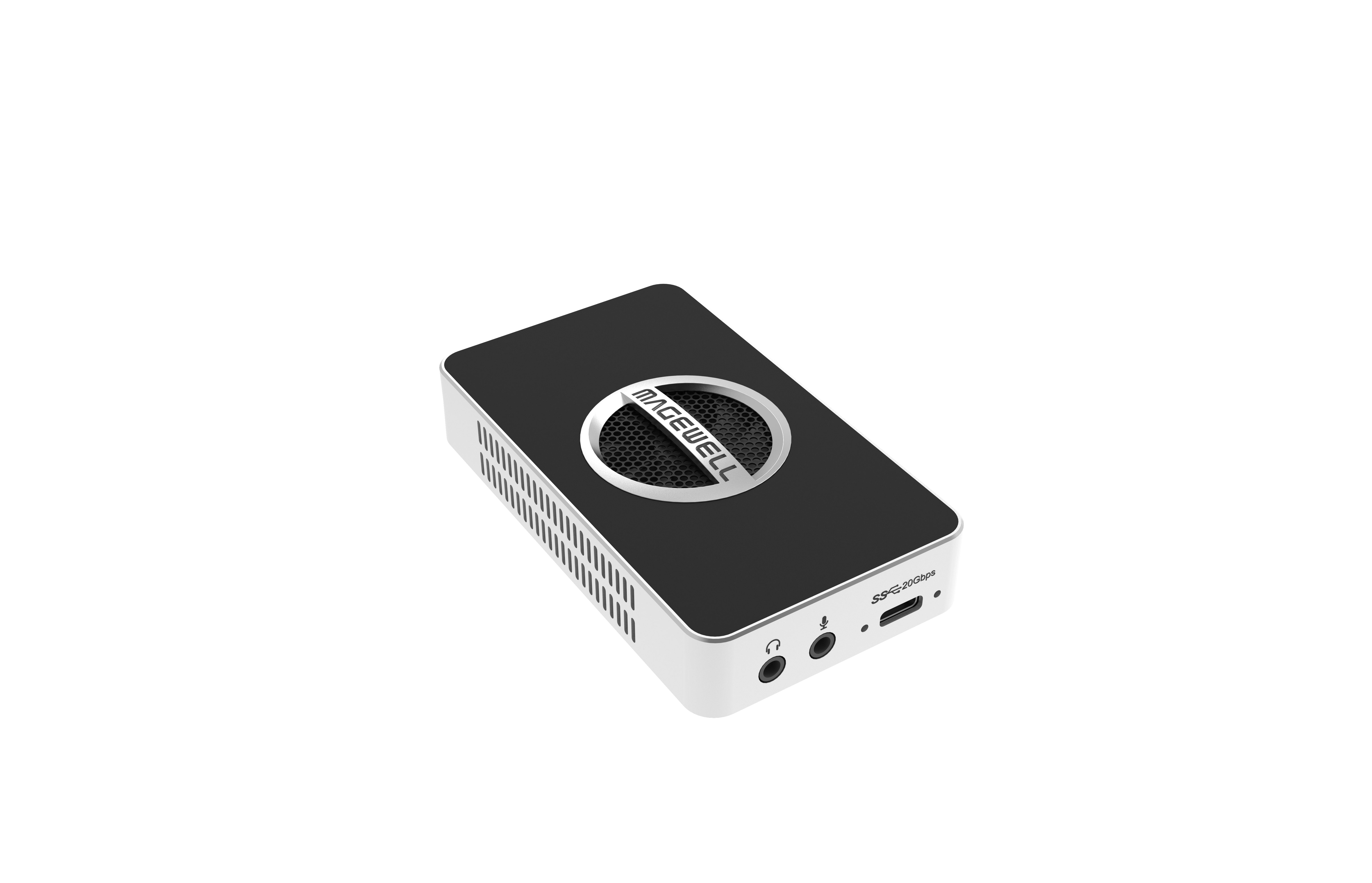

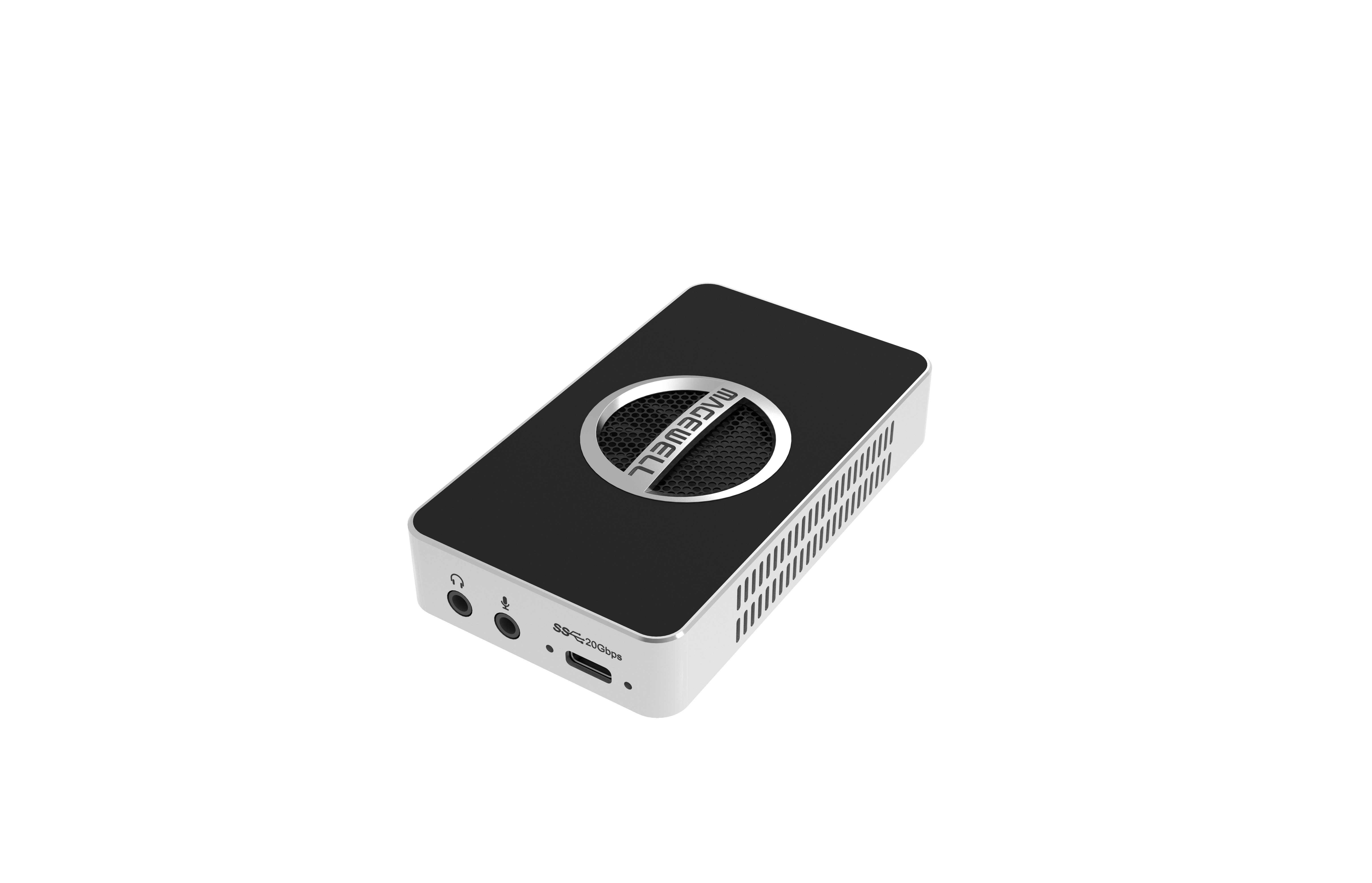

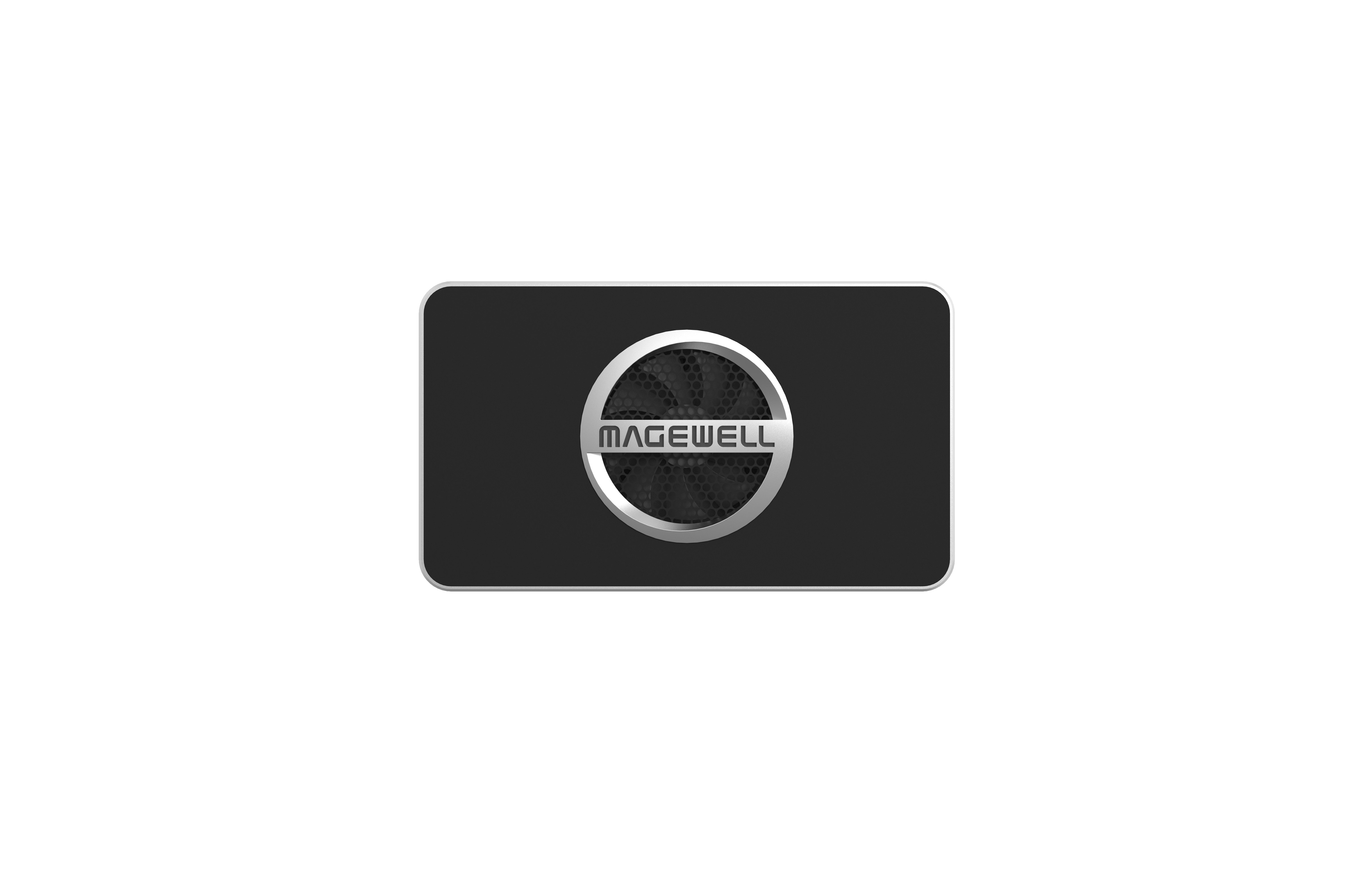

Magewell USB Capture HDMI 4K Pro
Model: 321500000
About: Magewell USB Capture HDMI 4K Pro
The USB Capture HDMI 4K Pro is capable of capturing 4K video at 60 frames per second with 4:4:4 color fidelity. However, the maximum combinations of resolution, frame rate, color subsampling and bit depth that you can achieve will depend on your host system's USB interface and operating system. A 20Gbps USB 3.2 Gen 2x2 interface is required for maximum performance.

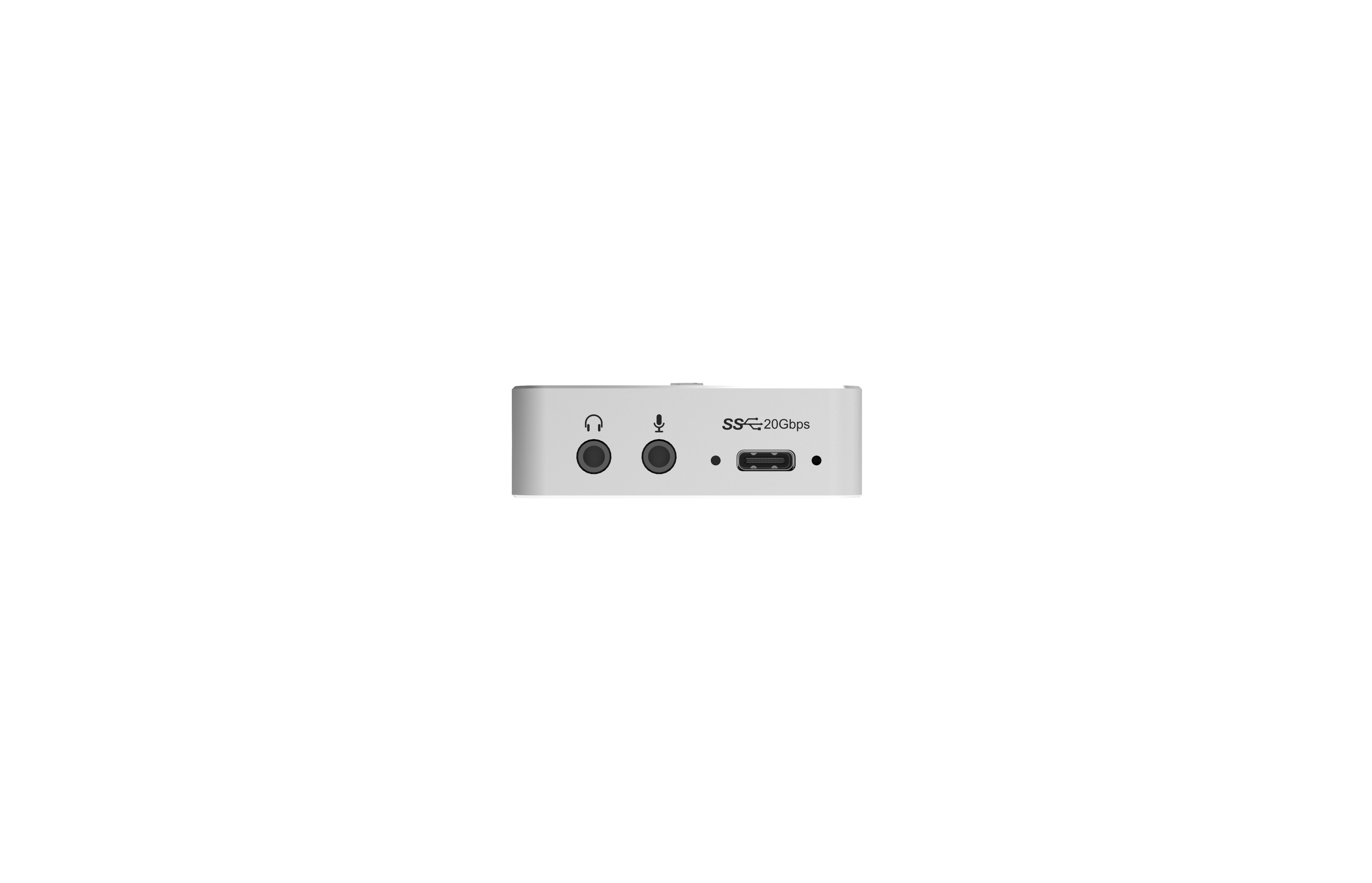

- Capture HDMI + embedded audio
- Loop-through HDMI signal
- Audio input via mic
- Extract HDMI embedded audio output via headphones
Specifications
- Input Features
- 600MHz HDMI receiver, max input & loop through video: 4096x2160 60fps 4:4:4
- Custom EDID
- Support for RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:0 8/10/12-bit, YUV 4:2:2 12-bit
- Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
- 2-channel IEC60958 audio streams via 3.5mm microphone interface
- HDMI interfaces: HDMI 2.0, DVI-D
- Process and Capture Features
- Video processing pipelines with ~700Mpixels/s processing bandwidth
- Capture videos up to 4096x2160, frame rates up to 240fps. Outputs include (Actual capture format will vary based on the host system USB interface and operating system. *):
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/60
- 2560x1440p60
- 2560x1080p/1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p25
- 720x480p30
- Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
- Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
- Output audio of HDMI signal or hosting machine (the computer) via 3.5 mm headphone jack
- Up to 2-channel IEC60958 audio streams
- Included Software
- USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
- SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
- Windows DirectShow/Wave API/DirectSound/WASAPI
- Linux V4L2/ALSA
- macOS AVCaptureSession/AudioUnit
- Output Interface
- USB 3.2 Gen 2x2
- Compatible Software
- Zoom Rooms
- Microsoft Teams
- Skype for Business
- Google Hangouts
- GoToMeeting
- Gstreamer
- VLC
- OBS Studio
- XSplit
- QuickTime Player
- Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
- Recommended OS
- Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
- Linux x86, x64 & ARM architecture, with 2.6.35 and above
- Mac OS X 10.9 and above
- macOS 10.12 and above
- Chrome OS
- LED Indicator
- Status LEDs indicate the working state of the device:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory abnormal or FPGA configuration failed
- Off: firmware or power supply abnormal
- Status LEDs indicate the working state of the device:
- Form Factor
- 3.86 in (L) x 2.24 in (W) x 0.71 in (H) (98.1 mm x 56.8 mm x 18 mm)
- Accessories
- 1 × USB 3.2 Type C to Type C cable (80 cm) (up to 20Gbps, PN: ELE00053)
- 1 × USB 3.2 Type C to Type A cable (80 cm) (up to 20Gbps, PN: ELE00053)
- Power Consumption
- 5V max current: ~1.474A
- Max power consumption: ~7.369W
- Working Environment
- Operating temperature: 0 to 60 deg C
- Storage temperature: -20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
