Magewell Pro Convert AES67 Multi-Format IP Audio Converter & Capture Device

About: Magewell Pro Convert AES67 Multi-Format IP Audio Converter & Capture Device

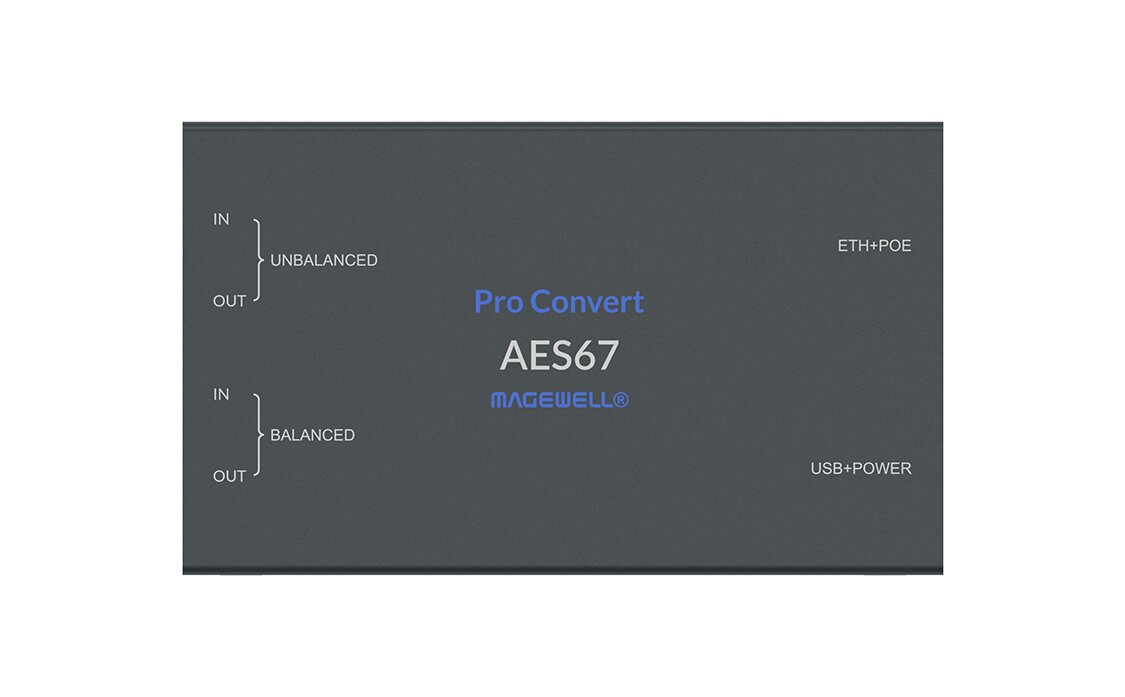

Pro Convert AES67 allows you to use the audio gear you already own - your trusted compressors, equalizers or analog power amplifiers - adapt them to the world of audio networking with Magewell audio unit, processing receive and transmit analog and digital audio data. The ultra-compact Pro Convert devices are ideal for both in-studio and portable field use. Value-added features for live production applications include WebUI for remote control, a ¼-20 thread for mounting accessories, effectively broadcast audio online - NDI/SRT/Icecast, and audio over IP - native AES67. The units can be powered by either a DC adapter or via Power over Ethernet (PoE) for further deployment simplicity.

• Compatible with ST 2110-30
• Input and output 3.5mm unbalanced/4.4mm balanced/USB Audio Class/Icecast/AES67/NDI/SRT
• Nanosecond accuracy timing synchronization is provided using IEEE 15882008 Precision Time Protocol (PTP) Version 2 (PTPv2)
• Integrated A/D and D/A audio converters
• Remotely manage via Magewell Cloud and Web UI
• Compatibility with a wide variety of TCP/IP devices, including PC and audio processing software
• Dual power input options, powered by Power over Ethernet (PoE) switch, a PoE injector (802.3 af) or DC 5V via Micro USB connector

Receiving/Input Features

• Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
• 1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
• 1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
• 1 x 4-channel 24-bit/48k USB Audio Class in
• Receiving 4 x 8-channel 24-bit AES67 (compatible with SMPTE ST 2110–30) streams both multicasted and unicasted
• Receiving 1 x 4-channel 16-bit Network audio stream with Icecast, SRT, or NDI protocol, via Ethernet
• Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
• Dynamic range > 100dB
• Signal to noise ratio > 100dB
• Total harmonic distortion < 0.01% @ +4dBu
• Support for PTP master/slave
• Max signal level: unbalanced at 12dBu, balanced at 24dBu
• Device buffer at 0.125 ~ 64 ms (controlled via WebUI, 1 to 16 packets with packet time at 0.125/0.25/0.333/1/4 ms)

Sending/Output Features

• Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
• 1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
• 1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
• 1 x 4-channel 24-bit/48k UAC out
• Multicast (IGMPv2) and unicast up to 8 x 8-channel 24-bit AES67 (SMPTE ST 2110–30 compliant) streams
• Encoding and transmitting 1 x 4-channel 16-bit audio stream with Icecast, SRT, and NDI protocol
• Support for PTP master/slave
• Total harmonic distortion < 0.01% @ +4dBu
• Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
• Dynamic range > 100dB
• Signal to noise ratio > 100dB
• Max signal level: unbalanced at 12dBu, balanced at 18dBu

Specifications

• Configuration Management
  • Registration with Control Hub
  • Remote control via WebUI and Control Hub
  • Provision of comprehensive information regarding the device and signals in real-time
  • Configuration of how an input is processed and encoded, including sampling, packets, PTPv2(IEEE 1588–2008), channel adjustment, audio mixing, buffer, as well as the network connection
  • Support for updating firmware
  • Support for USB RNDIS/ECM
  • Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provision of HTTP APIs
• Interfaces
  • 10/100/1000Mbps with PoE (IEEE 802.3af)
  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB NET
  • 3.5mm TRS unbalanced IN/OUT
  • 4.4mm TRRRS balanced IN/OUT
• LED Indicators
  • Power LED indications:
    • on: power on
    • off: power off
  • PTP LED indications:
    • on: synced
    • off: not synced
    • blinking: syncing
• Form Factor - 100.9smm (L) x 60.2mm (W) x 23.3mm (H)
• Accessories
  • 4.4mm to Dual XLR Male Cable
  • 4.4mm to Dual XLR Female Cable
  • USB 2.0 cable (Type A to Type B)
  • Universal power adapter
  • L bracket
• On-board Control Buttons - 16 Position Rotary DIP Switch: sets board-index from 0 to F
• Screw Mounting Hole - ¼–20 threaded hole
• Power Consumption
  • 5V max current: ~ 1 A
  • Max power consumption: ~ 5 W
• Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
