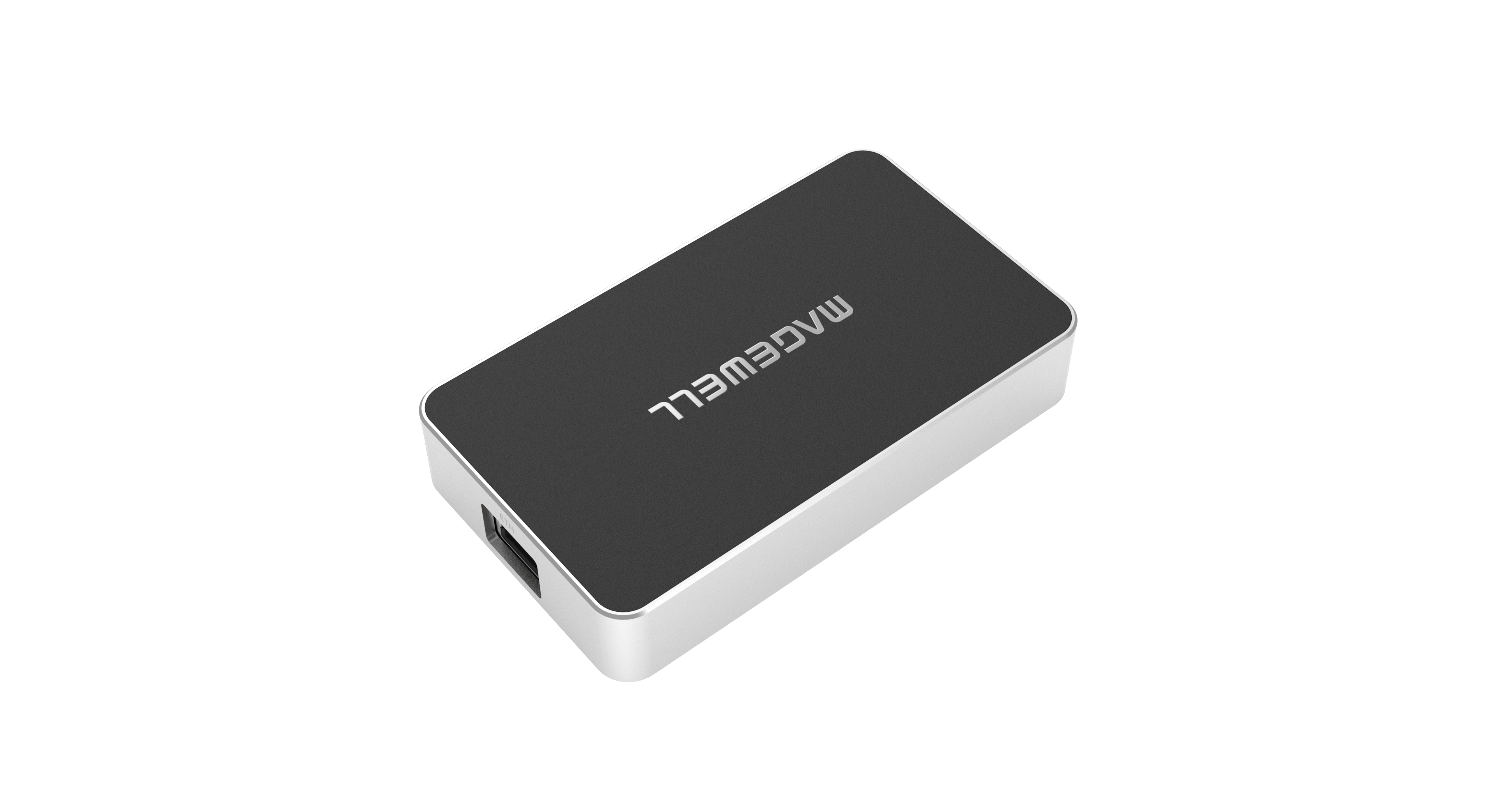

Magewell Pro Convert IP to USB (Open Box)

About: Magewell Pro Convert IP to USB (Open Box)

Pro Convert IP to USB is a plug-and-play device designed for conference rooms and production studios. It allows users to bring an NDI feed or other IP stream into software over a USB interface.

• Capture one network video source into software at resolutions up to 1080p60
• Support NDI High Bandwidth, NDI HX2, or NDI HX3 sources or H.264/H.265 streams in protocols including RTMP, RTSP, RTP, UDP, SRT and HTTP
• Capture as uncompressed YUY2/NV12 video up to 1080p60 or MJPEG video up to 1080p30
• Capture 2 channels of audio at 16-bit, 48KHz
• Support DHCP for automatic network configuration
• Control PTZ cameras via NDI or Visca over UDP through the web UI
• It is configurable to capture the video as content or camera into Zoom software

Ensured High-Quality AV Performance

By offloading the decoding process to the device itself, Pro Convert IP to USB significantly reduces the burden on the host system's CPU or GPU, making high-quality IP video up to 1920x1080 at 60fps easily accessible in users’ software without affecting the overall system performance.

• YUY2/NV12
• MJPEG

Versatile Remote Control

Pro Convert IP to USB allows users to control PTZ cameras remotely via NDI or Visca over UDP protocols, providing greater control over camera positioning and operation. It can also be used with Magewell’s optional Control Hub software, allowing systems integrators and IT administrators to achieve streamlined, centralized management. Additionally, Magewell offers comprehensive API support, enabling enhanced customization and integration capabilities.

Output Features

• Max output UVC: 1080p60 YUY2/NV12. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
  • 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15
• Max output UVC: 1080p30 MJPEG. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
  • 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 30/29.97/25/24/20/15
• UAC: 2-channel, 16-bit, 48KHz

Specifications

• Decoding Capabilities
  • Decoding 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP at up to 1080p60
  • Decoding H.264 / H.265
  • Supports NDI 6
• Configuration Management
  • Register with Control Hub
  • Remote control via WebUI and Control Hub
  • Web UI enables users to easily check and set the process-and-capture parameters, upgrade firmware and export info for troubleshooting
  • Provide HTTP APIs
  • Support USB NET
• PTZ Control
  • Control PTZ cameras using protocols of NDI and Visca over UDP
• Host Interface

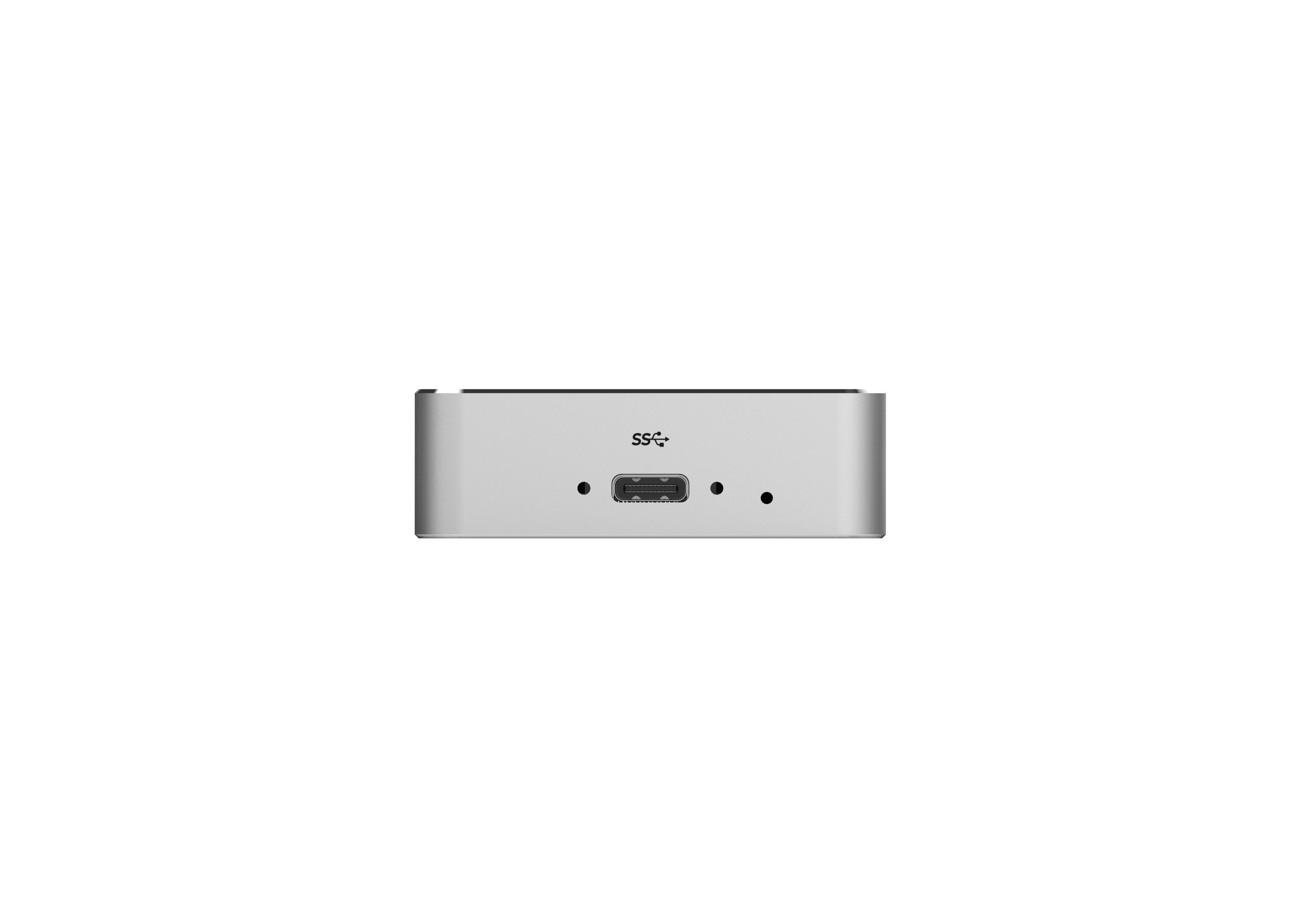

  • USB 3.0 (5 Gbps) Type-C
    • 5V/1A power supply
    • USB NCM
• Network Connections

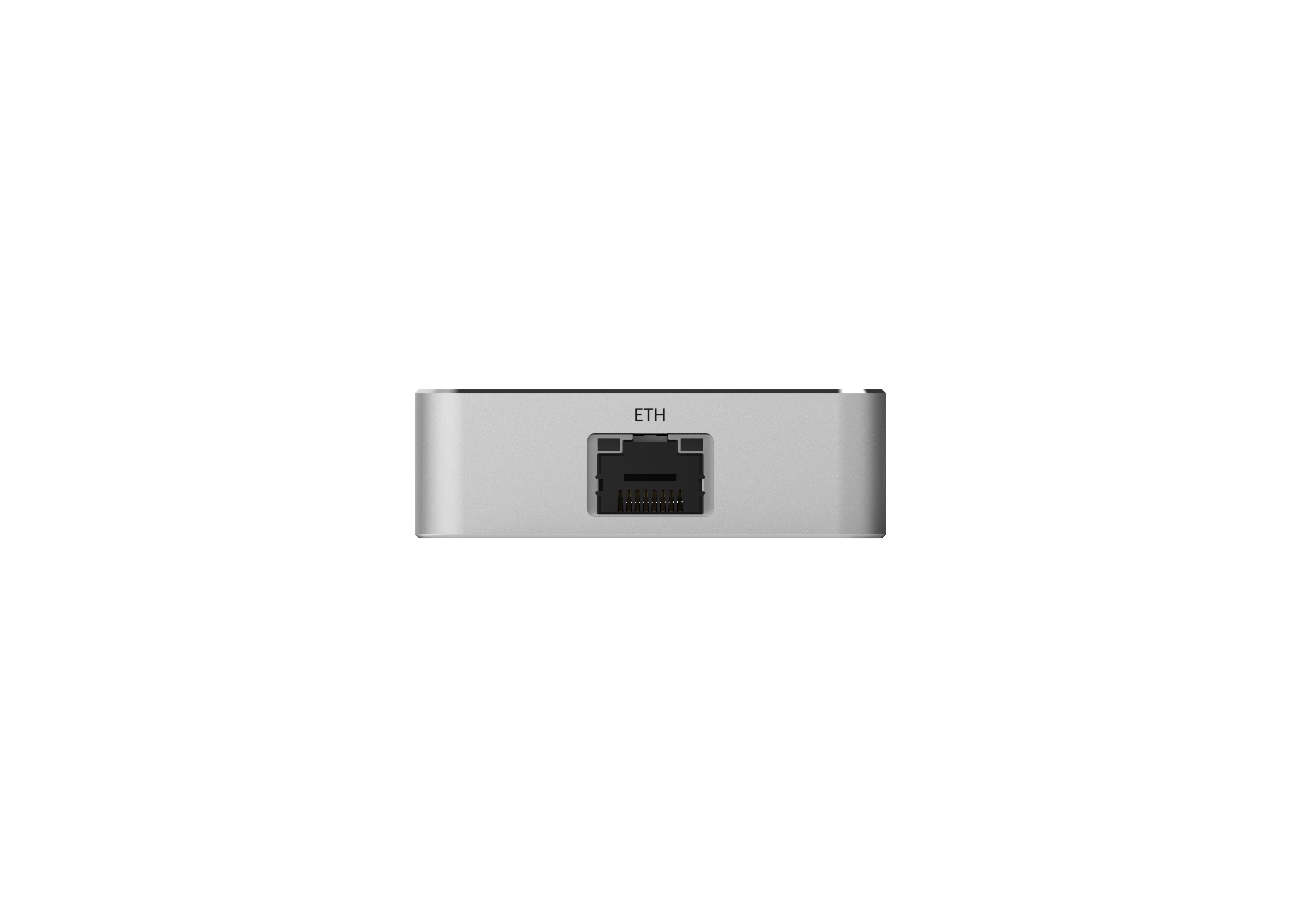

  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
• Recommended OS
  • Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above
  • Mac OS X 10.9 and above
  • macOS 10.12 and above
• Supported Software
  • Zoom Rooms
  • Microsoft Teams
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • vMix
  • Any other software that can detect USB webcam
• LED Indicators
  • Status LED indicates:
    • Power supply: on/off
• Form Factor (LxWxH)
  • 3.8622 in x 2.2354 in x 0.7087 in (98.1 mm x 56.78 mm x 18 mm)
• Power Consumption
  • 5V max current: ~ 1A
  • Max power consumption: ~ 3.8W
• Working Environment
  • Operating temperature: 0 to 50 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing

What's in the Box

• 1x Pro Convert IP to USB
• 1x USB Type-C to Type-A cable
• 1x USB Type-C to Type-C cable
• 1x Quick Start Guide
