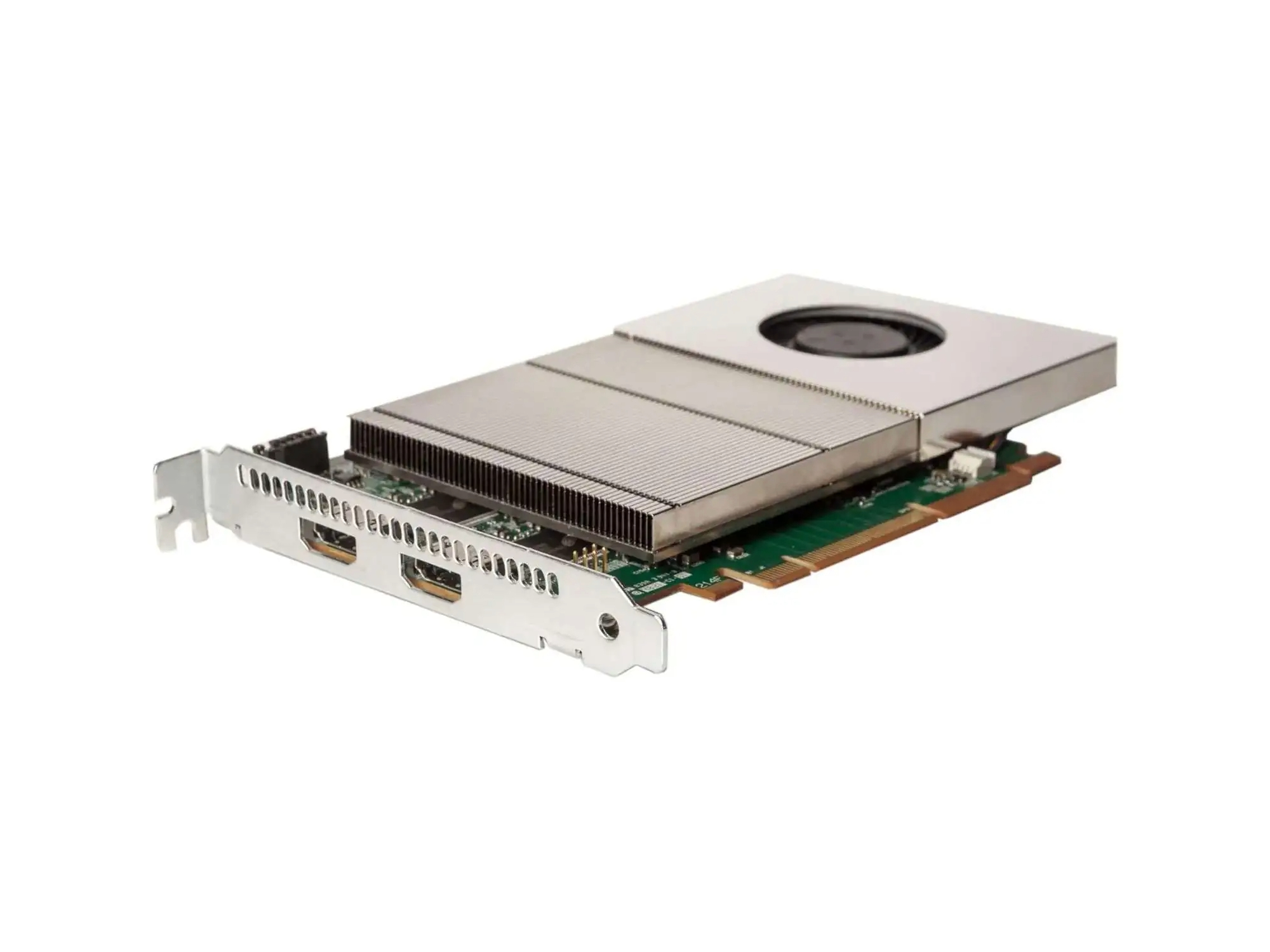

ChamSys MediaMaster HDMI Interface Card - 2 Input
Model: MEDIAMASTER-HDMI2
About: ChamSys MediaMaster HDMI Interface Card - 2 Input
Add two HDMI 2.0 inputs to MediaMaster VS2+ or VS4+ media servers running MediaMaster software, from a single card with HDCP2.2 support at 4K60p with 4:4:4 chroma sampling. MediaMaster Vision SC-HD2 supports LiveStream for a single line of capture latency, MultiStream for multiple capture instances, hardware timestamping, HDMI signal conditioning to support longer cable runs, automatic fast and reliable mode detection, frame synchronised ganging of inputs (dual 4K into 8K x 2K), flexible onboard Colour Space Converter, and an advanced hardware scaling engine that employs polyphase multi-tap filtering for superior anti-aliasing when downscaling and accurate pixel replication when upscaling.
- Compatible with MediaMaster VS2+ and VS4+ MediaServers
- Two independent HDMI 2.0 capture channels supporting 4K60 with 4:4:4 chroma sampling
- Eight lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
- 2GB Frame Buffer Memory
- Full 10-bit processing pipeline
- Supports HDMI certified premium cables up to 5M in length
Specifications
- Hardware
- Motherboard Connection Type: PCIe x8
- Input Connectors: 2 x HDMI
- Software
- Video Modes: HDMI 2.0, HDMI 1.4, HDMI 1.3
- Maximum Capture Resolution: 2x 3840x2160p @ 60 fps
- Update Rate: Captured frame rate will match the source providing PCle bandwidth is not exceeded.
- Pixel Transfer Formats:
- RGB Formats: RGB10 (10bit), 8-8-8 (24/32), 5-6-5, 5-5-5, 8-bit mono
- YUV Formats: Y410 (10bit 4:4:4), 4:2:2 Packed (YUY2, UYVY, YVYU)
- Frame Buffer Memory: 2GB
What's Included
- 1x VS4+ Rear Panel Adapter Plate
UPC: 781462231286
