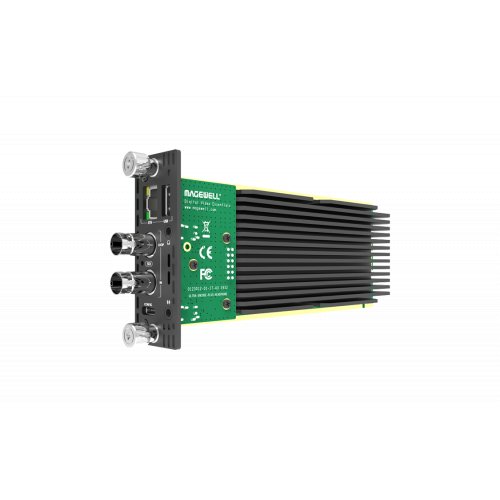

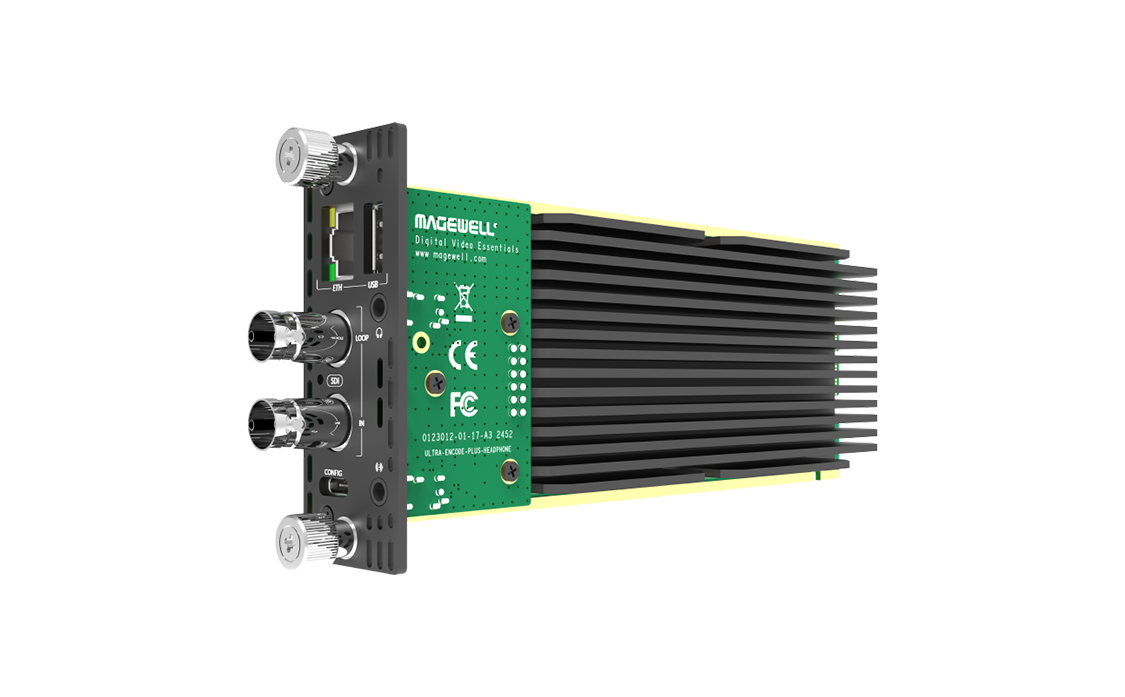

Magewell Ultra Encode SDI Plus Module
Model: B31610000
About: Magewell Ultra Encode SDI Plus Module
Encoding module for rack-mounted centralized deployment
Input & Loop-Through Features
- Support for up to 4096x2160 30fps input and loopthrough signals
- Input & loopthrough 16-Channel SDI embedded audio
- Input audio from 3.5 mm LINE IN
Encoding Features
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
Streaming Features
- Natively support Facebook, Twitch, YouTube and WOWZA
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
- Allow simultaneous 6 sessions over multiple streaming protocols
- Support for streaming schedule
Recording and screenshot
- Record to internal storage (supplied 128GB Micro-SD card), external USB storage or network attached storage (NFS/CIFS)
- Video recordings in MP4, MOV or TS format
- Normal recording and loop recording supported
- Support for recording schedule
Others
- Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
- HTTP-based APIs for custom integration
- 2-year warranty
