Sonnet Thunderbolt 5 Upgrade Kit for Echo Express SEL, Twin10G, Twin25G

About: Sonnet Thunderbolt 5 Upgrade Kit for Echo Express SEL, Twin10G, Twin25G

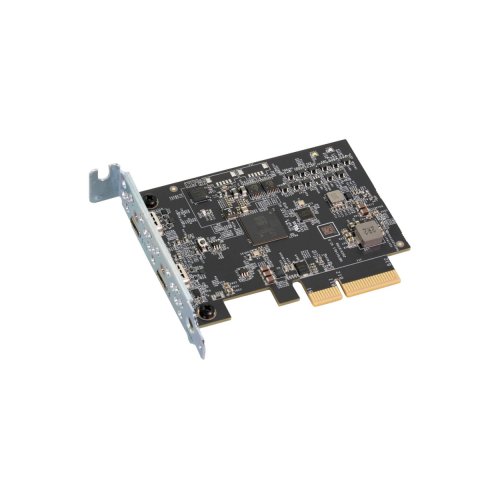

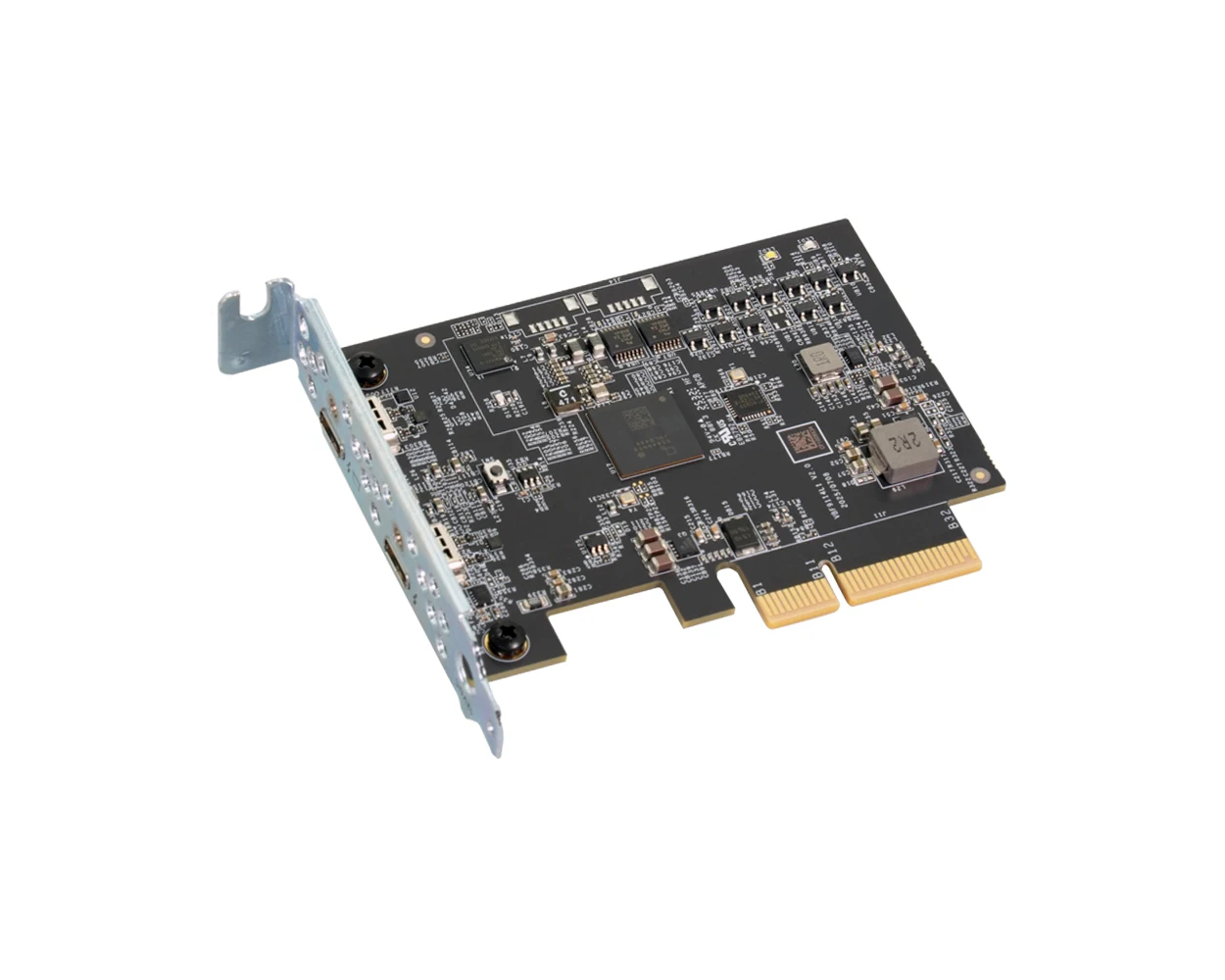

Sonnet designed Echo Express SEL Thunderbolt Expansion System and Twin10G and Twin25G Thunderbolt Adapters with a simple path to Thunderbolt 5. Replace the original Thunderbolt 3 interface card with the Sonnet Thunderbolt 5 upgrade card to instantly unlock higher performance and support for the latest Thunderbolt 5 computers.

• Compatibility – Echo Express SEL Thunderbolt Expansion System and Twin10G and Twin25G Thunderbolt Adapters (with a Thunderbolt 3 interface card).
• Easy Upgrade to 80 Gbps Thunderbolt 5 – Replaces existing Thunderbolt interface card.
• More Than Doubles PCIe Bandwidth – Your upgraded system will provide up to 133% more bandwidth (6800 MB/s) for the installed PCIe card.
• Two Thunderbolt 5 Ports – One Thunderbolt port connects to computer; second port supports daisy-chaining additional Thunderbolt peripheral devices, or connection of a USB device, or connecting two 6K displays or one 8K display (depending on your computer).
• Connect Four Additional Thunderbolt Devices – The secondary port supports Thunderbolt 5, 4, and 3 peripherals; you can even connect additional self-powered Thunderbolt devices in a daisy chain.
• Supports 80 Gbps, 40 Gbps, 20 Gbps, and 10 Gbps USB Peripherals – Connect an ultra-fast USB device to the second Thunderbolt port using the proper cable or adapter.
• Power Peripherals – 15 watts is provided to bus-powered devices requiring extra power through the secondary Thunderbolt port.
• Supports Connecting One 8K Display – Maximize the utilization of one computer Thunderbolt port, connecting the highest resolution display supported by your computer.

Bigger Bandwidth, Superior Performance

When connected to a computer’s Thunderbolt 5 port, your Thunderbolt 5-upgraded Sonnet system gains up to 133% more PCIe bandwidth (6800 MB/s) compared to its original interface. With significantly more bandwidth available, high-performance PCIe cards — such as 4K and 8K video I/O cards (supporting multiple channels and high frame rates), multiport 10Gb and 25Gb Ethernet adapters, and NVMe SSD cards — will perform even better than before.

More Than Just the Fastest External Interface Available

Sonnet ultra-high speed Thunderbolt 5 interface upgrade cards provide the extra PCIe bandwidth needed to support most cards at maximum performance. One of two ports is reserved for connecting your computer, while the second port can connect Thunderbolt or USB peripheral devices.

• Power Peripherals: 15 watts is provided to bus-powered USB or Thudnerbolt devices requiring extra power through the secondary Thunderbolt port.
• ​Supports Connecting One 5K Display Using Spare Bandwidth: Maximize the utilization of one computer Thunderbolt port, connecting a 5K display while retaining full PCIe bandwidth.

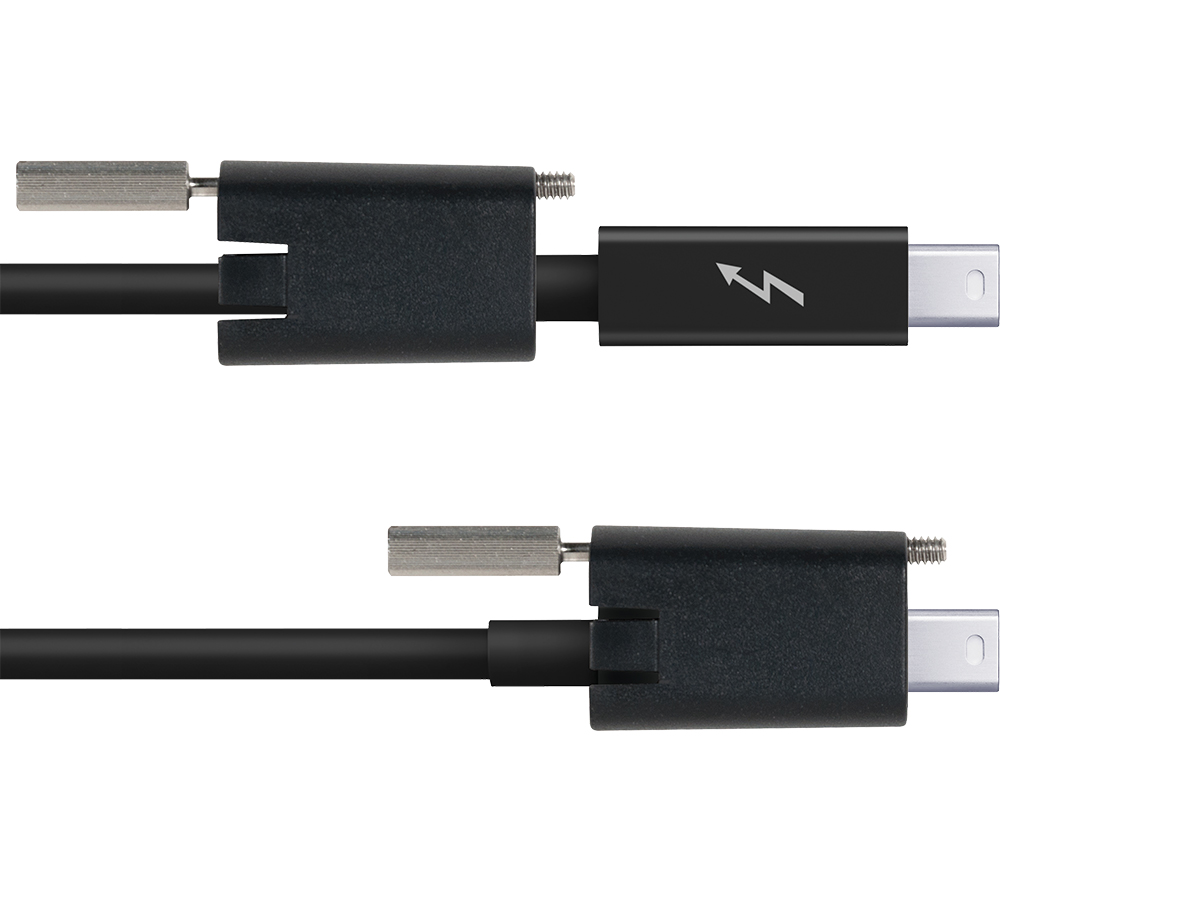

Secure Connections for High Performance: Thunderbolt Cable and ThunderLok Included

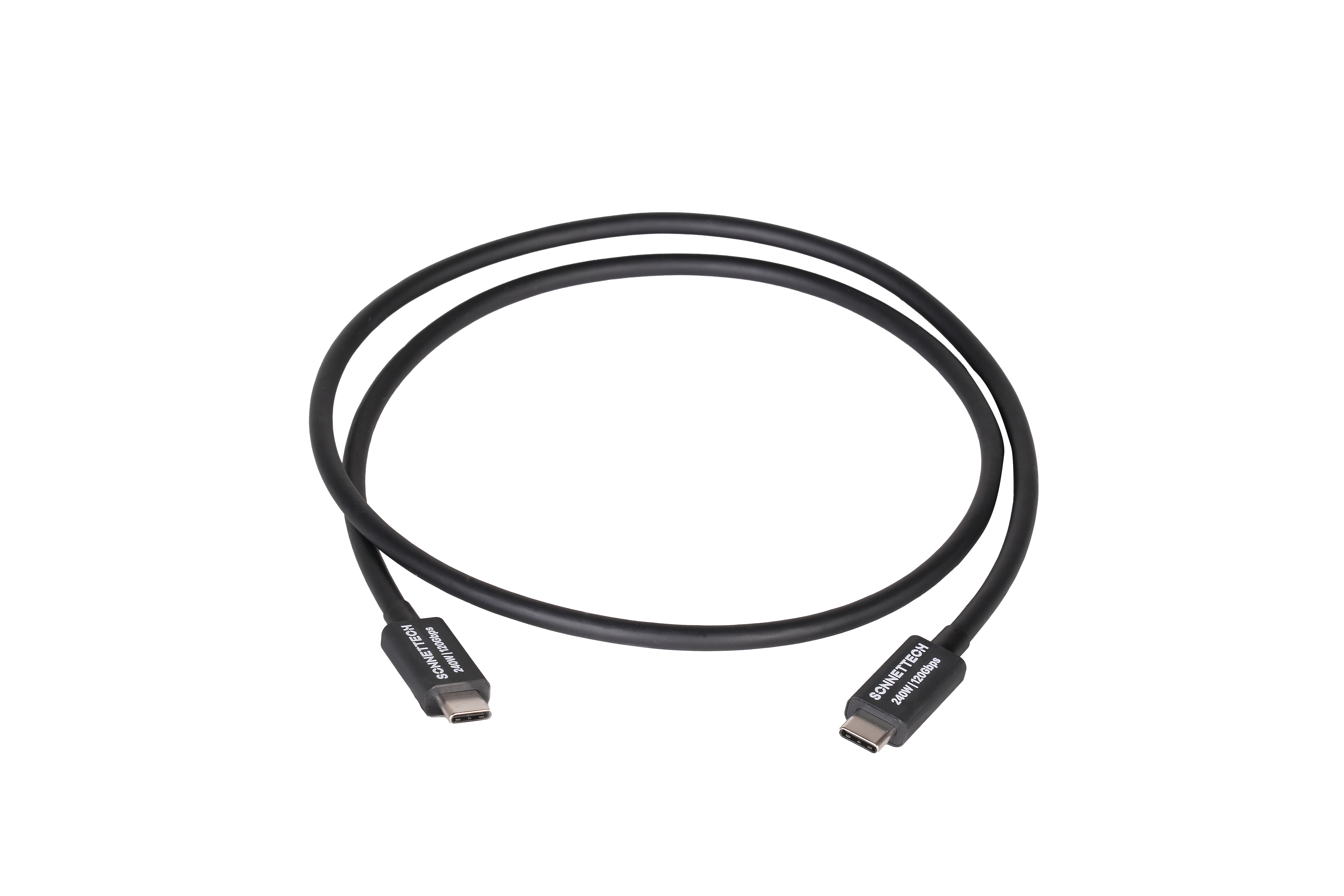

Sonnet includes a Thunderbolt cable engineered to deliver Thunderbolt 5’s full bandwidth and power delivery performance. The cable is fully compatible with Thunderbolt 5, 4, and 3, and USB4 computers. A Sonnet ThunderLok Thunderbolt connector lock is also included to prevent accidental cable disconnections from the Thunderbolt 5 upgrade card.

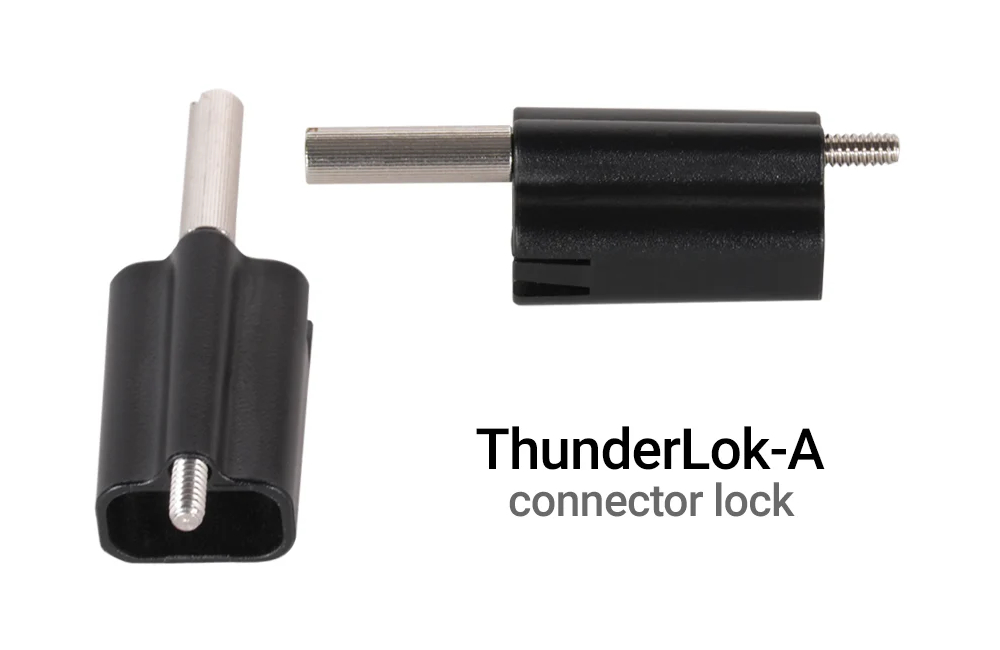

ThunderLok Advantage

Sonnet Thunderbolt 5 upgrade cards’ Thunderbolt ports are equipped with threaded mounting holes to securely attach a Sonnet ThunderLok connector lock, preventing Thunderbolt cables from accidentally disconnecting.

What's Included

• Thunderbolt 5 interface card
• 0.8-meter Thunderbolt 5 cable
• ThunderLok-A connector lock
