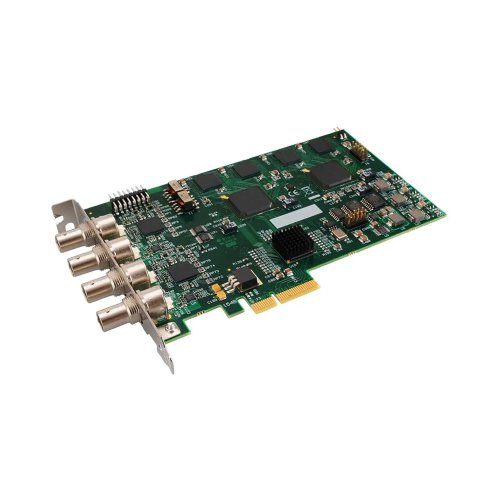

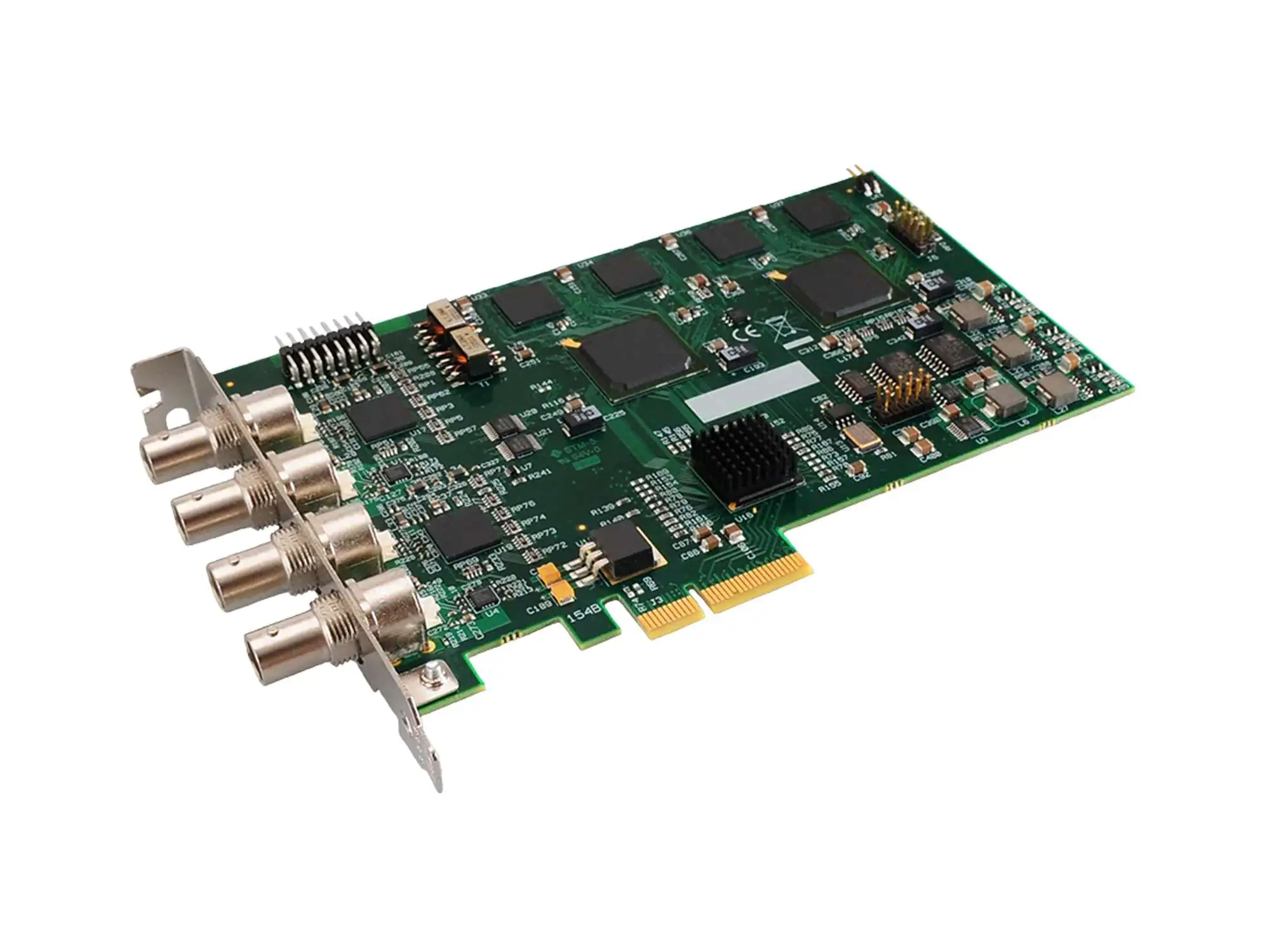

ChamSys MediaMaster SDI Interface Card - 2 Input
Model: MEDIAMASTER-SDI2
About: ChamSys MediaMaster SDI Interface Card - 2 Input
Add dual channel SDI video input capabilities with this stand alone PCI Express four lane plug in card that brings 650MB/s transfer bus bandwidth to MediaMaster VS2+ or VS4+ media servers running MediaMaster software. The MediaMaster Vision SC-SDI2 HD-SDI video capture card supports SD-SDI, HD-SDI and 3G-SDI.
Specifications
- Hardware
- Motherboard Connection Type: PCIe x8
- Input Connectors: 4 x BNC/SDI for Inputs and Outputs
- Software
- Maximum Capture Resolution
- 2x 2048×1556 at 24fps
- 2x 1920×1080 at 60fps
- Update Rate: User defined, captured frame rate will match the source. Providing max data rate (650 MB/s) is not exceeded Multi-buffered to eliminate tearing artifacts
- Maximum SDI Bitrate: 3Gb/s
- Supported Frame Rates: 23-98Hz, 24Hz, 25Hz, 29-97Hz, 30Hz, 50Hz, 59-94Hz &60Hz
- Sample Formats:
- RGB: 5-5-5, 5-6-5 or 8-8-8 (24 bit/32 bit) pixels
- YUV: 4:2:2
- MONO: 8 bit
- Frame Buffer Memory: 64 MB per channel (total 128 MB).
- Maximum Capture Resolution
What's Included
- 1x VS4+ Rear Panel Adapter Plate
UPC: 781462231255
