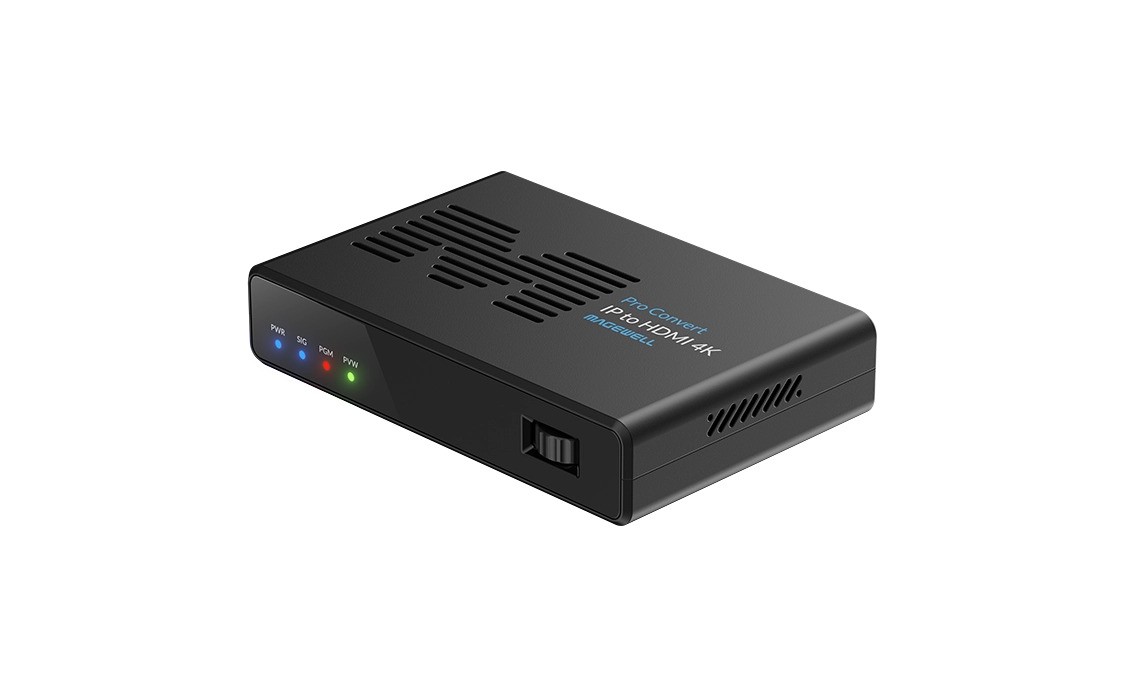

Magewell Pro Convert IP to HDMI 4K
Model: 644100000
About: Magewell Pro Convert IP to HDMI 4K
Connects baseband presentation or distribution equipment into IP-based media networks
- Stays compatible with popular video formats and streaming protocols
- Supports HDR PQ/HLG
- Video preview, in real-time stream or MJPEG picture is available on the web GUI
- Remote centralized management via Control Hub or Zixi ZEN Master
Features and Specifications
- Support NDI High Bandwidth, NDI HX2, NDI HX3, SRT, MPEG-TS over RTP/UDP/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI protocols
- Support multiview layouts
- For Single View, support decoding 1 stream of H.264, H.265, SpeedHQ or MPEG2 at up to 4096x2160p60
- For Picture-in-Picture, support decoding 2 streams of H.264, H.265, SpeedHQ or MPEG2 at up to 1920x1080p60 (Only one NDI High Bandwidth or one MPEG2 format video signal can be decoded.)
- For Quad view, support decoding 4 streams of H.264 or H.265 at up to 1920x1080p60
- Support decoding audio in AAC, MP3, AC3, Opus, and G.711 formats
- Support NDI 6.3
Output Features
- Max output: 4096x2160 60fps 4:2:2 10-bit, or 4096x2160 60fps 4:2:2 12-bit
- Support 48/96KHz 8-channel audio output
- Support HDR PQ/HLG
Others
- Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
- Register with Control Hub or Zixi ZEN Master for remote centralized management
- Support preview of output images and PTZ control
- Provide HTTP APIs

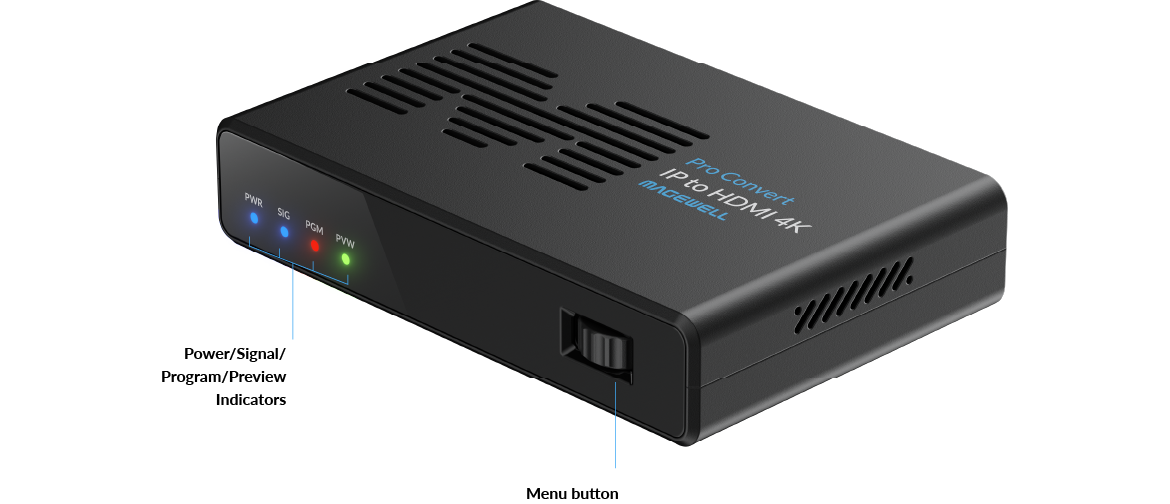

- LED status indicators
- Form factor: 4.72 in (L) x 3.12 in (W) x 0.96 in (H) (120 mm x 79.3 mm x 24.5 mm)
Reviews: Magewell Pro Convert IP to HDMI 4K
There are currently no product reviews.
Warranty: Magewell Pro Convert IP to HDMI 4K
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
- The period of limited warranty for capture cards, compression cards, video recording machines, cyber video servers is one year.
- The period of limited warranty for the accessory switching cable, adapter is one year.
- The accessory Low-Profile baffle plate does not qualify for warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
