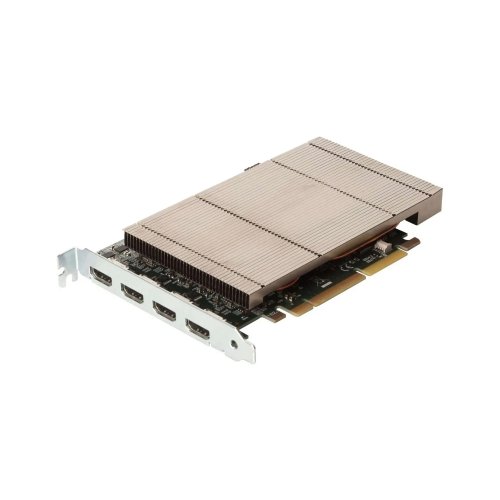

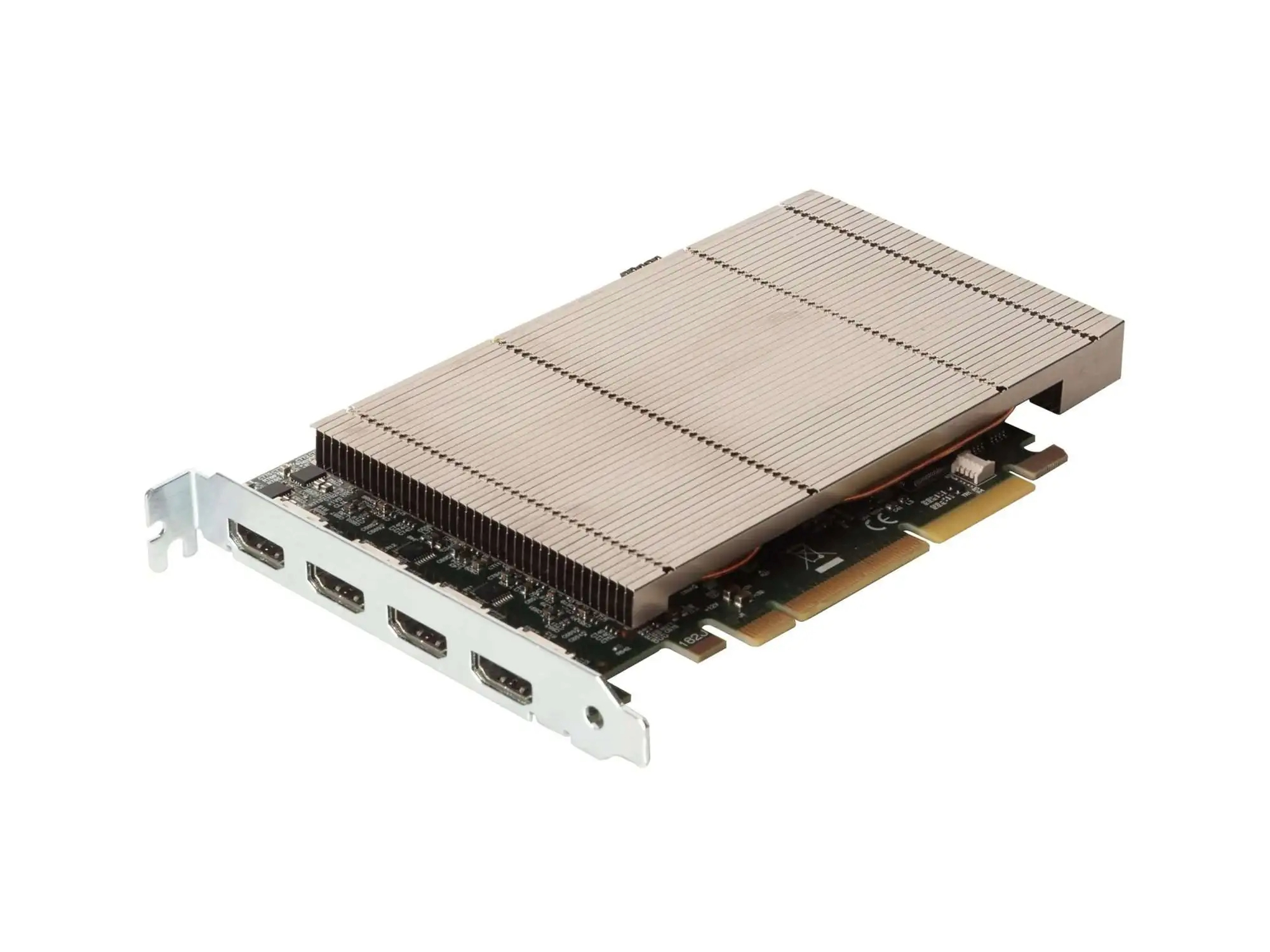

ChamSys MediaMaster HDMI Interface Card - 4 Input
Model: MEDIAMASTER-HDMI4
About: ChamSys MediaMaster HDMI Interface Card - 4 Input
Add multiple HDMI or DVI video input channels to MediaMaster VS2+ or VS4+ media servers running MediaMaster software, from a single card. The MediaMaster Vision SC-HD4 has four channels of HDMI 1.4, two supporting 297MHz (3840×2160 at 60 fps) and two supporting 165 MHz (1920×1080 at 60 fps), all operating independently of each other. This enables four separate video sources to be captured and controlled simultaneously.
Specifications
- Hardware
- Motherboard Connection Type: PCIe x8
- Input Connectors: 4 x HDMI
- Software
- Video Modes: HDMI 2.0, HDMI 1.4, HDMI 1.3
- Maximum Capture Resolution: 2x 3840x2160p @ 60 fps
- Update Rate: Captured frame rate will match the source providing PCle bandwidth is not exceeded.
- Pixel Transfer Formats:
- RGB Formats: RGB10 (10bit), 8-8-8 (24/32), 5-6-5, 5-5-5, 8-bit mono
- YUV Formats: Y410 (10bit 4:4:4), 4:2:2 Packed (YUY2, UYVY, YVYU)
- Frame Buffer Memory: 2GB
What's Included
- 1x VS4+ Rear Panel Adapter Plate
UPC: 781462231262
