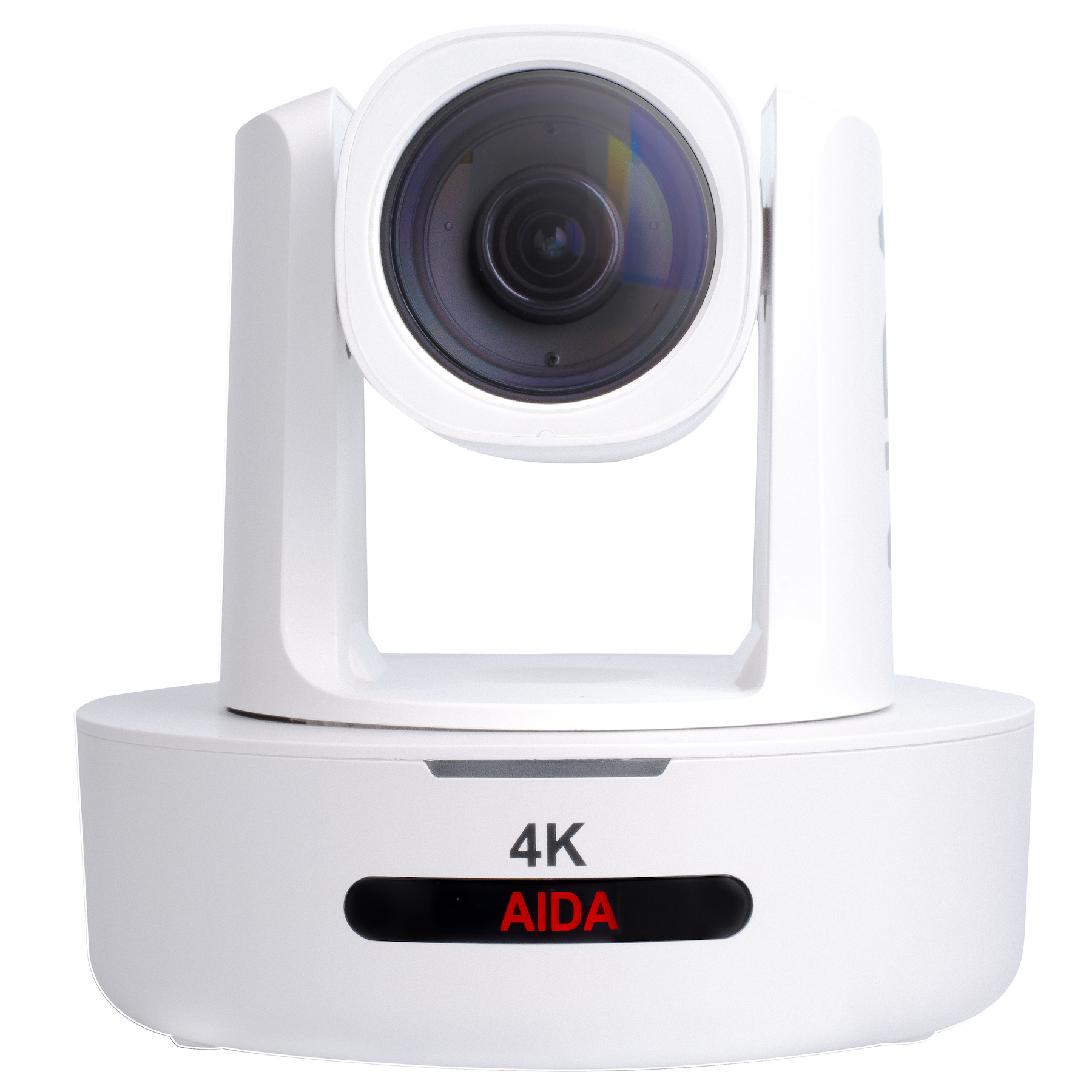

AIDA 4K NDI/IP/HDMI PTZ Camera 30X Zoom - White

About: AIDA 4K NDI/IP/HDMI PTZ Camera 30X Zoom - White

The PTZ4K-NDI-X30 allows you to reinvision your ideas into 4K. Coming packed with outputs via HDMI, NDI/|HX, and USB 3.0 at 4K60p, and being complemented by a gorgeous 4K 1/1.8” Sony CMOS Sensor, this camera outputs 4K 60p video effortlessly.

The PTZ4K-NDI-X30 features a 4K 30x optical zoom module capable of capturing video over 150 ft / 50M. The camera also includes your standard AIDA settings, like preset speeds, userfriendly webUI, and other IP protocols such as SRT, RTSP, RTMP, and direct to social media streaming. Have full control over each setting using VISCA over IP, SONY VISCA RS232, or NDI.

You know what they say, once you go 4K , you will never see Full-HD the same again!

Features

• NDI/|HX streaming capable for low latency video streaming and PTZ control over NDI/|HX Protocol.
• 4K SONY CMOS sensor for crystal clear video up to 60 frames, even in less than ideal video conditions.
• Advanced digital image processor provides vivid and detailed images with full access feature sets.
• Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
• Simultaneous 4K60p over HDMI and NDI/|HX/SRT/RTSP/RTMP!*
• Simultaneous 4K60p over HDMI and USB3.0*
  • (Disclaimer: USB and NDI |HX/IP streams will not output simultaneously.)
• 4K 30x Optical Zoom Module capable of capturing video up to 150ft/50 meters from your subject.
• 3.5mm Line-in for no audio/video delay over IP/NDI protocols.
• Built-in OSD controls for customizable image settings.
• Cost-effective 4K PTZ for entry-level studios looking for UHD quality.
• Comes in either a White or Black shell for further customization

Reimagine Streaming in 4K, AIDA Style

With the rise of 4K being the new streaming standard, we introduce the PTZ4K-NDI-X30. This powerful PTZ camera can output 4K60p through NDI |HX, HDMI, USB 3.0, and IP formats. Coming in with a line level audio for total embedment over all protocols, this camera is truly one of our masterpieces!

The future of streaming has arrived. Don’t miss out!

No-Hassle Integration

Never input NDI |HX codes when you purchase our PTZ’s! They come preinstalled!

Stable, Silent, and Deadly

The PTZ4K-NDI-X30 is supported by a gorgeous double arm that allows for AIDA’s unparalleled motion mechanism to stay silent!

Quick Specs

• NDI|HX & HDMI -  NDI 5 capable camera
• 4K60p Streaming -  2160p, 1080p, 1080i, 720p
• 30x Zoom -  4K 30x Optical Zoom
• Line in Audio -  Synced NDI|HX streaming

4K Imaging, Meet AIDA Imaging

The PTZ4K-NDI-X30 comes packed with a 4K Sony CMOS sensor, able to capture gorgeous 4K Imaging in any lighting scenario. You may never see Full-HD imaging the same!

Stay in Control, Always

This PTZ is no stranger to communication, boasting SONY VISCA over RS232, VISCA over IP, NDI , included IR remote, and web UI Control.

Almost like a Bird's Eye View

With a 4K 30x Optical Zoom module, you can capture imaging up to 150ft/30m. That’s so far you may need a spotting scope to see your production!

Never Forget, PoE+

To be honest, after using PoE+ you can never go back to DC12V.. (Unless you really have to) So enjoy 1 cable setups!

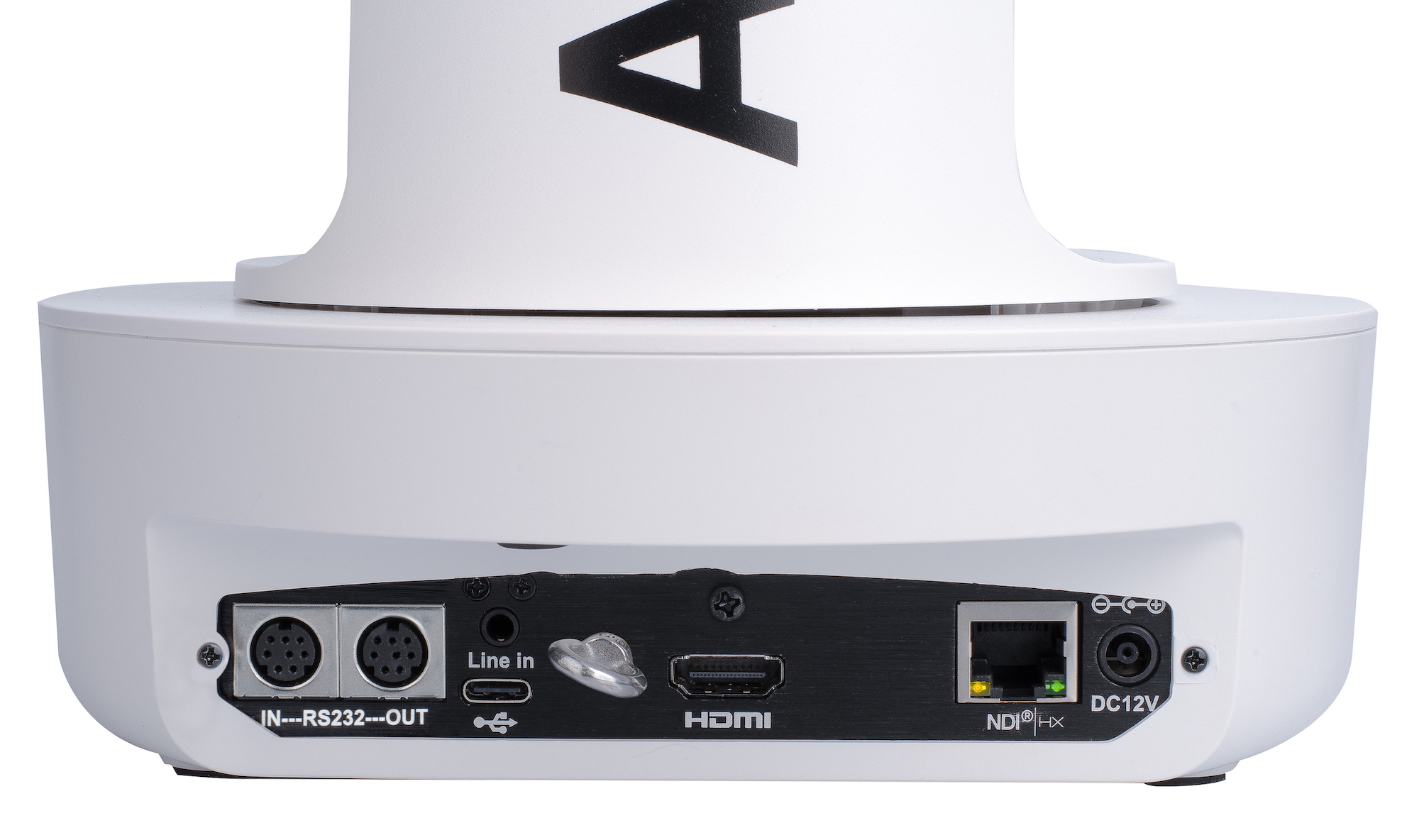

Outputs Galore

It isn’t an AIDA PTZ camera without simultaneous outputs! Enjoy HDMI, NDI |HX, and USB at the same time!*

• At 4K60P, only NDI |HX/IP and HDMI, or USB and HDMI can output simultaneously.

Two is Better than One

The PTZ4K-NDI-X30 comes with a black and white option, matching any aesthetic you throw at it!

Specifications

• VIDEO
  • Image Sensor -  1/1.8” Progressive CMOS
  • Effective Pixels -  Horizontal: 3840, Vertical: 2160
  • Pixel Size -  2.0 μm (H) x 2.0 μm (V)
  • Resolution -  2160, 1080p & 1080i: 3840x2160, 1920 x 1080
  • Resolution Rate
    • 2160 60p/59.94p/50p/30p/29.97p/25p
    • 24p/23.98p
    • 1080 60p/59.94p/50p/30p/29.97p/25p
    • 24p/23.98p
    • 1080 60i/59.94i/50i
    • 720 60p/59.94p/50p/30p/29.97p/25p
  • Output
    • HDMI
    • NDI/|HX / RTSP / RTMP / SRT
    • USB 3.0
  • Color Space -  4:2:2 (YCbCr) 10bit
  • Min. Illumination -  0.1Lux
• FUNCTION
  • White Balance -  Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor, Temperature
  • Focus -  Auto, Manual
  • Shutter Speed -  1 to 1/10,000 Sec.
• LENS
  • Lens -  30X 4K Optical Zoom
  • Focal Length -  6.91~214.64mm
  • Viewing Angle -  59Æ (wide) ~ 1.98Æ (tele)
• PTZ
  • Pan/Tilt Range -  Pan: 340Æ, Tilt: +90 to -30Æ
  • Pan/Tilt Speed -  Pan: 0Æ to +120Æ/s, Tilt: 0Æ to +80Æ/s
  • Presets
    • 128 Positions (via web)
    • 10 Positions (via remote)
• AUDIO
  • Input -  3.5mm TRS Stereo Audio Port
  • Sample Rate -  16/24/32 Bits
• PHYSICAL
  • Camera Control
    • Protocol: VISCA, VISCA ovear IP, NDI
    • Interface: RS-232C IN & OUT, RJ-45
  • Remote Controller
  • Operation Temp -  32ÆF - 104ÆF
  • Dimension -  197mm x 197m x 186mm / 7.75” x 7.75” x 7.3”
  • Weight -  2.1kg / 4.63 lbs
  • Power
    • 12VDC (+9 - +15VDC)
    • PoE+ (IEEE802.3at Standard Required)

What's in the Box

• PTZ4K-NDI-X30 - White
• Remote Controller
• Camera Mounting Bracket
• Power Adapter & Cable
• Safety Harness
