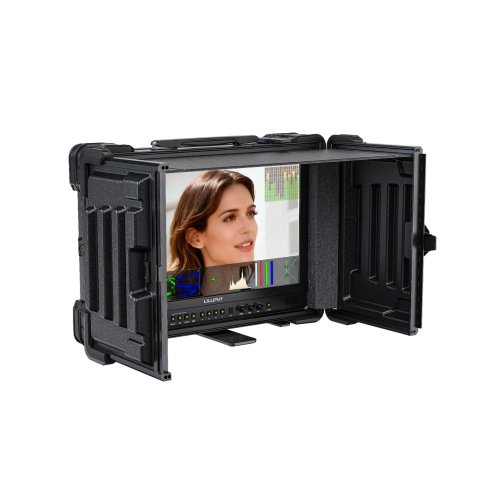

Lilliput UQ19 18.4in 8K 12G-SDI HDMI Monitor w/ Case - V-Mount

Name: Lilliput UQ19 18.4in 8K 12G-SDI HDMI Monitor w/ Case - V-Mount
Brand: Lilliput
SKU: 65087
Price: 4229.00 CAD
Availability: OutOfStock

Model: UQ19-VBP-CC

$4,229.00 CAD

Find it for Less? Let us Know.

Free Shipping!
Not In-Stock - Available to Order
Not yet reviewed

More models to choose from:

G-Mount, Case$4,229.00

G-Mount, NDI, Case$4,510.00

G-Mount, NDI$3,945.00

G-Mount$3,665.00

V-Mount, Case$4,229.00

V-Mount, NDI, Case$4,510.00

V-Mount, NDI$3,945.00

V-Mount$3,665.00

About: Lilliput UQ19 18.4in 8K 12G-SDI HDMI Monitor w/ Case - V-Mount

The Lilliput UQ19 is an 18.4 Inches 1000 nits high brightness 4K Production Monitor, featuring 8K 12G-SDI and 8K HDMI 2.1 input and loop outputs. The 10-Bit panel features 1000nits brightness and HDR, with BT709, BT.2020, and DCI-P3 colour compatibility.

Quad View
3D-LUT
HDR
Gammas
Remote Control
Audio vector
Carying Case

The inputs are up to 8K 12G-SDI and 8K HDMI 2.1, and SFP Fiber optic video (with looped outputs for the HDMI and SDI). It comes with a rich feature set, including 3D-LUT, waveform and quad-split - allowing four signals to be displayed simultaneously. It is a sturdy piece of portable monitoring kit, specially designed for either the professional photographer, videographer or film-maker.

Specifications

DISPLAY
- Panel: 18.4″
- Physical Resolution: 3840x2160
- Aspect Ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000:1
- Viewing Angle: 178°/178°（H/V)
- HDR: ST2084 300/1000/10000/HLG
- Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
- Look up Table(LUT) support: 3D LUT (.cube format)
- Calibration: Calibrate color space to Rec.709, DCI-P3, NTSC, BT.2020
VIDEO INPUT
- SDI: 4x 12G (Supported 8K-SDI Formats Quad Link)
- SFP: 1x 12G SFP+(Fiber module for optional)
- HDMI: 1x HDMI 2.1 (Supported 8K-HDMI Formats)
VIDEO LOOP OUTPUT
- SDI: 4x12G (Supported 8K-SDI Formats Quad Link)
- HDMI: 1xHDMI 2.1 (Supported 8K-HDMI Formats)
SUPPORTED FORMATS
- SDI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
AUDIO IN/OUT (48kHz PCM AUDIO)
- SDI: 16ch 48kHz 24-bit
- HDMI: 8ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 2
REMOTE CONTROL
- RS422: In/out
- GPI: 1
- LAN: 1
POWER
- Input Voltage: DC 15-24V
- Power Consumption: ≤56W (15V)
- Compatible Batteries: V-Lock
ENVIRONMENT
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
PHYSICAL
- Dimension (LxWxD): 17.8 x 12.14 x 1.99 inch (452 x 308.3 x 50.5mm)
  - w/ Case: 20.05 x 14.4 x 6.69 inch (509.3 x 365.7 x 170mm)
- Weight: 10.36 lbs (4.7kg)
  - w/ Case: 26.68 lbs (12.1kg)

UPC: 6950821604727

Reviews: Lilliput UQ19 18.4in 8K 12G-SDI HDMI Monitor w/ Case - V-Mount

There are currently no product reviews.

Write Review

Warranty: Lilliput UQ19 18.4in 8K 12G-SDI HDMI Monitor w/ Case - V-Mount

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

1 Year Limited Warranty

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered

For Quebec Residents - Disclosure under the Consumer Protection Act

In compliance with Bill 29, AVShop.ca and Lilliput do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
