Lilliput Q5 5.5in FHD Camera Monitor w/ SDI + HDMI
Model: Q5
About: Lilliput Q5 5.5in FHD Camera Monitor w/ SDI + HDMI
The Lilliput Q5 is a 5.5" FHD SDI Monitor
- 1920x1080, Full HD resolution,
- 450cd/m² high brightness,
- 1000:1 high contrast,
- Waveform PIP mode,
- Column (YRGB peak), time code,
- SDI and HDMI cross conversion,
- Metal housing, 20mm slim
Excellent Display

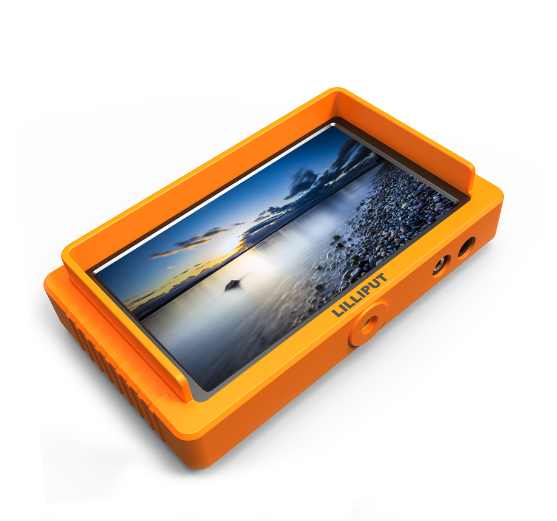

It features 5.5" 16:9 IPS panel with 1920x1080 full HD resolution (401 ppi), 1000:1 high contrast, 160° wide viewing angles, 450cd/m² high brightness, which offers outstanding viewing experience.
Durable Protection

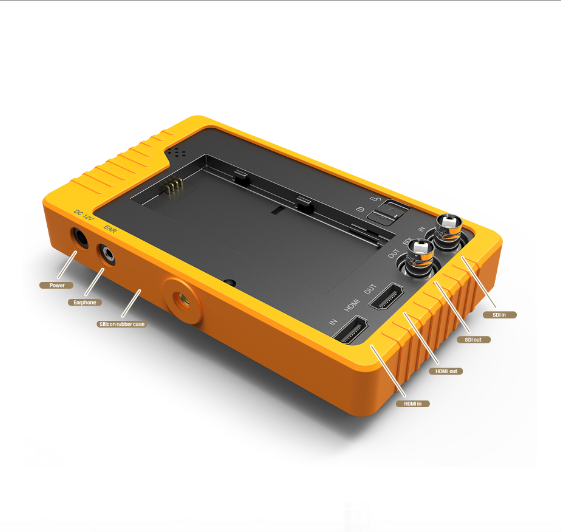

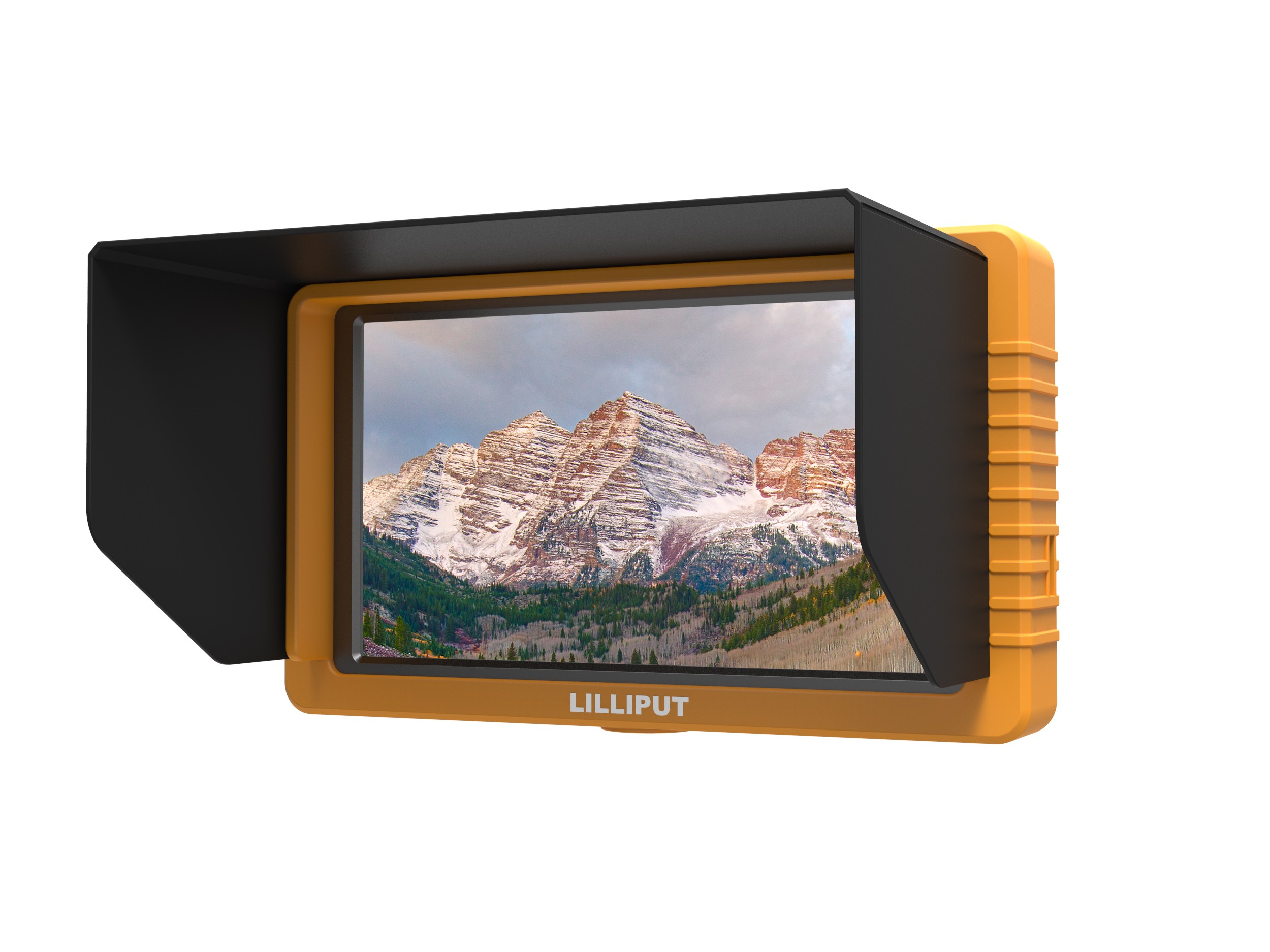

Metal housing with silicon rubber case, which provides perfect protection from shock and drop. It's also convenient for applications in complex outdoor environments when accompanying with sun shade.
Cross Conversion

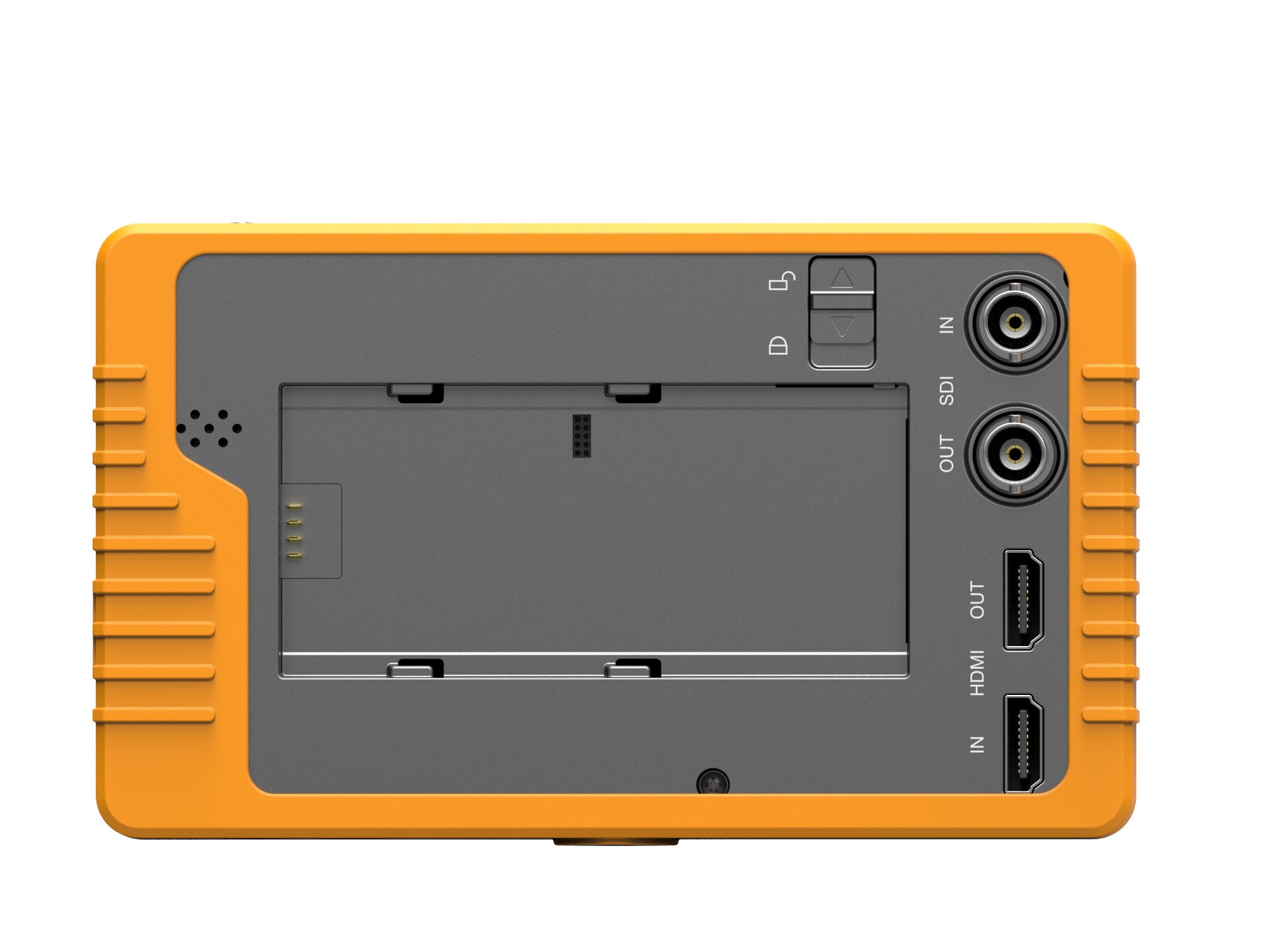

The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.
Advanced Functions

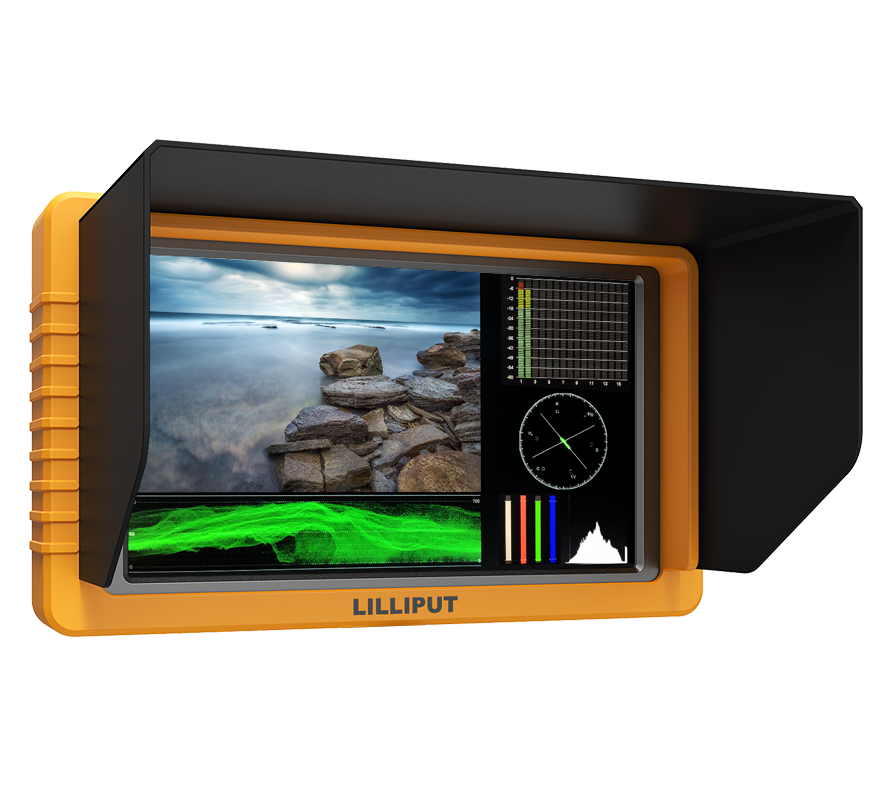

Lilliput creatively integrated column (YRGB), time code, waveform, vector scope and audio level meter into a field monitor. These assist users to accurately monitor while shooting, making and playing movies/videos.
Slim & Portable Design
Slim and lightweight design with hot shoe mounts, which are available for a 5.5" monitor fixed on the top of DSLR camera and camcorder
Additional Features:
- Time code
- Column (YRGB)
- Pixel zoom
- Vector scope
- Waveform
- Level meter
- Peaking
- False colour
- Histogram
- Exposure
- Check field
- Colour bar
- Image flip
- Pix to pix
|
DISPLAY
|
Display Screen | 5.5" IPS 8bits |
|---|---|---|
| Physical Resolution | 1920×1080 (401ppi) | |
| Aspect Ratio | 16:9 | |
| Brightness | 450cd/m2 | |
| Contrast | 1000:1 | |
| Viewing Angle | 160°/160°(H/V) | |
|
INPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
OUTPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
AUDIO
|
Speaker | 1 |
| Ear Phone Slot | 1 | |
|
SDI FORMAT
|
SMPTE-125M | 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M | 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M-AB | 1080p(60/59.94/50) | |
| -Level A & Level B | 720p(60/59.94/50/30/29.97/25/24/23.98) | |
| Level B 2x | 1080i(60/59.94/50) | |
| ITU-R BT.656 | 576i(50) | |
|
HDMI FORMAT
|
Full HD ~ SD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
|
POWER
|
Current | 1A |
| Input Voltage | DC 7-24V | |
| Battery Plate | F970 / QM91D / DU21 / LP-E6 | |
| Power Consumption | ≤12W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 154.5x90x20mm / 157.5x93x23mm (with case) |
| Weight |
320g / 340g (with case) |
UPC: 6950821601204
